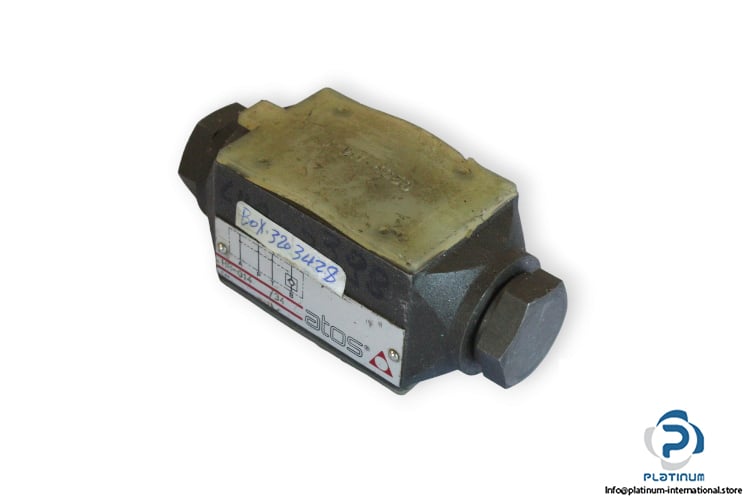

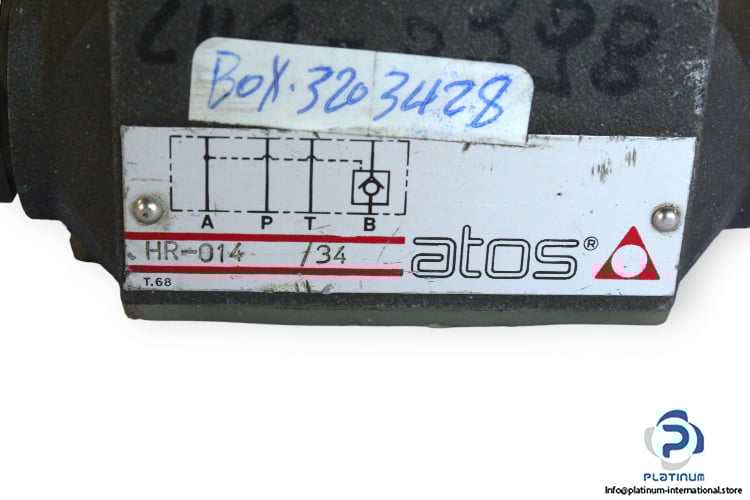

Atos HR-014/34 Modular Check Valve

The Atos HR-014/34 Modular Check Valve is a high-performance hydraulic component designed for reliable flow control and pressure retention in modular systems. With compact construction and precision engineering, it ensures efficient operation under demanding industrial conditions, making it suitable for hydraulic power units, presses, and automation circuits.

Manufacturer: Atos
Type: Modular Check Valve
Model: HR-014/34

Technical Information

Size: 06
Ambient Temperature Range: “30 / +70 °C
Maximum Operating Pressure: 350 bar
Maximum Flow Rate: 60 l/min
Hydraulic Fluid Temperature Range: “20 / +60 °C
Connection: Sub-plate
Dimensions: 110 x 45 x 40 mm
