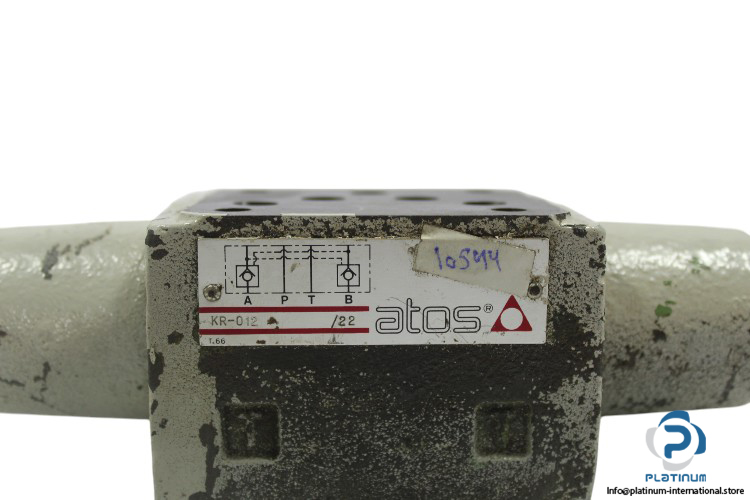

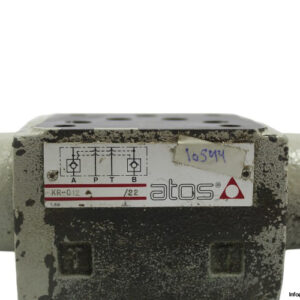

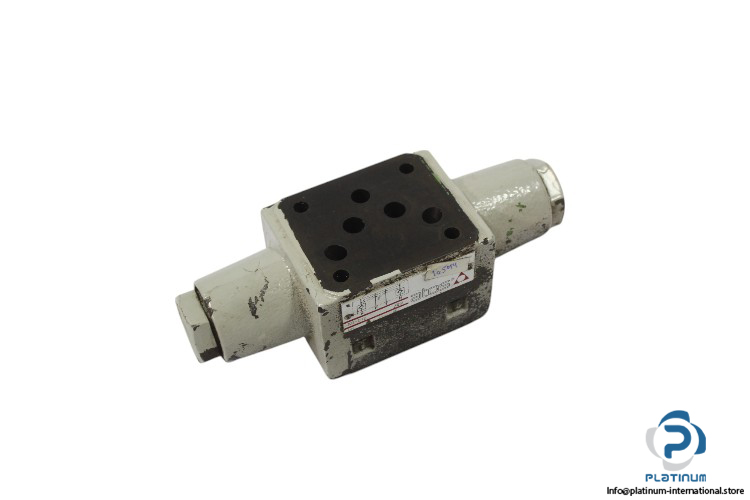

ATOS KR-012/22 Modular Check Valve
The ATOS KR-012/22 Modular Check Valve is designed for precise flow control in hydraulic systems. With a compact modular design and a high-pressure capacity of 315 bar, it ensures reliable performance in demanding industrial applications. This valve supports a maximum flow rate of 120 l/min and operates efficiently within a wide temperature and viscosity range.
- Manufacturer: ATOS
- Type: Modular Check Valve
- Model: KR-012/22
Technical Specifications
- Size: 10
- Ambient Temperature Range: “30 to +80 °C
- Maximum Operating Pressure: 315 bar
- Maximum Flow Rate: 120 l/min
- Hydraulic Fluid Temperature Range: “20 to +60 °C
- Viscosity Range: 15 / 100 mm²/s
- Connection: Sup-plate
