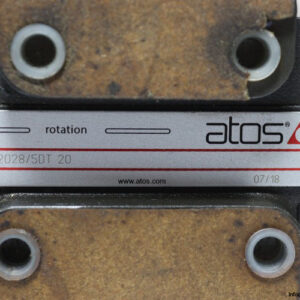

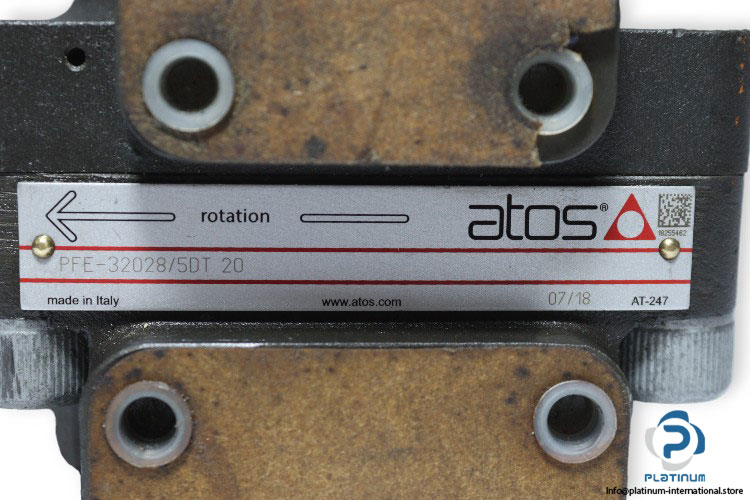

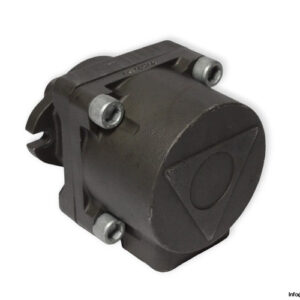

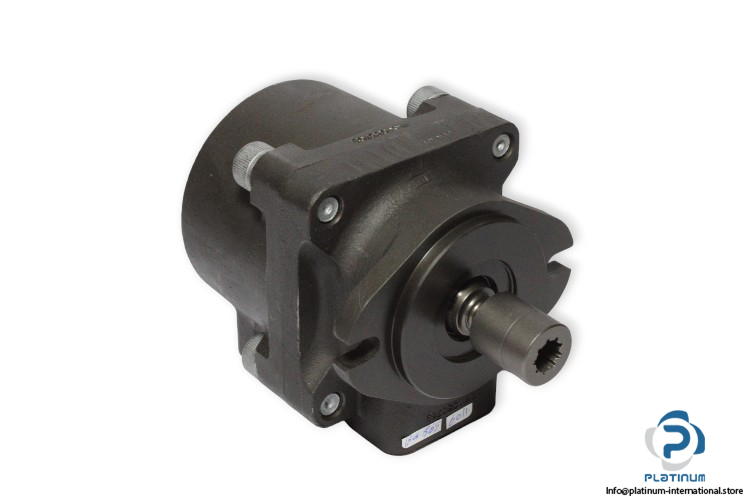

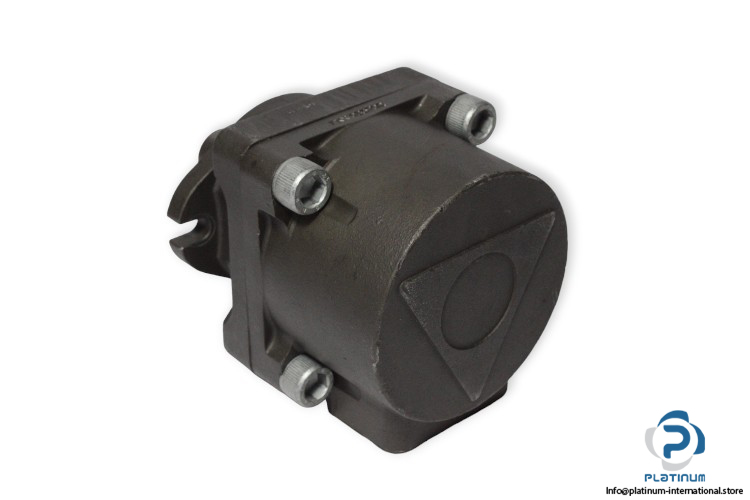

Manufacturer: ATOS
Type: Fixed Displacement Vane Pump
Model: PFE-32028/5DT20
Size: 32
Displacement: 28.1 cm3
Max Operating Pressure: 300 bar
Torque Maximum: 130 Nm
Shaft Diameter: 15 mm
Speed: 1200 … 2500 rpm
No. of Teeth: 9
Direction of rotation: Clockwise
Drive Shaft: for single and multiple pumps
Max. Flow Rate at 2600 rpm: 62 l/m
Max. Power Consumption at 2600 rpm,140 bar:16 KW
Range of Ambient Temperature: -20 … 80°C
Seals: NBR
