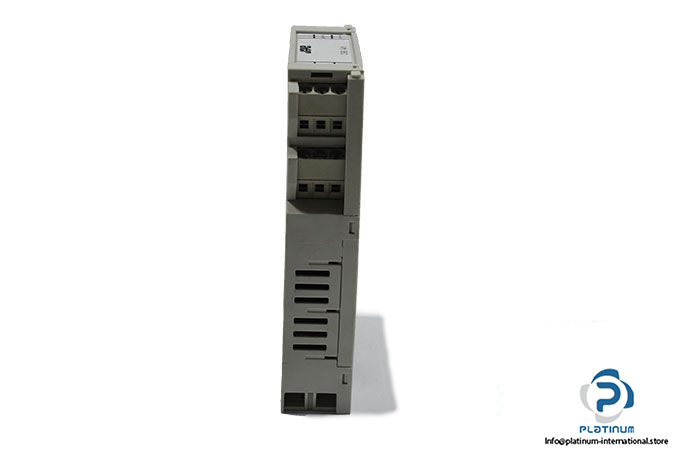

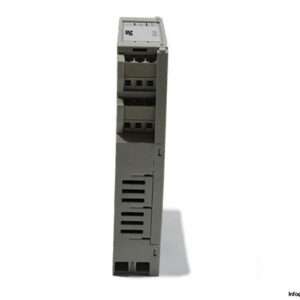

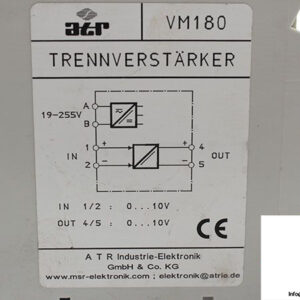

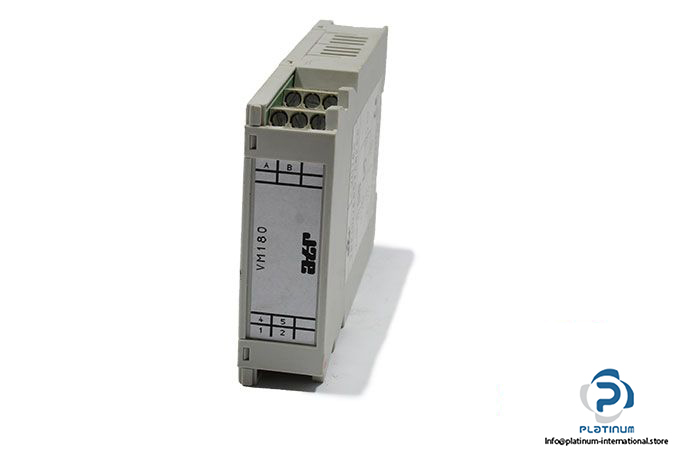

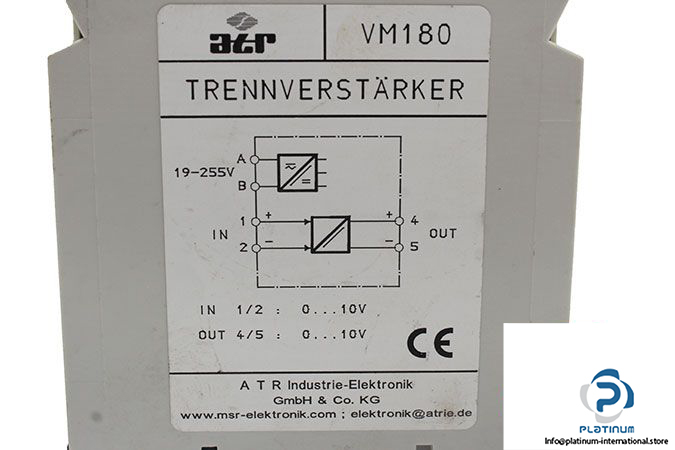

Manufacturer: ATR

Type: Isolating Amplifier

Model: VM 180

Supply Voltage: 19 … 255 VDC

Supply Voltage: 24 … 255 VAC / 48 … 62 Hz

Power Consumption: 1W … 2.5 VA

Voltage Input (10V): 0 … 10 V / RIN = 75 k

Voltage Input (100V): 0 … 100 V / RIN = 1 M

Voltage Input (60mV): 0 … 60 mV / RIN = 23 k

Overload Capacity: max. 50V

Current Input / Burden: 0(4)…20 mA / 100

Overload Capacity (Current Inputs): max. 50 mA

Voltage Output / Load: 0 … 10 V / max. 20 mA

Current Output / Burden: 0(4) … 20 mA / max. 500

Test Voltage: 2.5kV, 50Hz, 1min

Transmission Frequency: 25 Hz / 5 kHz

Ambient Temperature: 0 … 50°C

Connections: Screw-type terminals 2.5mm²

Housing Material: Insulating material grey

Dimensions: 22.5 X 112 X 75 mm

Weight: 0.11 Kg
