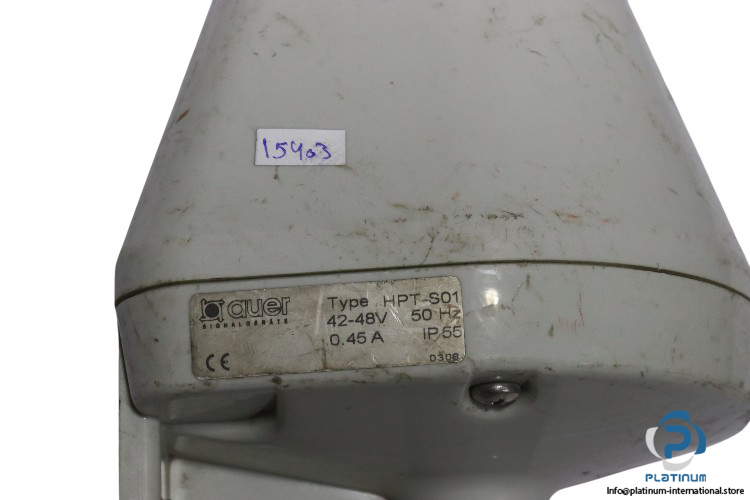

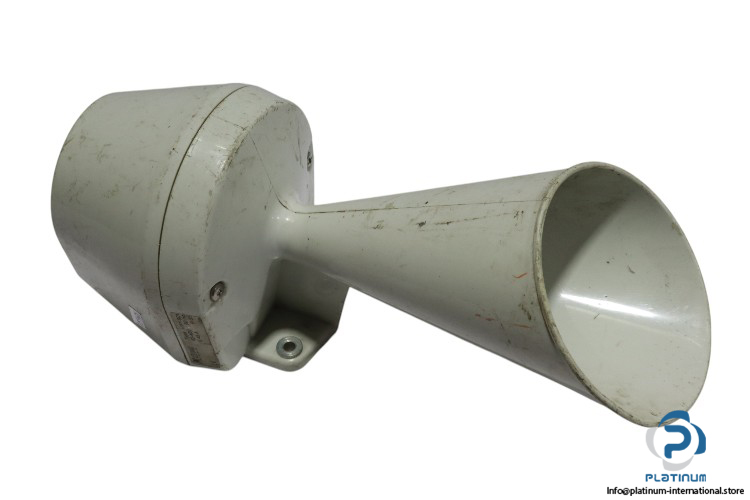

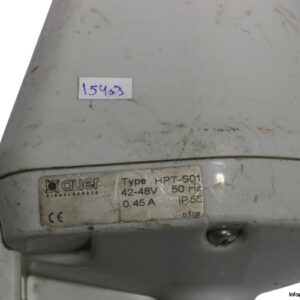

Auer HPT-S01 Signal Horn

The Auer HPT-S01 is a durable and weather-resistant signal horn designed for use in industrial and commercial environments where audible signaling is required. With flexible installation options”either surface-mounted or buried cable conduit”and a sound outlet designed for downward mounting, it ensures optimal sound projection and protection. Housed in grey ABS (RAL 7035), it supports cable entries from 7“10 mm and terminals up to 2.5 mm². The IP55-rated enclosure provides protection against dust and water, making it suitable for indoor and outdoor use in temperatures ranging from -20°C to +50°C.

• Manufacturer: Auer
• Type: Signal Horn
• Model: HPT-S01

Technical Specifications:

• Cable Conduit: Surface or buried
• Mounting Orientation: Sound outlet downwards
• Housing Material: ABS, Grey (RAL 7035)
• Terminal Capacity: Up to 2.5 mm²
• Cable Entry: 7“10 mm
• Protection Class: IP55
• Operating Temperature Range: -20 to +50 °C
