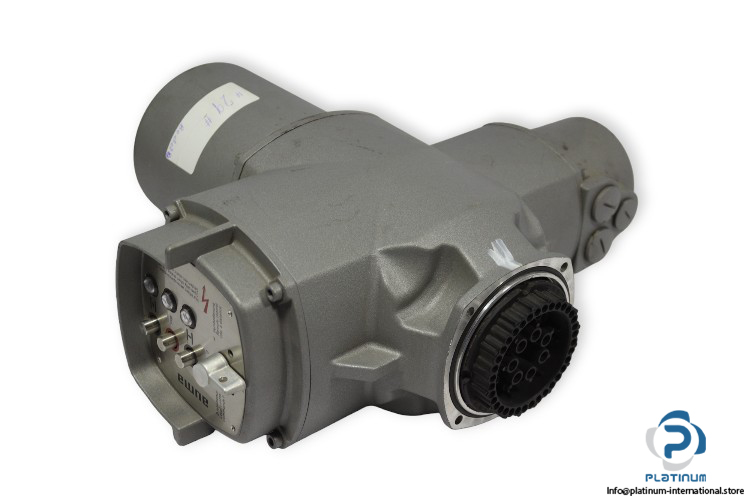

Auma AM 01.1 Actuator Controls

The Auma AM 01.1 is a high-performance actuator control unit designed for precise control and monitoring of electric actuators. With robust protection, wide temperature tolerance, and reliable analogue output, it is engineered for demanding industrial automation applications.

Manufacturer: Auma
Type: Actuator Controls
Model: AM 01.1
Part No.: 40021289

Technical information

• Type Designation Control: AM 01.1
• Actuator Controls Terminal Plan: TP 140 / 041
• Voltage: 400 V AC
• Power: 1.5 kW
• Analogue Output: 0/4 “ 20 mA
• Frequency: 50 Hz
• Protection Class: IP67
• Ambient Temperature Range: -25 / +60 °C
