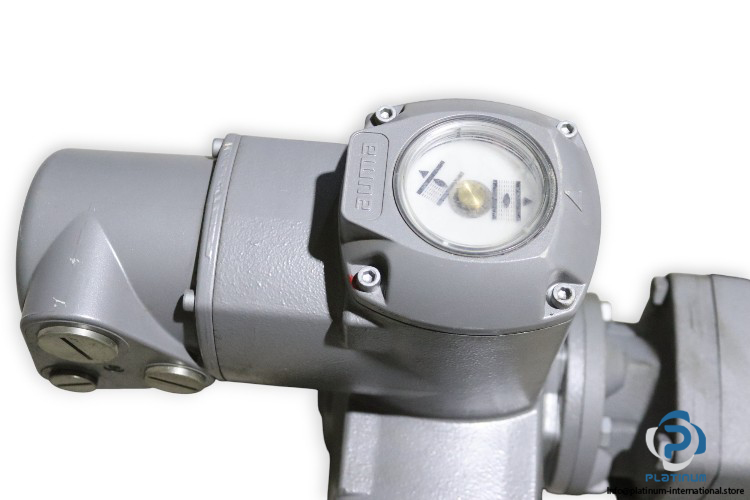

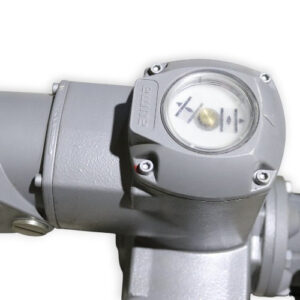

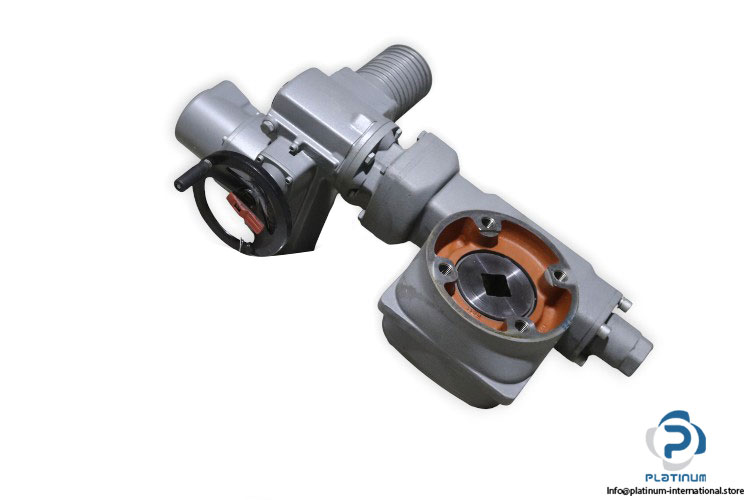

AUMA SA07.5-F10 Multi-Turn Actuator
The AUMA SA07.5-F10 is a high-performance multi-turn actuator designed to deliver reliable torque control and precise operation in demanding industrial environments. With its durable construction, wide torque range, and IP67 protection, this actuator provides long-term service life even under harsh conditions. It is ideally suited for valve automation, power plants, and mechanical systems requiring consistent and controlled motion.
Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SA07.5-F10
Kom No.: 13134989
Serial No.: 4409MD41749

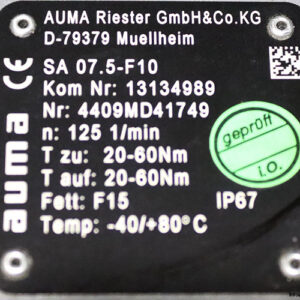

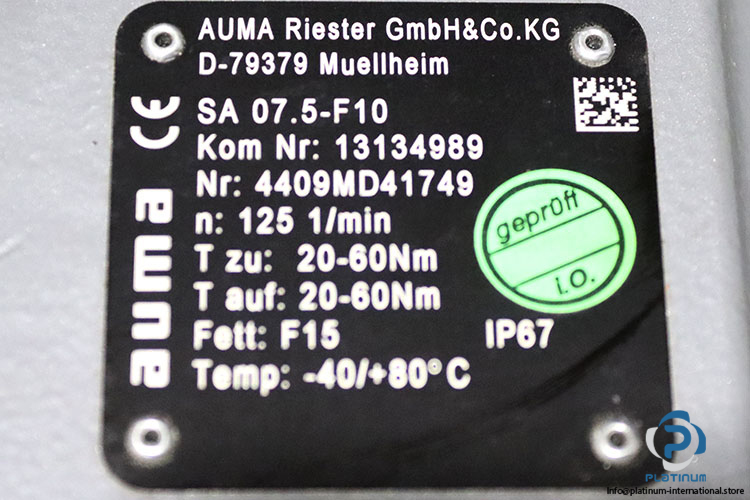

Actuator Technical Information
- Type and Size Actuator: SA 07.5
- Flange Size: F10
- Torque Range (Close): 20“60 Nm
- Torque Range (Open): 20“60 Nm
- Lubricant Type: EP0
- Rated Speed: 125 rpm
- Protection Class: IP67
- Temperature Range: -40 to 80 °C

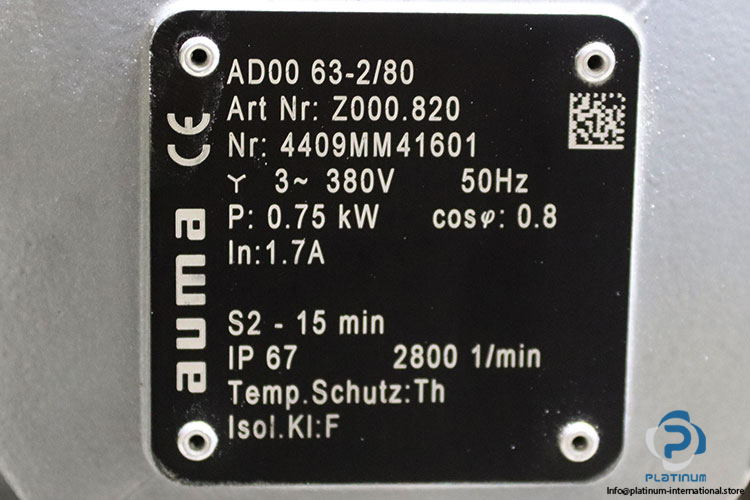

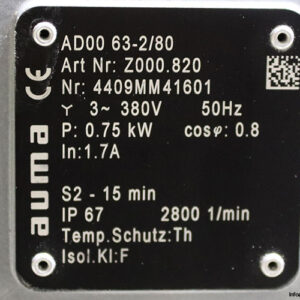

Attachment: AUMA AD00 63-2/80 AC Motor
- Art. Nr.: Z000.820
- Serial No.: 4409MM41601
- Mains Voltage: 380 V “ 3 Phase
- Rated Current: 1.7 A
- Mains Frequency: 50 Hz
- Rated Power: 0.75 kW
- Power Factor: 0.8
- Type of Duty: Short-Time Duty S2-15 min
- Speed: 2800 rpm
- Insulation Class: F
- Protection Class: IP67

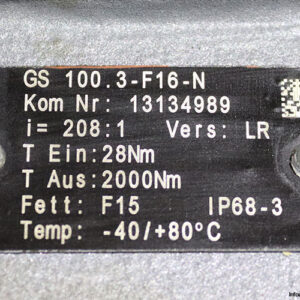

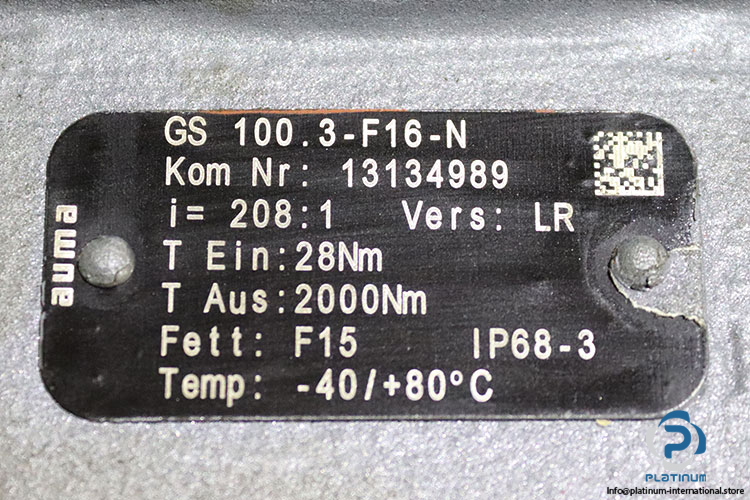

Attachment: AUMA GS 100.3-F16-N Motor
- Kom No.: 13134989
- Lubricant (Fett): F15
- Input Torque (T Ein): 28 Nm
- Output Torque (T Aus): 2000 Nm
- Ratio: 208:1
- Version: LR
- Protection Class: IP68-3
- Temperature Range: -40 to 80 °C
Engineered with precision and built for endurance, the AUMA SA07.5-F10 actuator with integrated AD00 AC motor and GS 100.3 gearbox delivers excellent control and mechanical strength. Its modular design allows easy integration into automated valve systems, offering superior positioning accuracy and operational safety. This actuator set ensures dependable performance across industries such as water treatment, power generation, oil and gas, and process automation.
