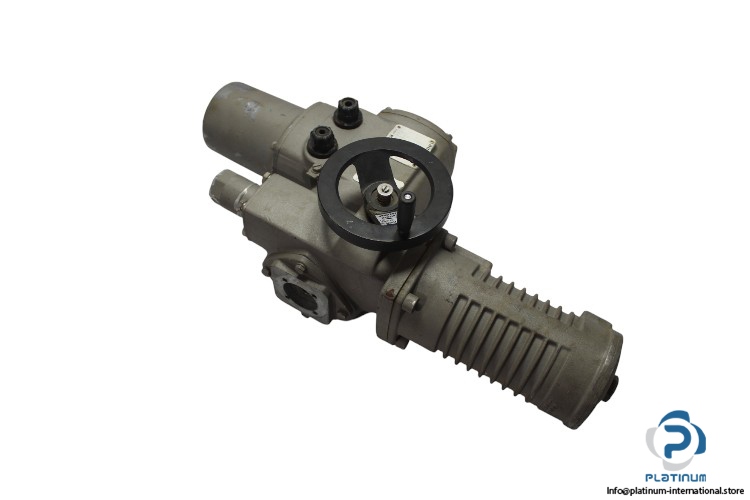

AUMA SGEX 05-F05 ELECTRIC ACTUATOR WITH SDE0 56-2/45K MOTOR
This Auma electric actuator with integrated SDE0 56-2/45K motor is engineered for precision control in demanding industrial environments. With torque output ranging from 100 to 150 Nm, IP67 protection, and a high-efficiency motor, it is ideal for valve automation in hazardous or remote installations.

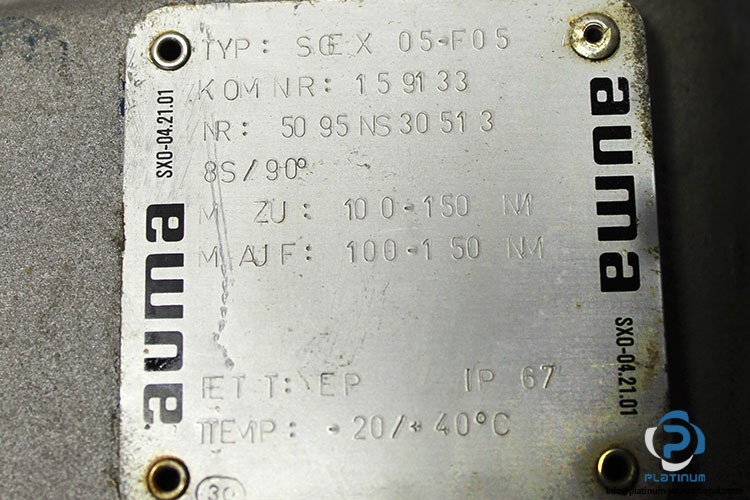

Manufacturer: Auma
Type: Electric Actuator
Model: SGEX 05-F05
KOM No.: 159133
Part No.: 50 95 NS 30 51 3
Code: 8S/90

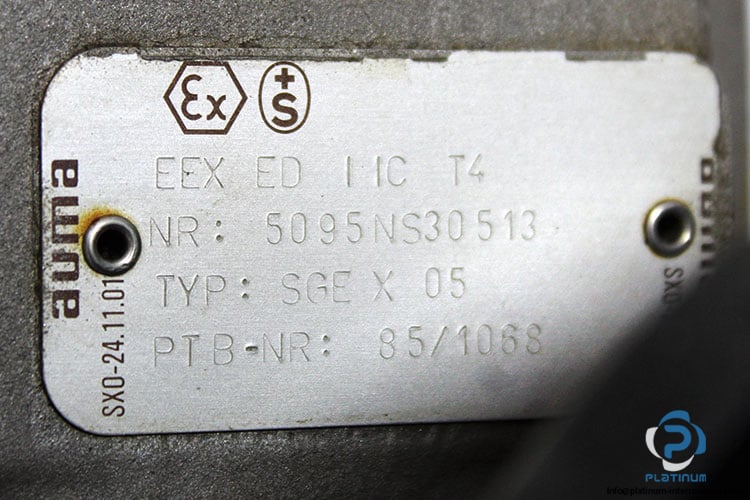

PTB-No.: 85/1068
Technical Information
- Torque ZU: 100 to 150 Nm
- Torque AU F: 100 to 150 Nm
- Temperature Range: -20 to 40 °C
- IP Rating: 67

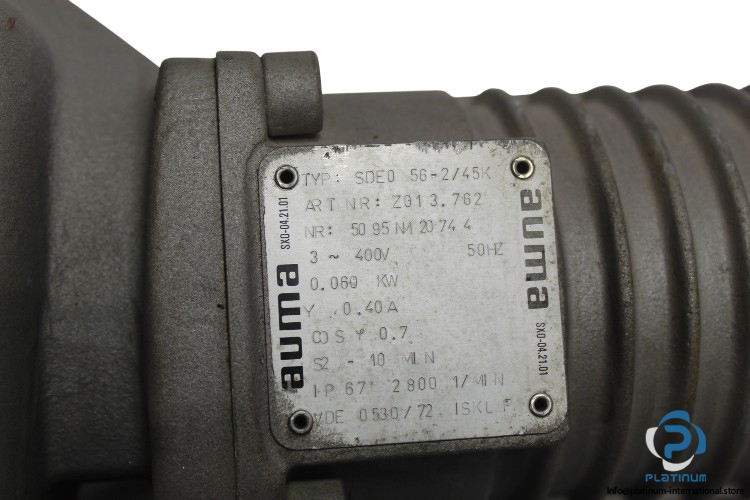

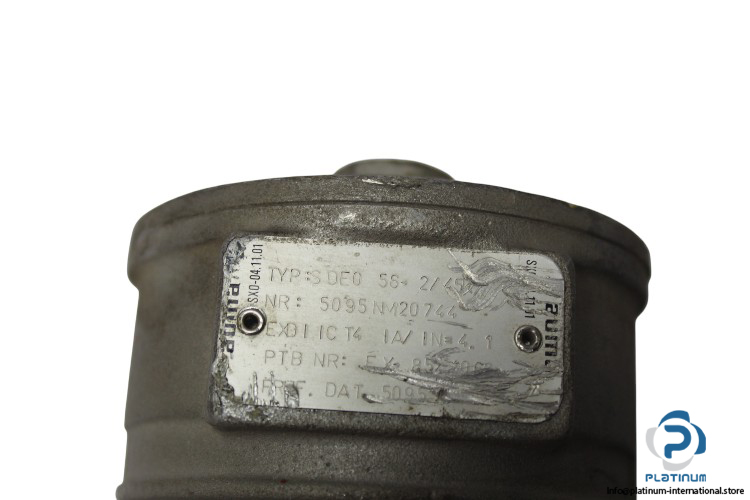

Motor Attachment: AUMA SDE0 56-2/45K
- Manufacturer: Auma
- Type: Motor
- Model: SDE0 56-2/45K
- Part No.: 5095 NM20744 / SXO-04.11.01
- ART NR: Z013.762
Motor Technical Data
- Current Ratio: 4.1
- Mains Voltage: 400 V
- Rated Current: 0.40 A
- Mains Frequency: 50 Hz
- Rated Power: 0.060 kW
- Power Factor: 0.7
- Type of Duty: S2
- Speed: 2800 rpm
- Insulation Class: F
