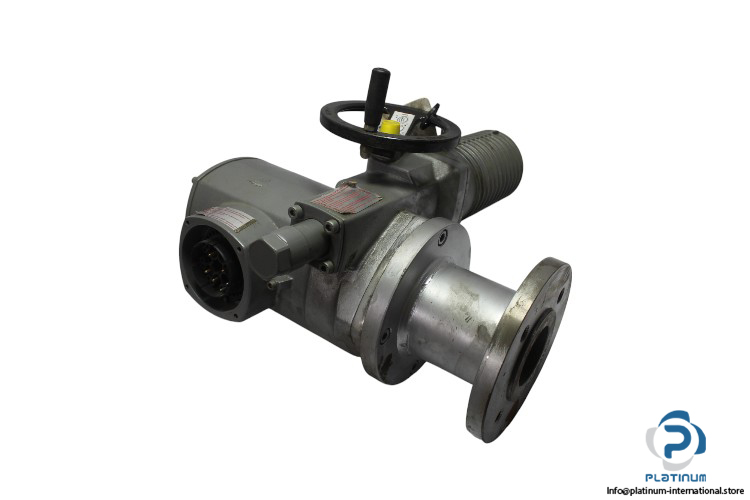

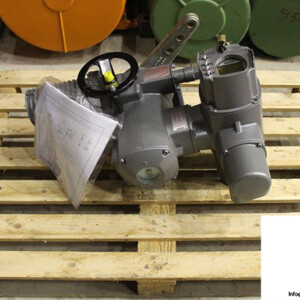

AUMA SGF 12.1-FUSS LEVER ACTUATOR WITH SD00 50-2/60 MOTOR
This high-performance lever actuator from Auma, model SGF 12.1-FUSS, is engineered for demanding automation and valve control applications. It comes fully equipped with the AUMA SD00 50-2/60 electric motor, offering precise torque management, robust environmental protection, and thermal safeguarding for consistent operation in industrial settings.
Manufacturer: Auma
Type: Lever Actuator
Model: SGF 12.1-FUSS
COM No.: 23051344
Part No.: 3114NS17935
Code: F.550279.1470

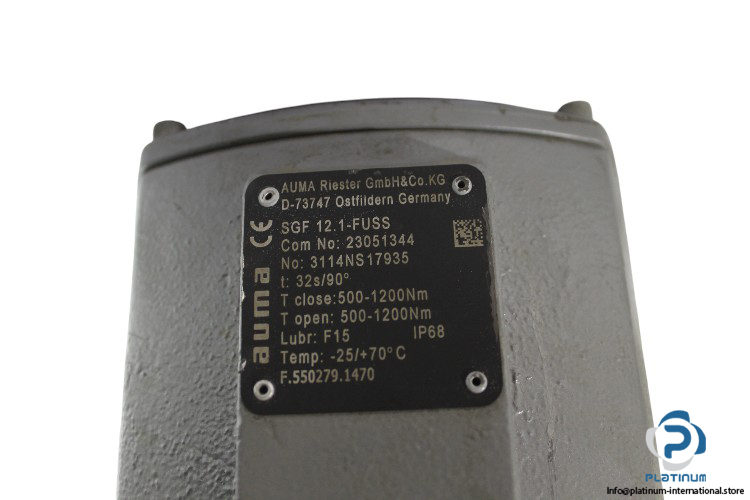

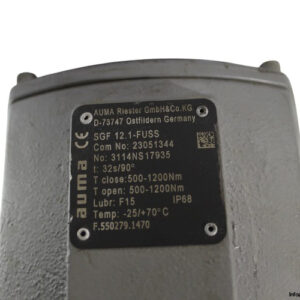

Technical Information
- Time: 32s/90°
- Torque Close: 500 TO 1200 Nm
- Torque Open: 500 TO 1200 Nm
- Temperature Range: -25°C to 70°C
- IP Rating: 68
- Lubricant: F15

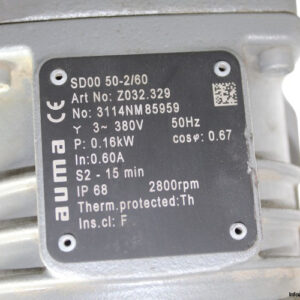

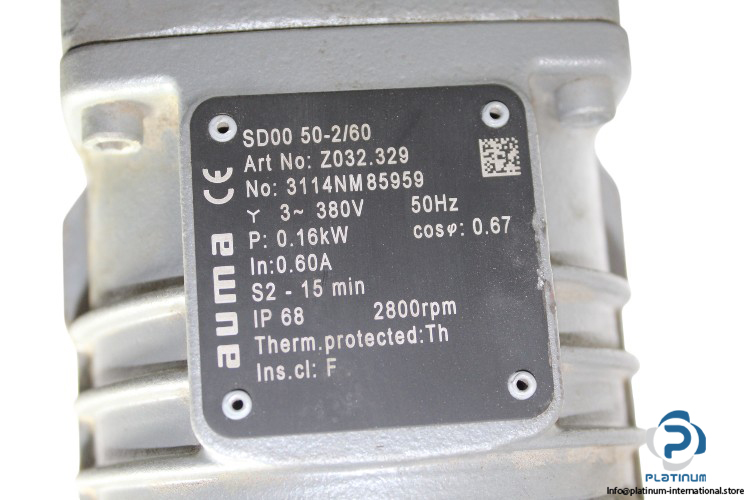

Attached Motor “ AUMA SD00 50-2/60
- Manufacturer: Auma
- Type: Motor
- Model: SD00 50-2/60
- Part No.: 3114NM85959
- ART NR: Z032.329
- Mains Voltage: 380 V
- Rated Current: 0.60 A
- Mains Frequency: 50 Hz
- Rated Power: 0.16 kW
- Power Factor: 0.67
- Type of Duty: S2 “ 15 min
- IP Protection: 68
- Speed: 2800 rpm
- Insulation Class: F
- Thermal Protection: Th
