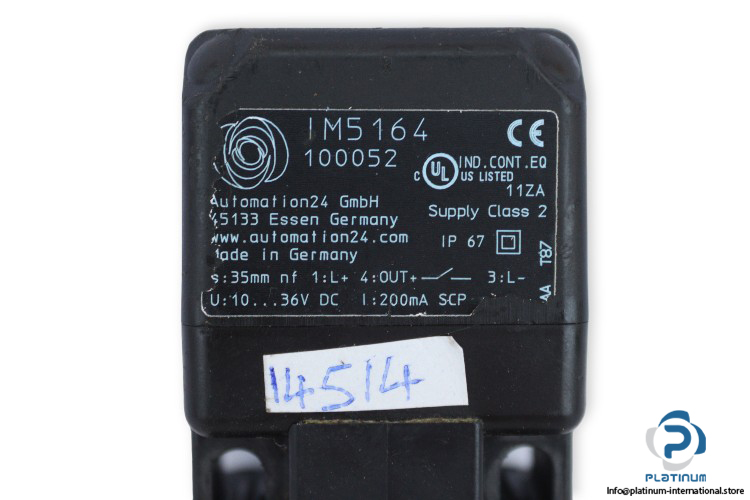

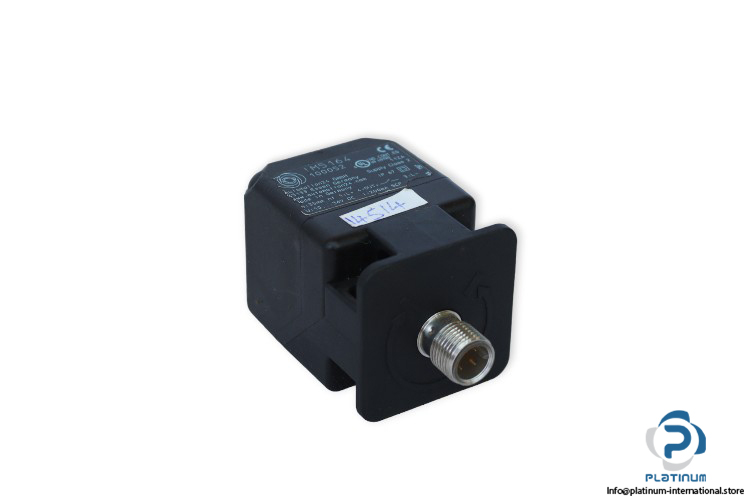

Manufacturer: AUTOMATION24
Type: Inductive Sensor
Model: IM5164
Part No.: 100052

Sensing Range: 35 mm
Rated Operating Voltage: 10 … 30 V DC
Rated Current Consumption: 200 mA
Contact: PNP Normally Open (NO)
Switching Frequency: 0.151 kHz
Sensor Design: Rectangular
Material: PA (Polyamide)
Electrical Connection: M12 Female Connector, 4-Pin, 12 mm
Protection Class: IP67
Ambient Temperature: -25 … 70 °C
Dimensions: 30 x 40 x 54 mm
