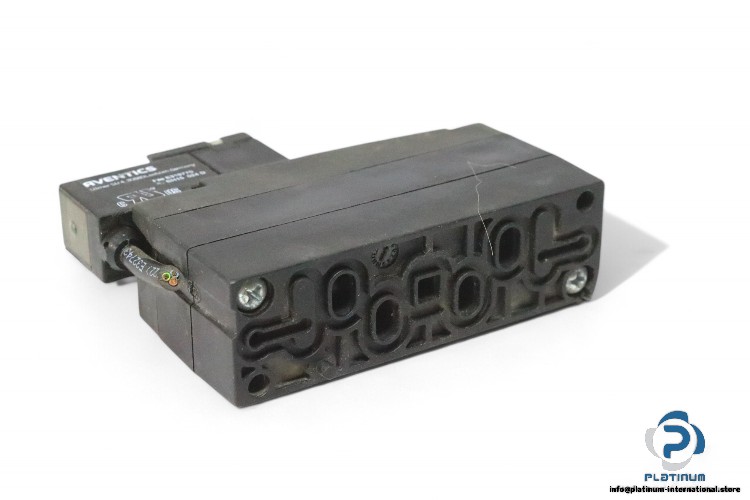

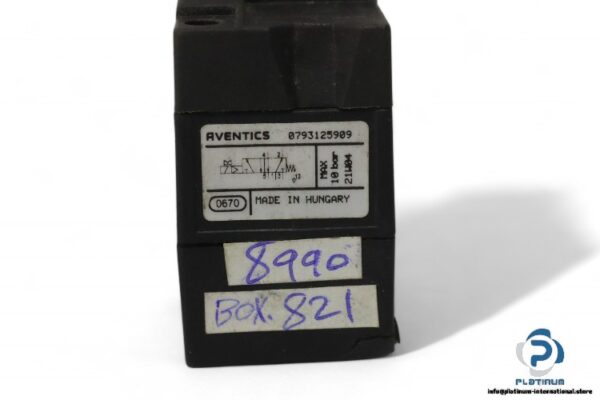

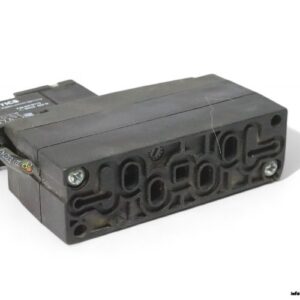

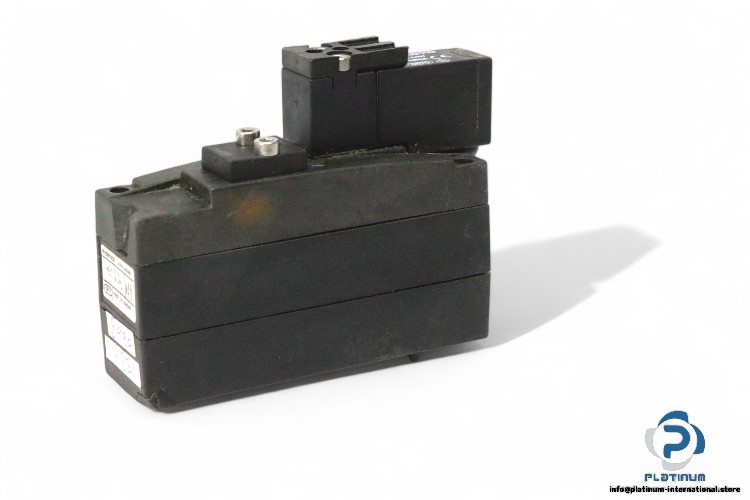

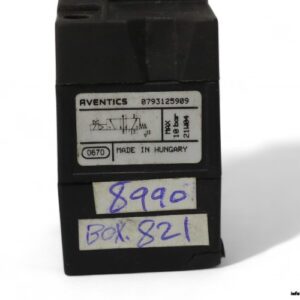

Directional Control Valve – Model: 0793125909
The Directional Control Valve (Model: 0793125909) by AVENTICS is designed for efficient air flow control in pneumatic systems. It is actuated electrically, operates under a maximum pressure of 10 bar, and uses air as the fluid medium. This valve is equipped with a Sup-based connection, allowing for easy integration with your pneumatic setup.
Technical Specifications (Directional Control Valve):
- Model: 0793125909
- Type of Actuation: Electrical
- Max. Operating Pressure: 10 bar
- Fluid: Air
- Connection: Sup-based

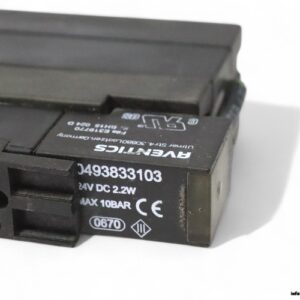

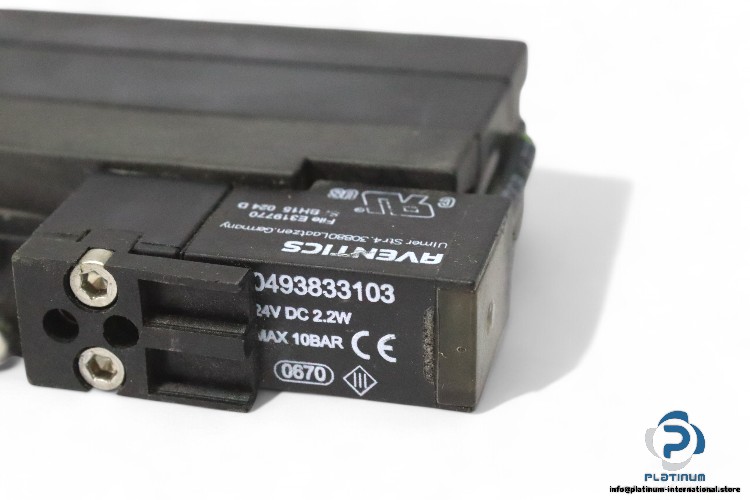

Attached Component: Electrical Coil
The Electrical Coil (Model: 0493833103) is designed to work with the directional control valve for electrical actuation. Manufactured by AVENTICS, this coil operates at 24 VDC and has a power consumption of 2.2 W, providing efficient control for the valve in your system.
Technical Specifications (Electrical Coil):
- Model: 0493833103
- Voltage: 24 VDC
- Power: 2.2 W
This combination of valve and coil provides reliable electrical actuation and flow control in various pneumatic applications.
