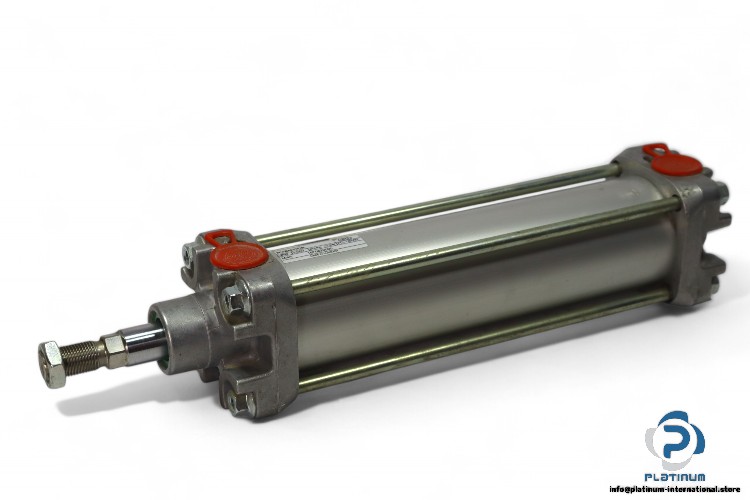

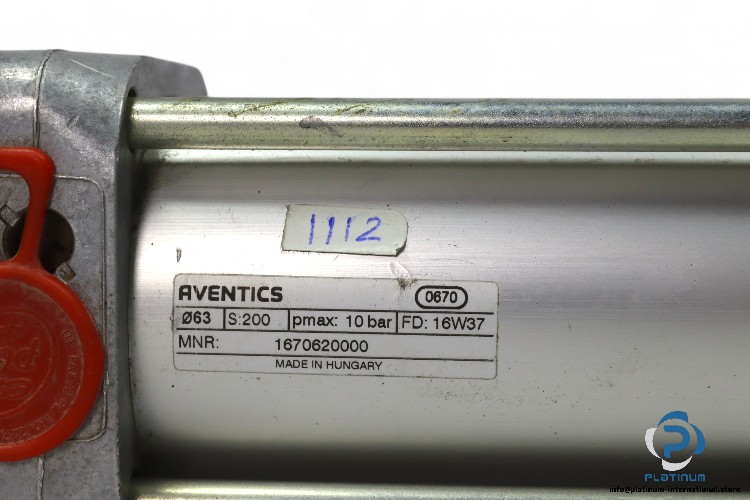

AVENTICS 1670620000 TIE ROD CYLINDER
The AVENTICS 1670620000 Tie Rod Cylinder is a reliable solution designed for industrial applications that require precision and high performance. With a 63 mm bore diameter and a 200 mm stroke, this double-acting cylinder ensures efficient operation under a variety of conditions.
Manufacturer: AVENTICS
Type: Tie rod cylinder
Model: 1670620000
Technical Specifications
- Bore Diameter: 63 mm
- Stroke: 200 mm
- Rod Diameter: 20 mm
- Mode of Operation: Double acting
- Shape: Square
- Rod Direction: One Side
- Piston Rod End: Male
- Port Size: G3/8
- Max Operating Pressure: 10 bar
