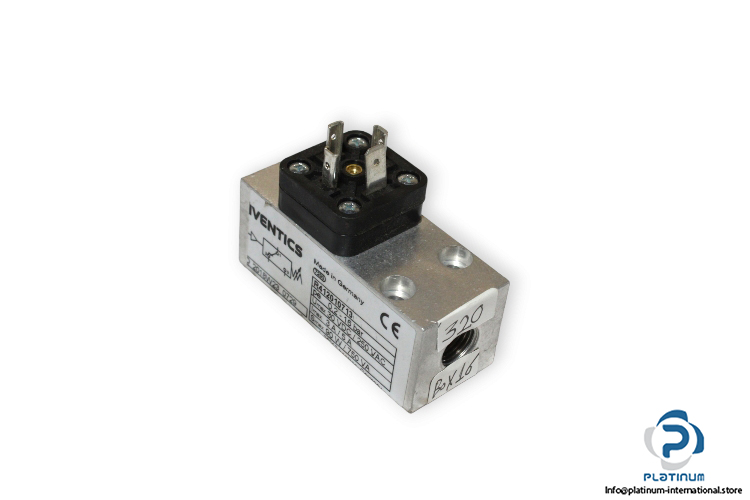

AVENTICS R412010713 PRESSURE SWITCH
The AVENTICS R412010713 is a high-quality pressure switch designed for use with hydraulic oil and compressed air. It provides reliable monitoring and switching functions across a wide pressure range, making it suitable for demanding industrial applications. Built with robust mechanical change-over contact, this unit ensures consistent performance in various operating conditions.
Manufacturer: AVENTICS
Type: Pressure Switch
Model: R412010713

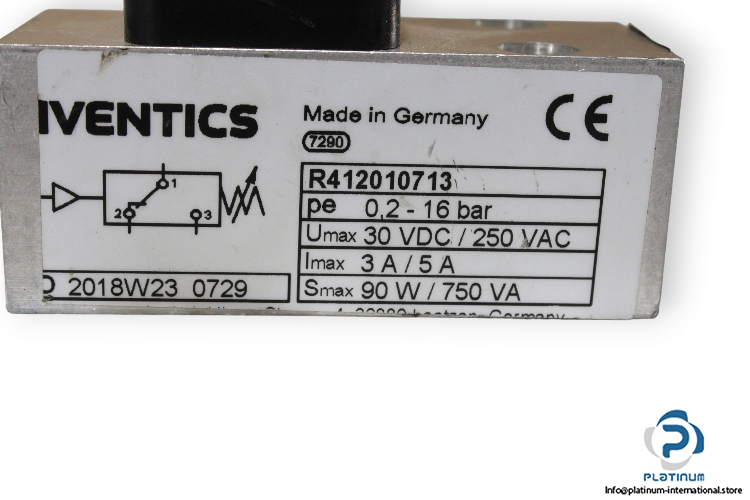

FD No.: 2018W23 0729
Technical Information
- Medium: Hydraulic oil, Compressed air
- Max. Voltage: 30 V DC, 250 V AC
- Max. Current: 3 A / 5 A
- Max. Power: 90 W / 750 VA
- Pressure Range: 0.2 / 16 bar
- Operating Pressure Max.: 16 bar
- Port Size: G ¼
- Contact Function: Change-over contact (mechanical)
