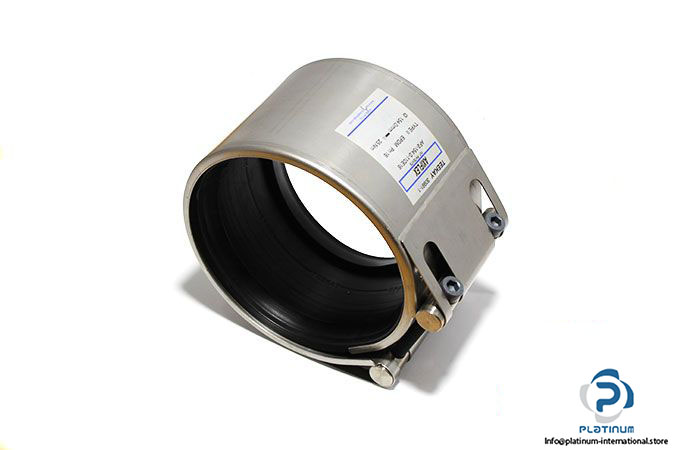

Manufacturer: TEEKAY

Type: PIPE COUPLING

Model: AXIFLEX blue

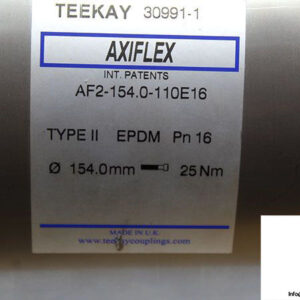

Order code: AF2-154.0-110E16

Pipe materials: metallic pipes primarily, also rigid plastics and GRP

Diameter: 154 mm, 151/156 tolerance

Working Pressure: PN 16

Materials:

• Gasket: EPDM
• Fasteners: AISI 316/ 316L
• Casing: AISI 304/DIN 1.4301

Screw size: 2 x 10 mm

Torque rate: 25 Nm

Temperature: -40°C … +100°C

Weight: approx. 1.8 kg
