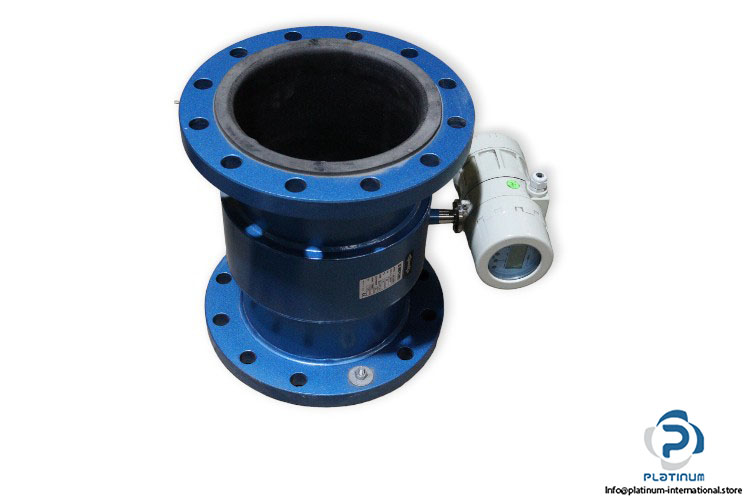

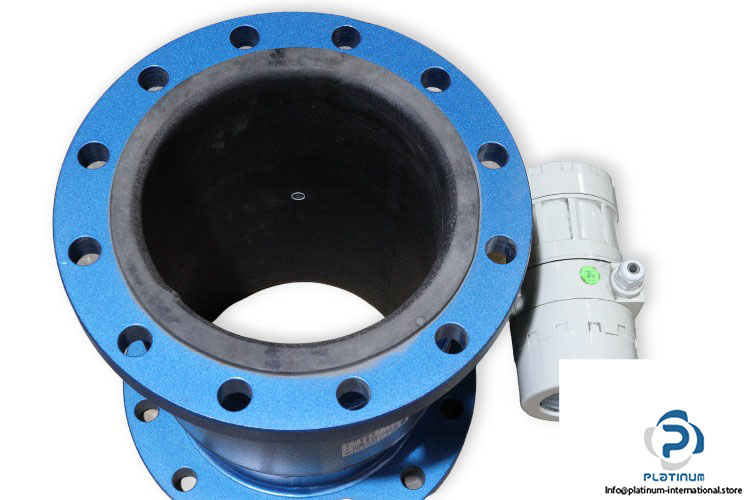

Manufacturer: B Meters
Type: Electromagnetic Flow Meters

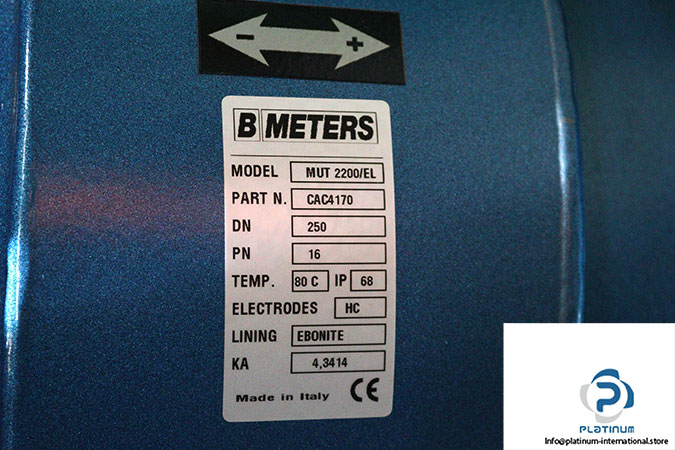

Model: Mut2200/El
MRN: Cac4170


Size: DN250/ 10″
Pressure: PN16
Material: Cast Iron
Temperature: 80 C
Electrodes: HC
Lining: Ebonite
K-Factor: 4,3414
Enclosure Protection [IP]: 68

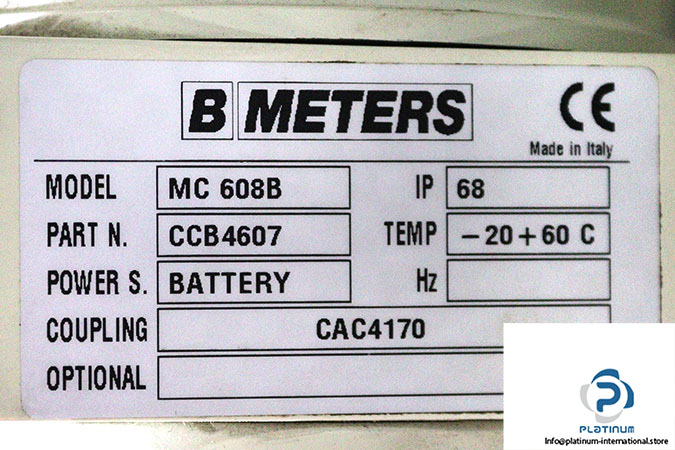

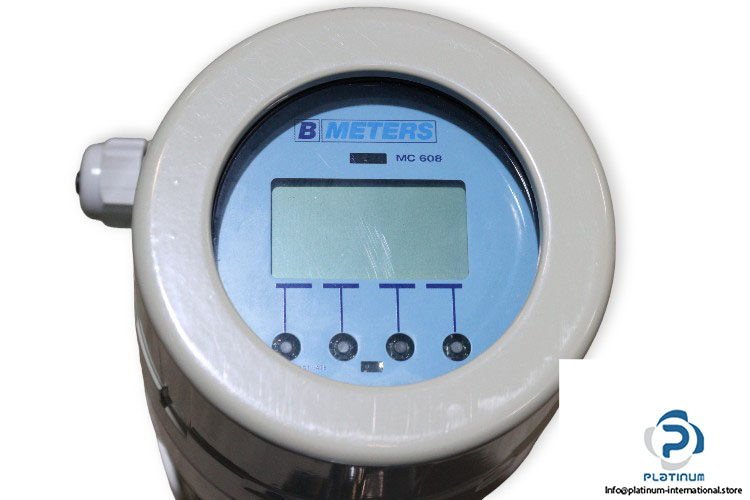

Attachment: B METERS MC 608B CONVERTER

Model: Mc 608b
Temperature: -20+60 C
Frequency: 50 – 60Hz
Enclosure Protection [IP]: 68
Coupling: Cac4170

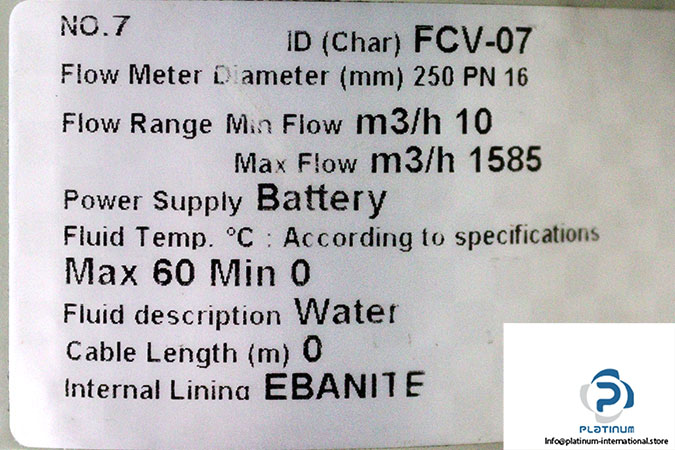

Flow Meter Diameter (Mm) : 250/Pn16
Flow Range Min Flow: 10 m3/h
Flow Range Max Flow: 1585 m3/h
Power Supply: Battery
Fluid Description: Water
Internal Lining: Ebonite
