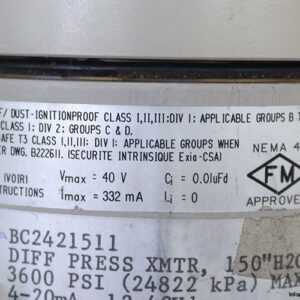

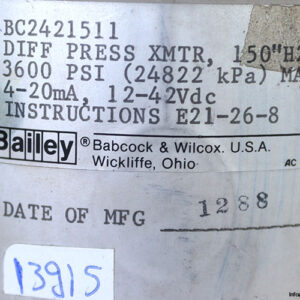

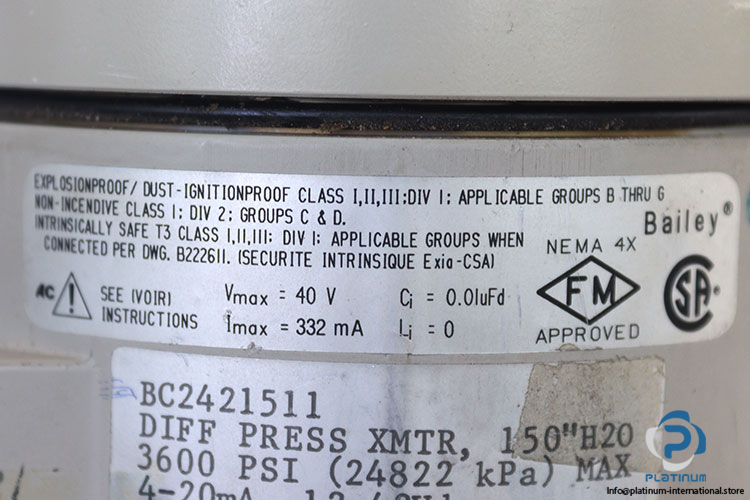

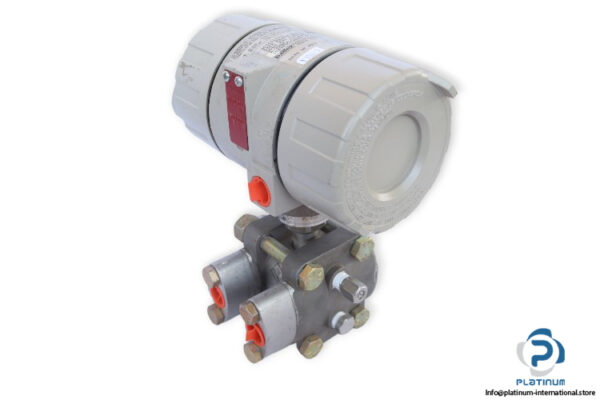

Manufacturer: BAILEY
Type: Differential Pressure Transmitter
Model: BC2421511
Description: Medium Range Differential Pressure
Static Pressure Limit Max.: 3600 PSI / 24822 kPa
Supply Voltage: 12 … 42 V DC
Input Current: 4 … 20 mA
Power Consumption: 23 mW
Span: 25 … 150 in H2O
Fill Fluid: Silicon Fluid
Material:
Diaphragm/Trim: 316L Stainless
Flange/Adapter/Plug: 316 Stainless
O-Ring/Bolting: VITON/Carbon Steel
Protection Class: IP66/67
Temperature: -30 … 80°C
Dimensions: 250.4 x 185.4 x 109.7 mm
