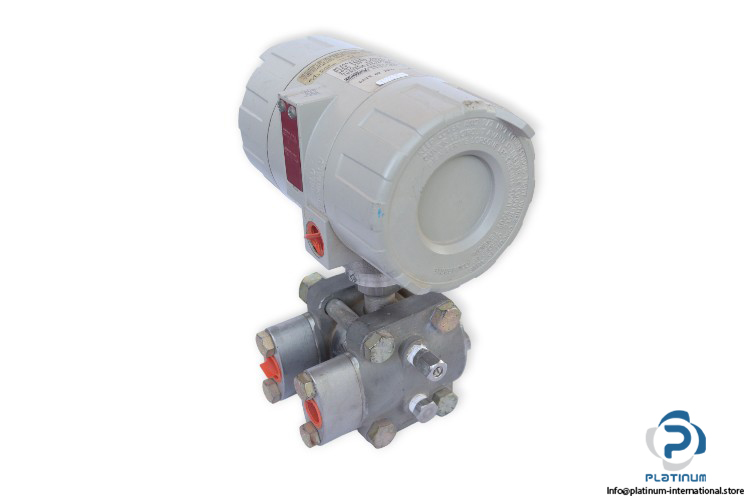

Manufacturer: BAILEY
Type: Differential Pressure Transmitter

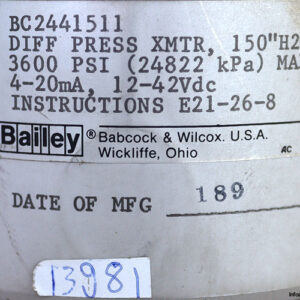

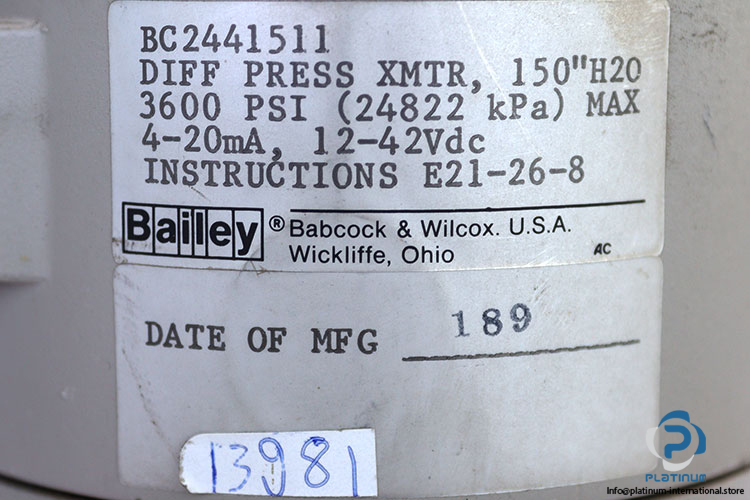

Model: BC2441511

Used for: Measuring Pressure and Differential Pressure of Liquids, Gases, and Vapors. Transmitters are Used in Oil Fields, Pipelines, Well Heads, and Other Solar or Battery Powered Systems Located in Remote Area.
Description: Medium Range Differential Pressure
Static Pressure Limit Max.: 3600 PSI / 24822 kPa
Supply Voltage: 12 … 42 V DC
Analog Output Current: 4 … 20 mA
Power Consumption: 23 mW
Span: 25 … 150 in. H₂O /
Fill Fluid: Silicon Fluid
Electrical Connection: 2 x ½ “NPT Conduit Holes
Material:
Diaphragm/Trim: MONEL 400
Flange/Adapter/Plug: 316 Stainless
O-Ring/Bolting: VITON/Carbon Steel

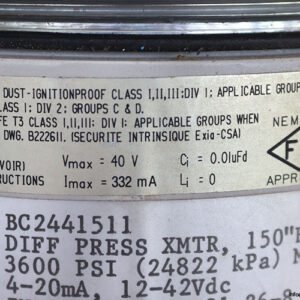

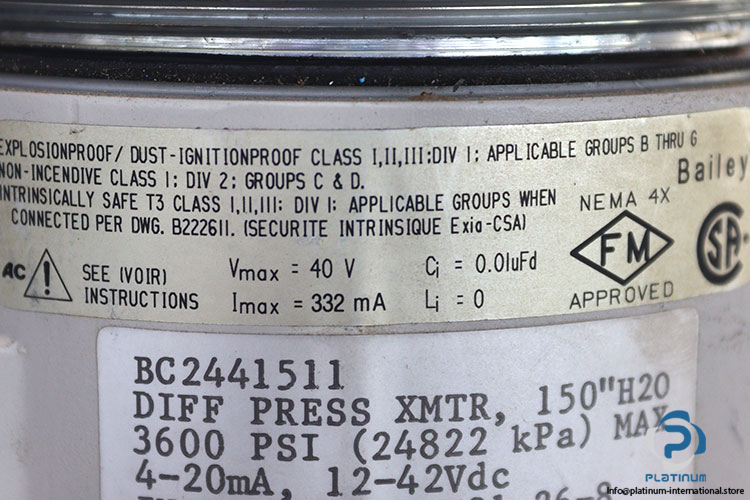

Protection Class: IP66/67
Temperature: -30 … 80 °C
Dimensions: 250.4 x 185.4 x 109.7 mm
