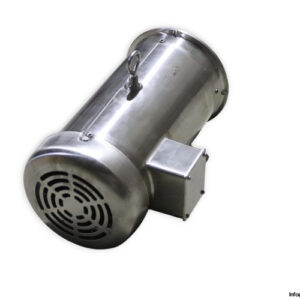

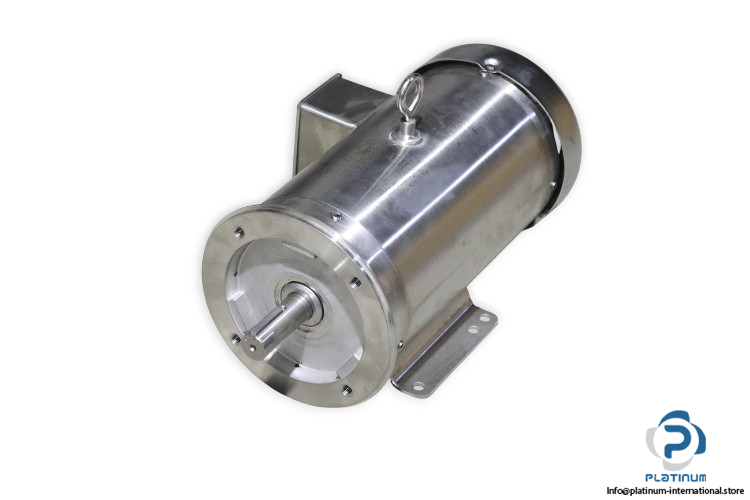

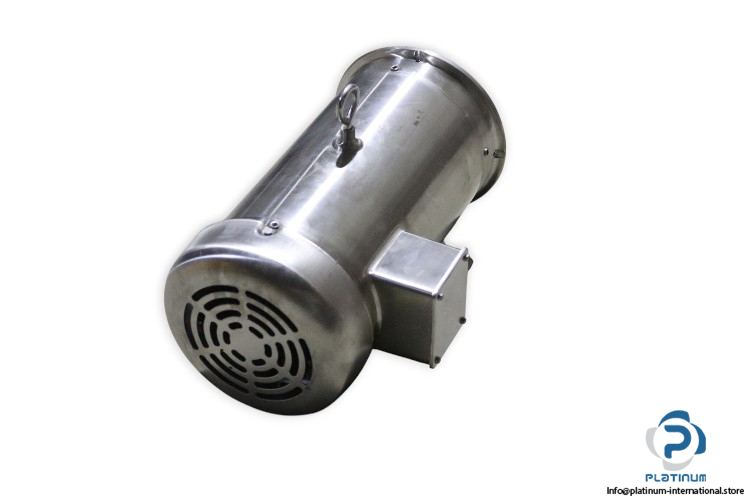

Baldor Electric CESSWDM3613T Stainless Steel Washdown Motor

The Baldor Electric CESSWDM3613T is a premium-grade stainless steel washdown motor engineered for demanding industrial environments. Designed to deliver exceptional durability and efficiency, it is ideal for food processing, pharmaceutical, and beverage industries where hygiene and reliability are crucial. The Totally Enclosed Fan Cooled (TEFC) design ensures protection against moisture, dust, and corrosion, making it perfect for continuous-duty washdown operations.

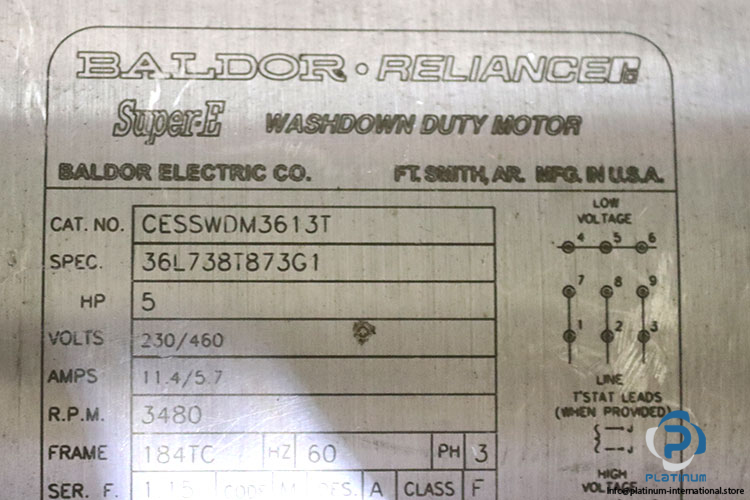

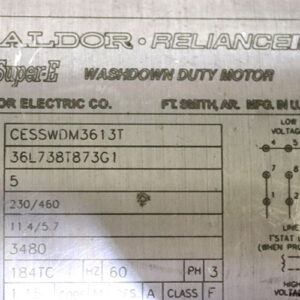

Manufacturer: Baldor Electric (Reliance Electric)
Type: Stainless Steel Washdown Motor
Model: CESSWDM3613T
Specification No.: 36L738T873G1
Serial No.: F1203153009

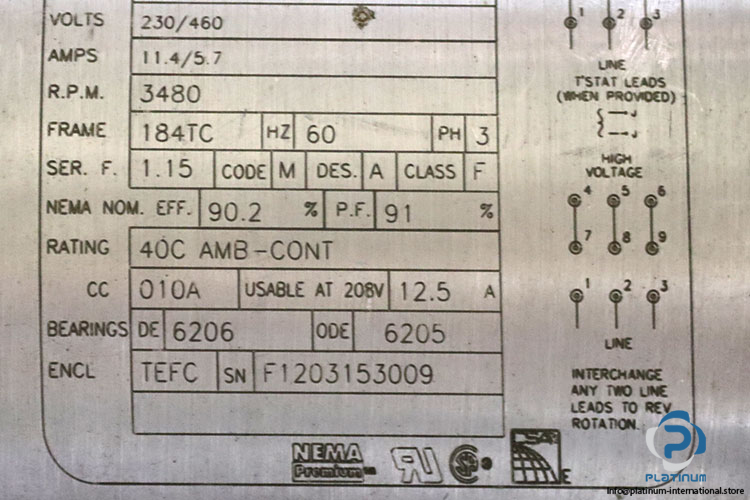

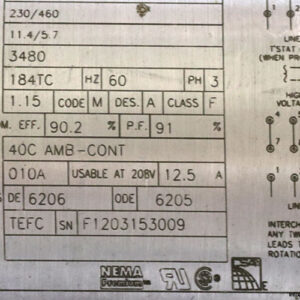

Technical Information

• Horsepower: 5 HP
• Voltage: 230 / 460 V
• Current: 11.4 / 5.7 A
• Power Factor: 91 %
• Rated Speed: 3480 rpm
• Synchronous Speed: 3600 rpm @ 60 Hz
• Frame Size: 184TC
• Frequency: 60 Hz
• Phase: 3-Phase
• Shaft Diameter: 1.125 in (28.575 mm)
• Service Factor: 1.15
• Code: M
• Design: A
• Insulation Class: F
• Motor Lead Quantity/Wire Size: 9 @ 16 AWG
• Motor Lead Termination: Flying Leads
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• NEMA Nominal Efficiency: 90.2 %
• Ambient Rating: 40 °C Continuous
• Bearings: DE 6206 / ODE 6205
• Usable at: 208 V (12.5 A)
• Frame Material: Stainless Steel
• Agency Approvals: NEMA PREMIUM, UR, CSA
• Motor Standards: NEMA

This stainless steel motor provides excellent resistance to corrosion and contaminants, ensuring long service life even in harsh conditions. With high efficiency and robust performance, it supports cost-effective energy usage while maintaining powerful torque and speed consistency. Ideal for conveyor systems, mixers, and washdown zones requiring high sanitation standards.
