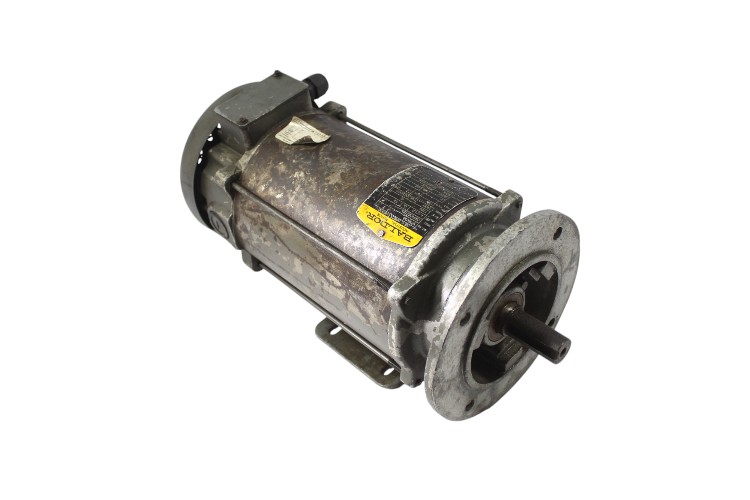

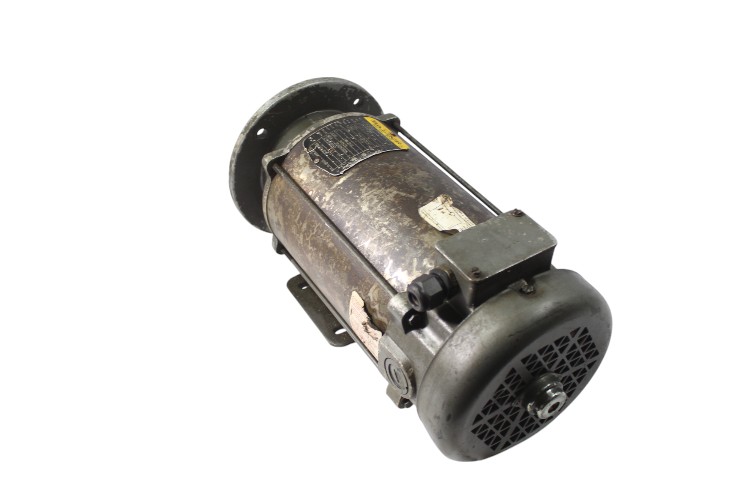

BALDOR VP3575D DC Motor

The BALDOR VP3575D DC Motor is a high-performance industrial motor designed for precision and efficiency in demanding applications. With a durable steel frame, IP54 protection, and Class F insulation, this motor ensures reliable operation under various environmental conditions. It delivers a rated power of 1.1/1.5 kW/hp at 180 V and 1750 rpm, making it ideal for applications requiring consistent speed and power.

• Manufacturer: BALDOR
• Type: DC Motor
• Model: VP3575D

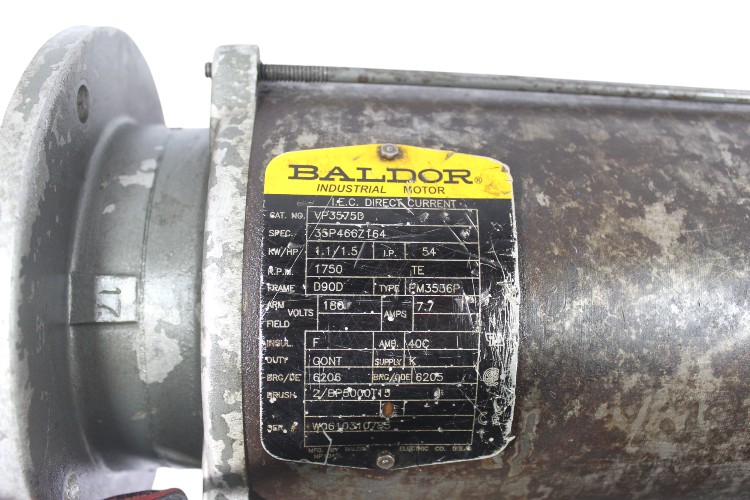

Technical Specifications

• Frame Size: D90D
• Frame Material: Steel
• Rated Voltage: 180 V
• Rated Speed: 1750 rpm
• Rated Power: 1.1 / 1.5 kW/hp
• Rated Current: 7.7 A
• Insulation Class: F
• Ambient Temperature: 40°C
• Protection Class: IP54
• Mounting Arrangement: B35
