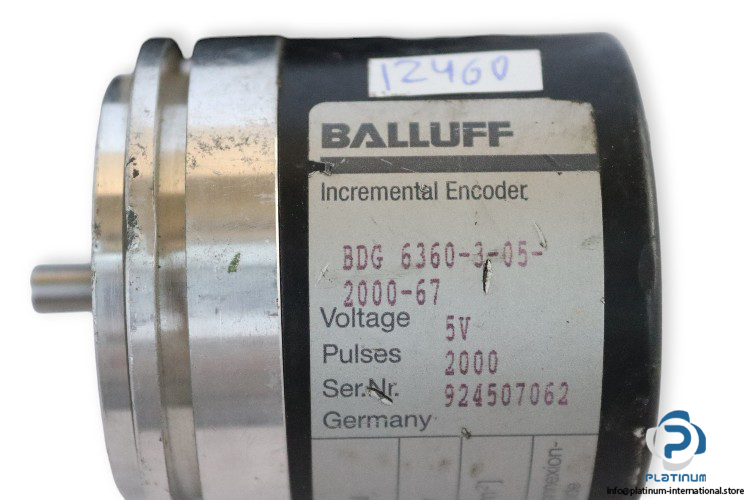

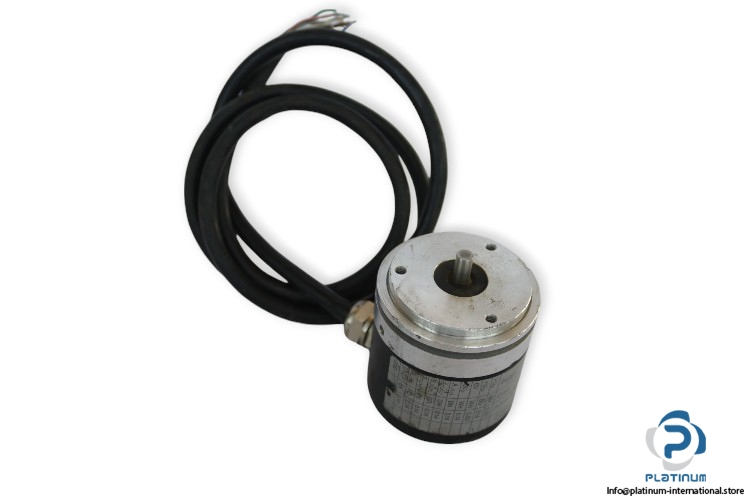

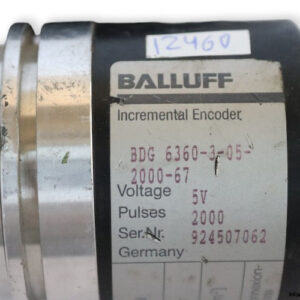

BALLUFF BDG 6360305200067 INCREMENTAL ENCODER

The Balluff BDG 6360305200067 from the 6360 series is a high-precision incremental encoder engineered for reliable performance in automation and industrial applications. With robust stainless-steel construction and IP64 protection, it ensures long-term durability in challenging environments.

Manufacturer: BALLUFF
Type: Incremental Encoder
Model: BDG 6360305200067
Series: 6360
Serial No.: 924507062

Technical Information

• Power Supply: 5 V
• Consumption Current: 100 mA max.
• Principle of Operation: Incremental
• Shaft Type: Solid Shaft
• Scan Frequency: 300 kHz
• Resolution: 2000 ppr
• Operating Speed: 10000 rpm max.
• Shaft Diameter: 6 mm
• Protection Degree: IP64
• Shaft Material: Stainless Steel
• Working Temperature: 0 / +80°C
