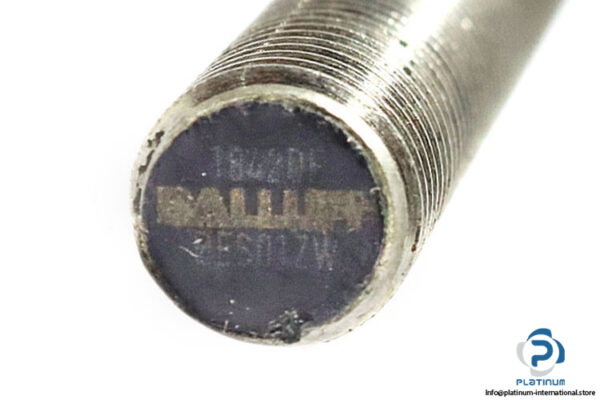

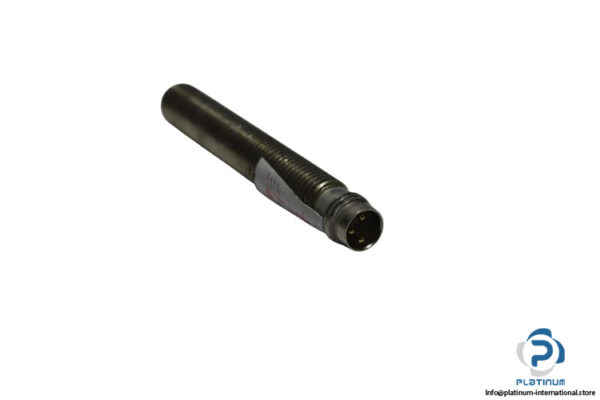

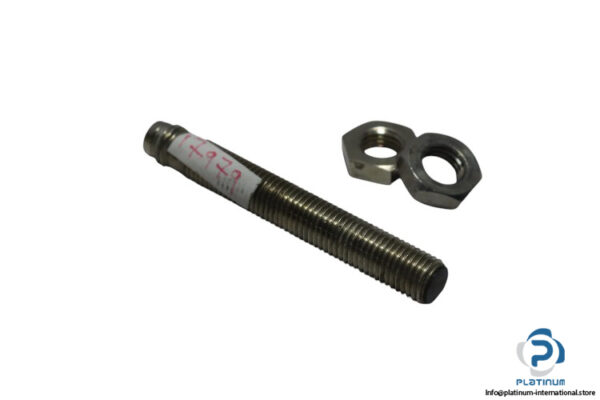

Balluff BES M08MI-PSC40B-S49G Inductive Sensor
The Balluff BES M08MI-PSC40B-S49G is a high-performance inductive sensor designed for precise object detection in industrial automation applications. With a robust brass housing, IP67 protection, and reliable PNP Normally Open (NO) switching output, it ensures durability and efficiency in demanding environments.
- Manufacturer: Balluff
- Type: Inductive Sensor
- Model: BES M08MI-PSC40B-S49G
- Part No.: BES01ZW
Technical Specifications:
- Operating Voltage (Ub): 10 / 30 VDC
- No-Load Current (Io) Max., Undamped: 8 mA
- No-Load Current (Io) Max., Damped: 10 mA
- Rated Insulation Voltage (Ui): 75 V DC
- Rated Operating Current (Ie): 200 mA
- Rated Operating Voltage (Ue): 24 V DC
- Rated Short Circuit Current: 100 A
- Switching Output: PNP Normally Open (NO)
- Output Resistance (Ra): 33.0 kOhm + 2D
- Connection: M8x1-Male, 3-pole
- Installation: Quasi-flush
- Size: M8x1
- Tightening Torque: 3 Nm
- Degree of Protection: IP67
- Housing Material: Brass
- Ambient Temperature: 0 / 60 °C
- Dimensions: Ø 8 x 59 mm
