Manufacturer: BALLUFF

Type: Photoelectric Sensor

Model: BGL 5A-001-S49

Order Code: BGL001W

Series: A

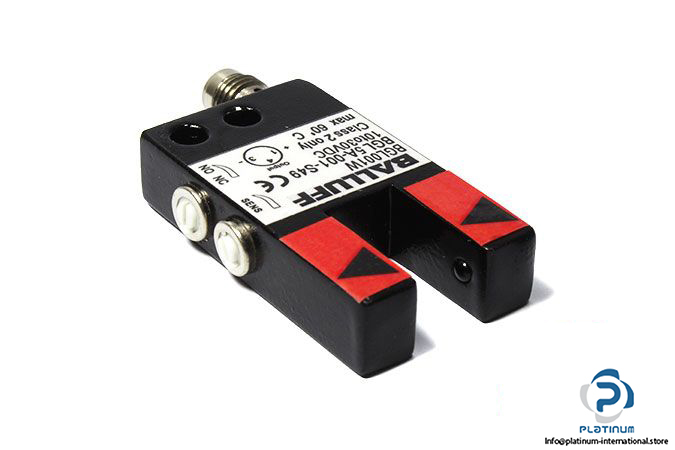

Principle of Operation: Fork Sensor

Principle of Optical Operation: Through-Beam Sensor

Fork Opening: 5 mm

Operating voltage: 10 … 30 V DC

Switching Output: PNP Normally Open/Normally Closed

Setting: Sensitivity Light-on/dark-on

Rated Operating Current Ie: 200 mA

No-load current Io: Max. 25 Ma

Switching Frequency: 3000 Hz

Housing Material: Zinc, Die Casting, Painted

Material Sensing Surface: Glass

Protection Class: IP67

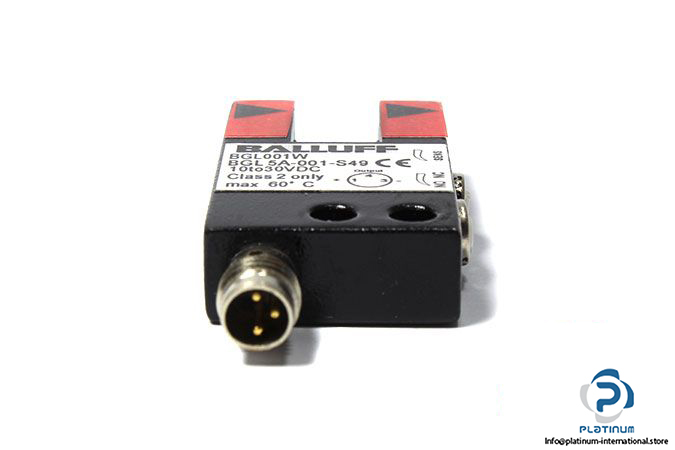

Connection: Connector, M8x1-Male, 3-pin

Dimension: 10 x 25 x 54 mm

Ambient Temperature: 10 … 60 °C

Weight: 0.03 kg
