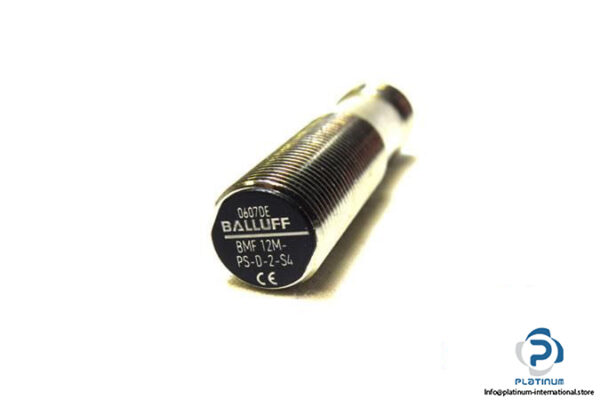

BALLUFF BMF0022 Magnetic Sensor
The BALLUFF BMF0022 Magnetic Sensor is a reliable position detection device designed for high switching accuracy and stable performance in demanding industrial automation environments. Its robust construction and precise sensing capability make it suitable for various metalworking, assembly, and handling applications.
Manufacturer: BALLUFF
Type: Magnetic Sensor
Order Code: BMF0022
MRN: BMF 12M-PS-D-2-S4

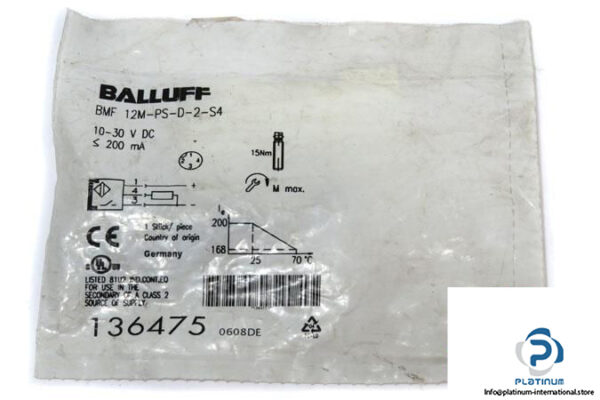

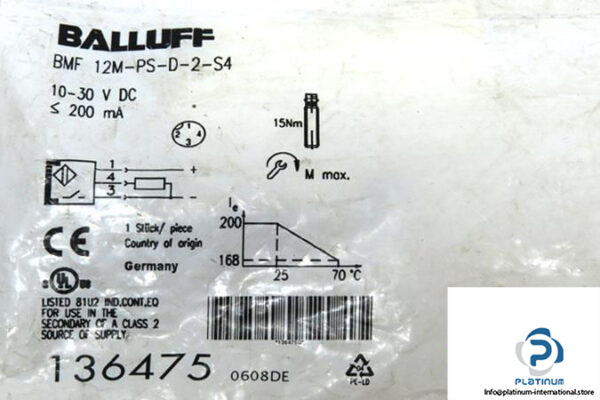

Reference Number: 136475 0608DE
Technical Information
- Assured Switching Field Strength: 2 kA per meter
- Hysteresis H max: 45 percent of Hn
- Operating Voltage: 10 to 30 V DC
- Switching Frequency: 10000 Hz
- Switching Output Current: 200 mA DC
- Electrical Design: PNP
- Output Function: Normally open

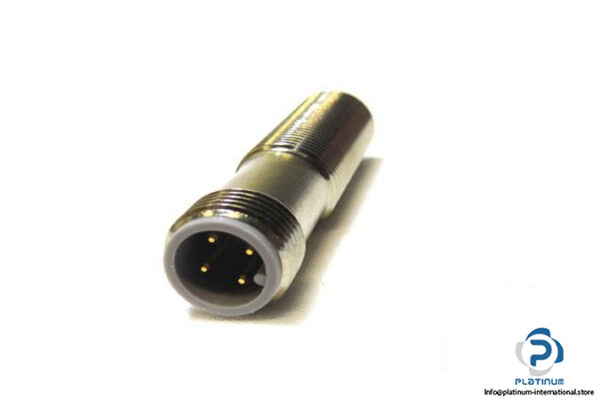

- Connector Type: M12 4 pin
- Protection Class: II
- Enclosure Rating: IP67

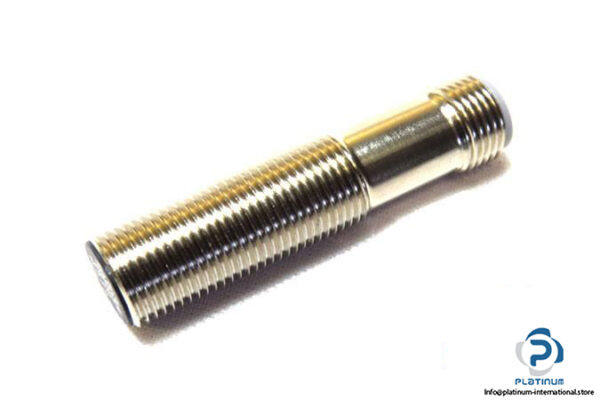

- Housing: Threaded type
- Ambient Operating Temperature: minus 25 to 85 degree Celsius
- Diameter and Housing Length: 12 millimeters, 50 millimeters
- Material: Nickel plated brass, sensing face PA 12
- Supplied Accessories: 2 lock nuts
