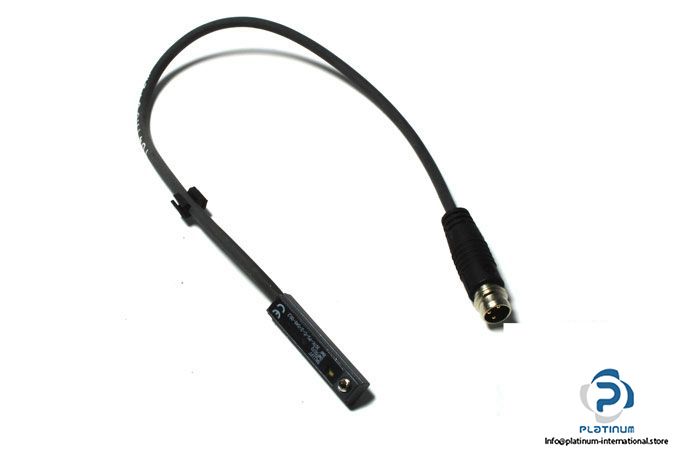

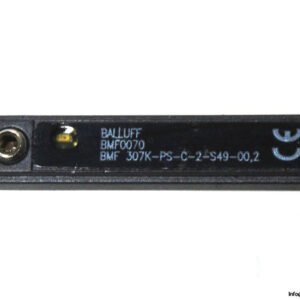

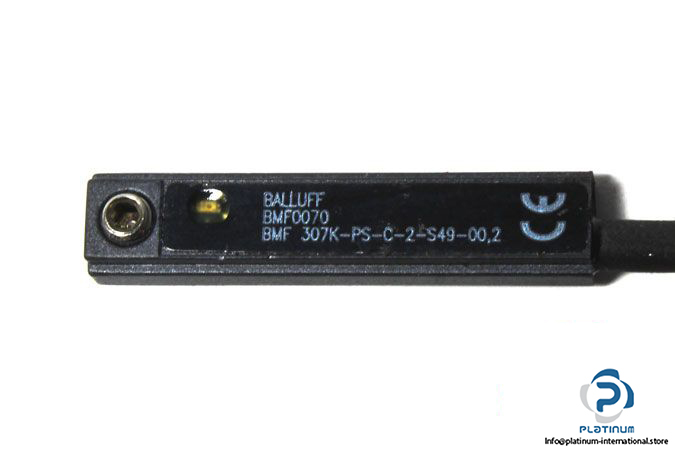

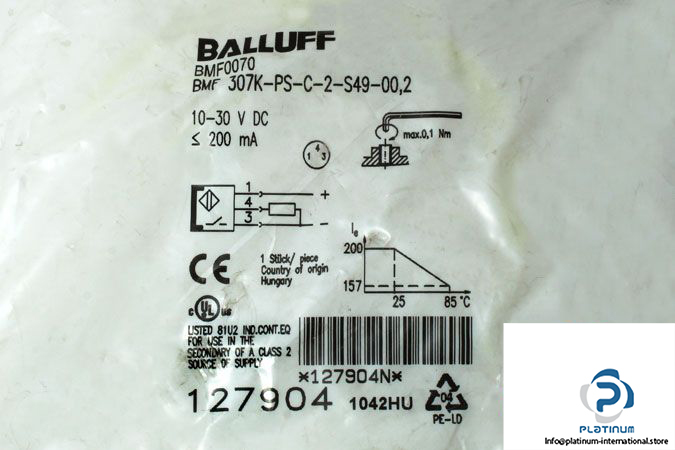

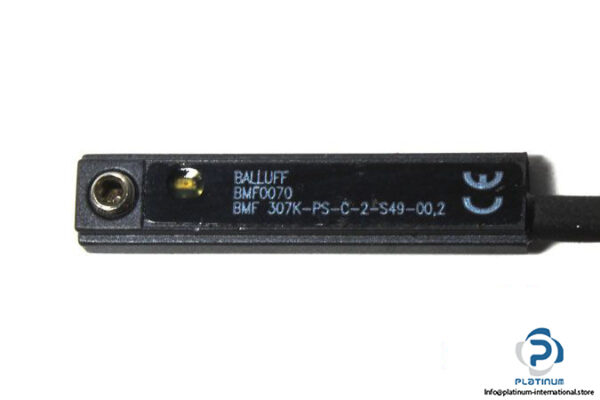

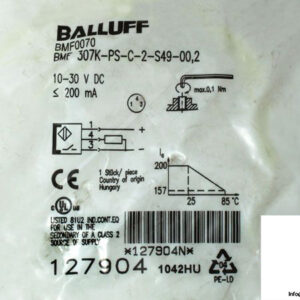

Manufacturer: Balluff

Type: Magnetic Sensor

Model: BMF 307K-PS-C-2-S49-00,2

Order Code: BMF0070

Switching Field Strength Ha: 2 kA/m

Rated Operating Voltage: 10 … 30 VDC

Rated Operating Current: 200 mA

No-Load Current Io Max: 10 mA

Switching Frequency: 10000 Hz

Cable Material: PUR

Enclosure Rating: IP67

Connection: M8x1 connector, 3-pin

Ambient Operating Temperature: -25 … 85°C

Dimensions: 29 x 6.2 x 4.4 mm

Weight: 0.015
