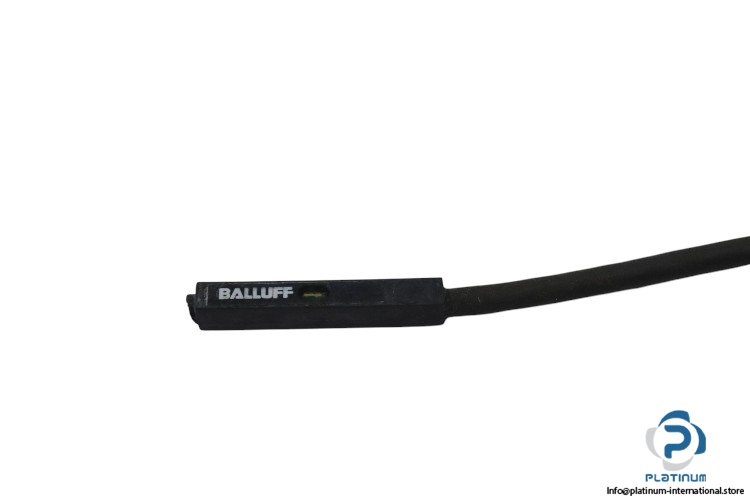

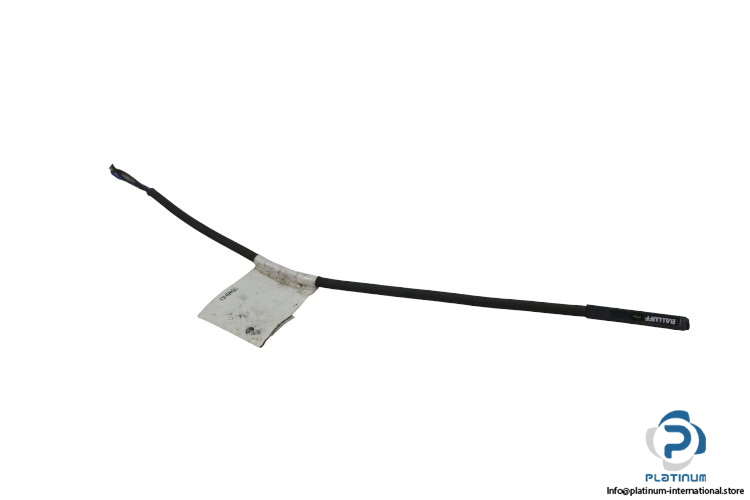

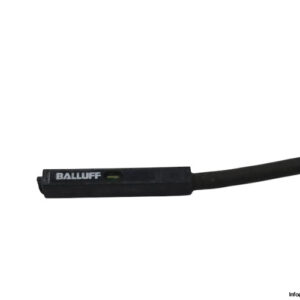

Balluff BMF003F Cylinder Sensor

The Balluff BMF003F is a compact and reliable cylinder sensor designed for use in miniaturized actuators. Built with a durable LCP housing and advanced magnetic field sensing technology, it delivers accurate detection in tight industrial spaces with high resistance to environmental stress.

Manufacturer: Balluff

Type: Cylinder Sensor

Model: BMF003F

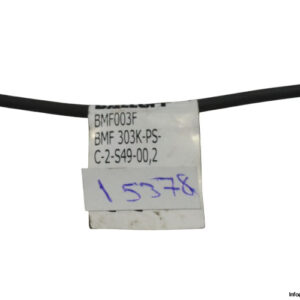

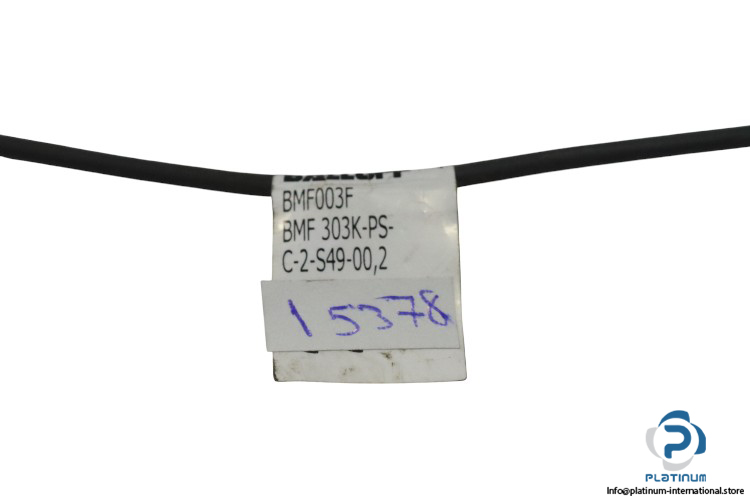

MRN: BMF 303K-PS-C-2-S49-00,2

Technical Data:

• Application: Miniaturized actuators
• Housing Material: LCP
• Switching Output: PNP normally open (NO)
• Operating Voltage: 10 to 30 VDC
• Ambient Temperature: -25 to 85 °C
• IP Rating: IP67
• Dimensions: 25.5 x 3 x 4.5 mm
• Principle of Operation: Magnetic field sensor
• Connection: M8x1-Male, 3-pin
• Cable: 0.2 m
