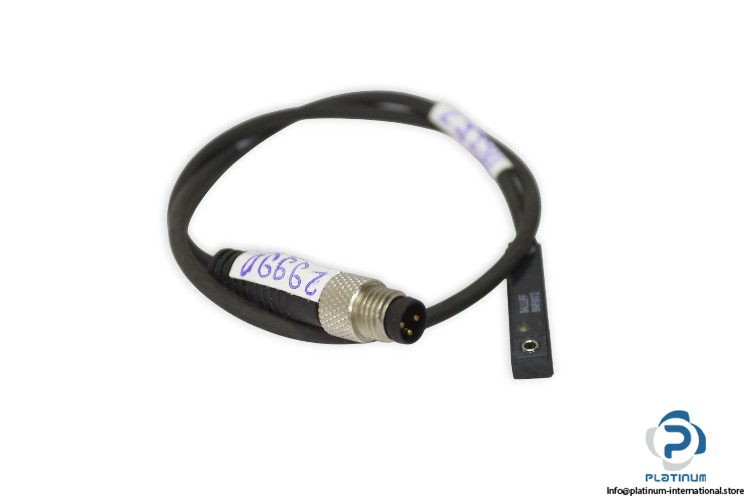

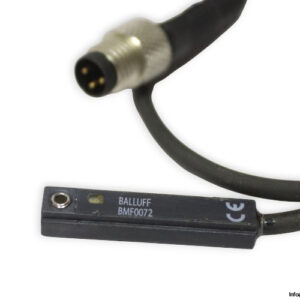

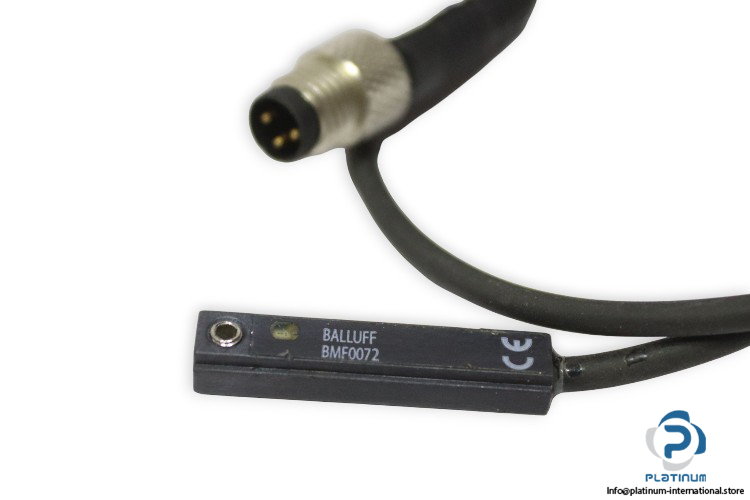

Balluff BMF 307K-PS-C-2-SA2-S49-00,3 / BMF0072 Magnetic Cylinder Sensor
The Balluff BMF 307K-PS-C-2-SA2-S49-00,3 / BMF0072 Magnetic Cylinder Sensor is a high-performance sensor designed for precise piston position detection in pneumatic cylinders. Its compact T-slot design, high switching frequency, and rugged IP67 housing ensure reliable operation in demanding industrial environments.
Manufacturer: Balluff
Type: Magnetic Cylinder Sensor
Model: BMF 307K-PS-C-2-SA2-S49-00,3 / BMF0072
Technical Information
- Slot Type: T-Slot
- Rated Operating Voltage: 10 / 30 V DC
- Contact: PNP Normally Open (NO)
- Switching Frequency: 10000 Hz

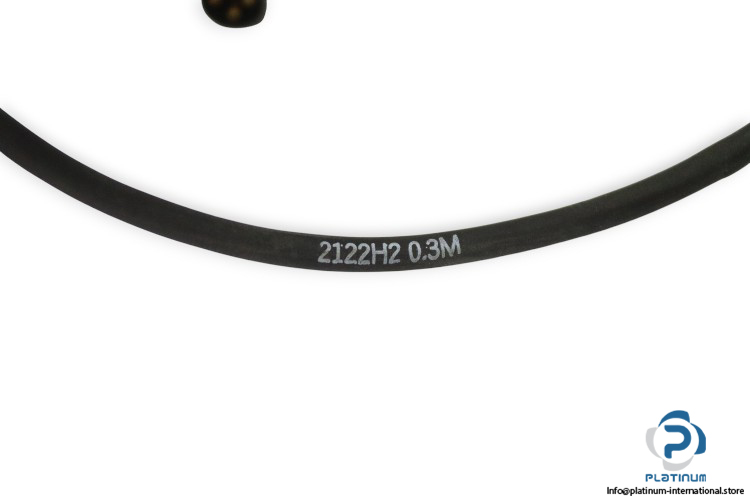

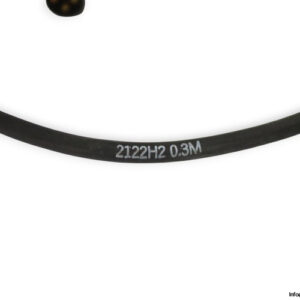

- Connection: PUR, 0.3 m Cable, M8x1-Male Connector 3-Pin
- Housing Material: LCP
- Protection Class: IP67
- Ambient Temperature: -25 / 70 °C
- Dimensions: 29 x 6.2 x 4.4 mm
