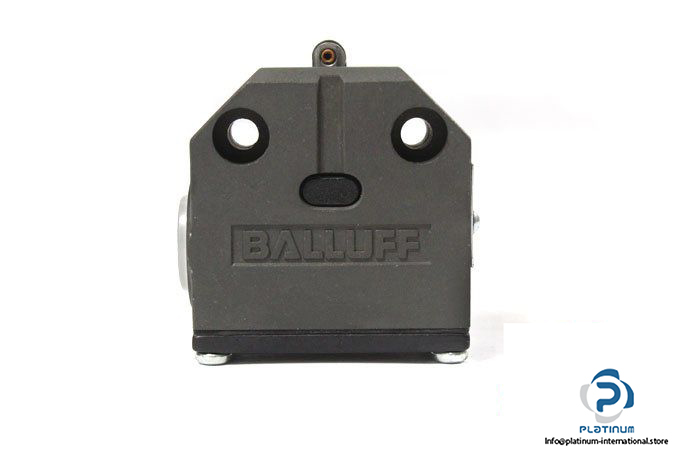

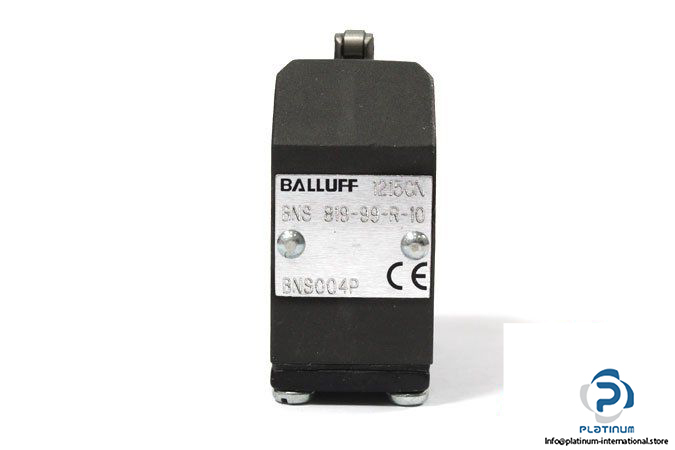

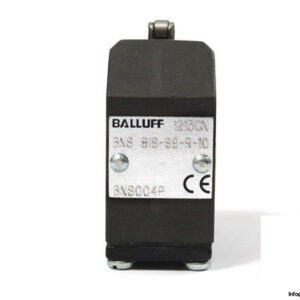

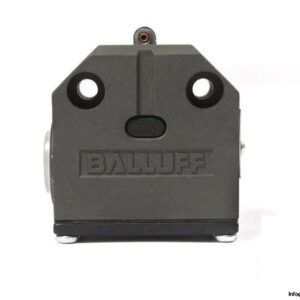

Manufacturer: BALLUFF

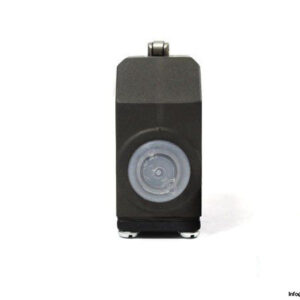

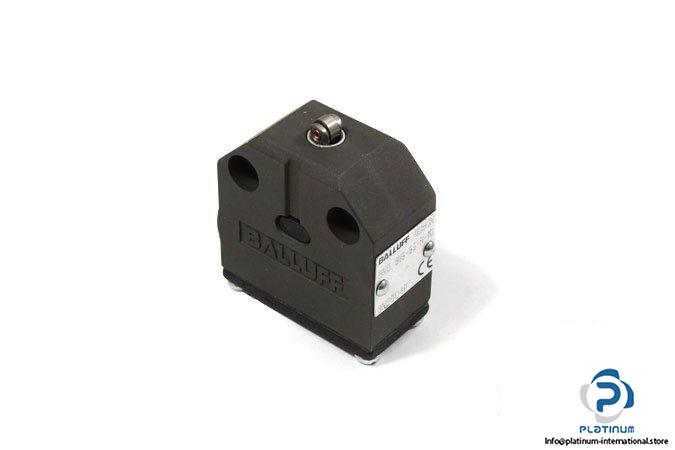

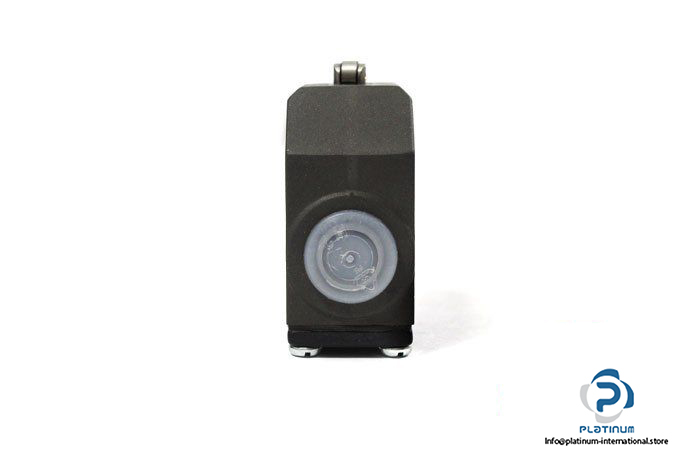

Type: MECHANICAL CAM SINGLE POSITION LIMIT SWITCH

Order Code: BNS004P

MRN: BNS819-99-R-10

Switching Function: Mechanical Single-Pin Changeover

Switching Rate: 1. Switch Position: 200/min

Approach Direction: Lateral or at Right Angles to Mounting Surface

Approach Speed: 1. Switch Position: 60 m/min

Distance Cam – Reference Edge: 1. Switch Position: 2.30…2.80 mm

No. of Switching Positions: 1x Roller

Switch Actuation Force: 8 N

Reproducibility: 1. Switch Position: ±0.05 mm

Operating Voltage: 250 V AC

Continuous Current: 5 A

Connector Type: 1. Switch Position; Solder Connection

Enclosure Rating: IP67

Ambient Operating Temperature: -5 … 85°C

Diameter, Housing Length: 40 x 20 x 43 mm

Housing Material: Aluminum

Weight: 0.15 kg
