Manufacturer: BALLUFF

Type: PHOTOELECTRIC SENSOR

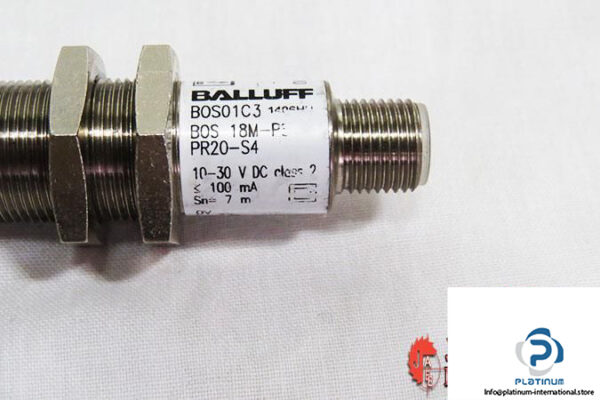

Model: BOS 18M-PS-PR20-S4

MRN: BOS01C3

Principle of operation: Photoelectric Sensor

Series: 18 M

Rated operating distance Sn: 7 m

Range: 0…7 m

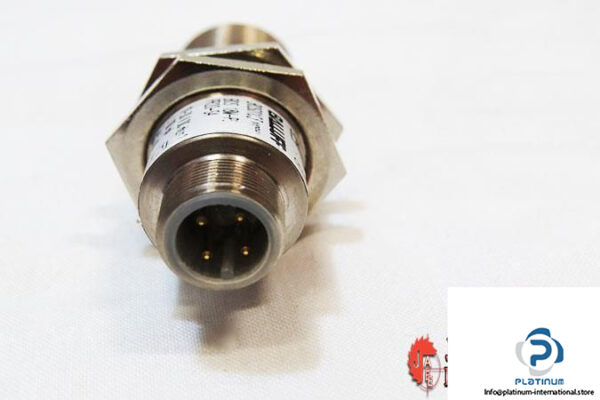

Connection: M12x1-Connector, 4-pole, A-coded

Switching frequency: 400 Hz

Rated operation current: ≤ 100 mA

Operating voltage Ub: 10…30 VDC

Ambient temperature: -5…55 °C

Protection type: IP67

Dimension: 18 x 75 mm

Ambient light max: 10000 Lux

Beam characteristic: Divergent

Light type: LED Red light

Wave length: 626 nm

Switching output: PNP normally open (NO)

Material sensing surface: Glass

Surface protection: nickel plates

Condition: New
