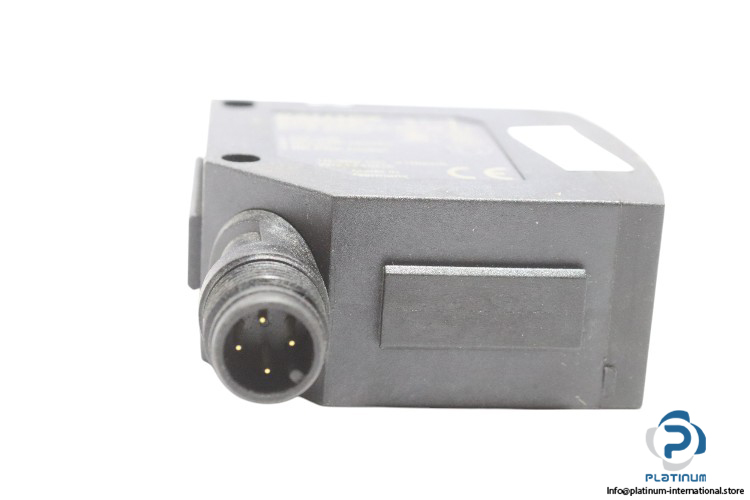

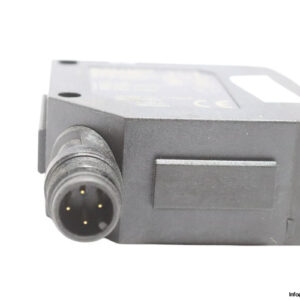

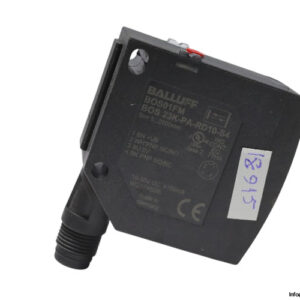

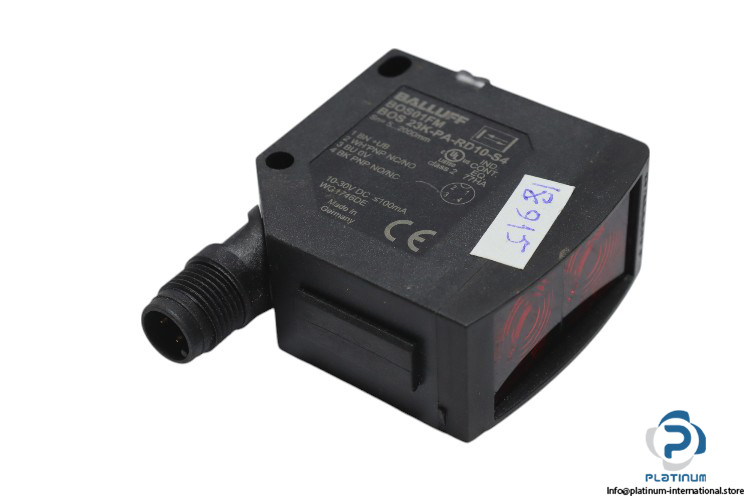

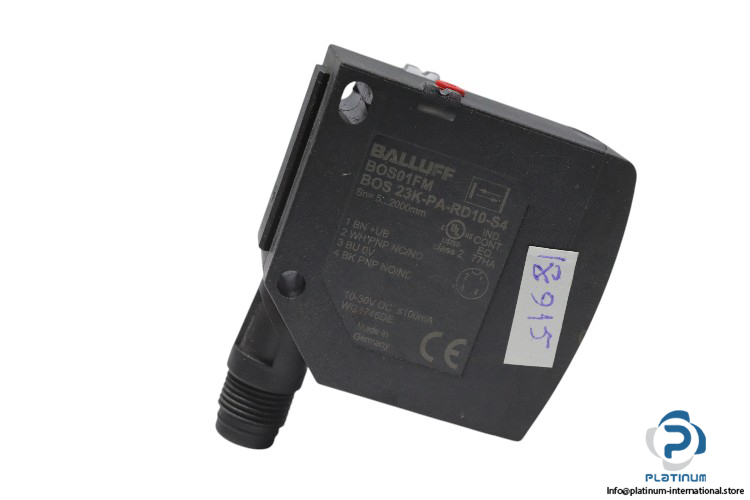

Balluff BOS23K-PA-RD10-S4 Diffuse Photoelectric Sensor

The **Balluff BOS23K-PA-RD10-S4 Diffuse Photoelectric Sensor** is designed for high-precision object detection in industrial applications. With a **supply voltage range of 10 to 30 V DC**, the sensor offers a **sensing range from 5 to 2000 mm** and is **adjustable** up to **2 m** for flexible use. The sensor operates on the **diffuse sensing principle** and uses **red LED light** with a wavelength of **640 nm**. It provides a **PNP switching output**, offering both **normally open** and **normally closed** configurations for versatile applications. The sensor is equipped with a **M12x1-Male, 4-pin connector** for easy wiring and integration into industrial systems. Its housing is made of **PC and ABS**, ensuring durability, and the **PMMA sensing surface** provides reliable detection performance. With a **switching frequency of 600 Hz**, this sensor can handle fast switching operations. The **ambient temperature range of -20 to +60°C** makes it suitable for a wide range of environments. The sensor has compact dimensions of **23 x 51 x 52.4 mm**, ideal for space-constrained applications.

• Manufacturer: Balluff
• Type: Diffuse Photoelectric Sensor
• Model: BOS23K-PA-RD10-S4

Technical Information

• Supply Voltage: 10 to 30 V DC
• Rated Operating Current: 100 mA
• Sensing Range: 5 to 2000 mm (adjustable up to 2 m)
• Principle of Optical Operation: Diffuse sensor, energetic
• Switching Output: PNP, Normally closed, Normally open
• Light Type: LED, red light
• Connection: M12x1-Male, 4-pin connector
• Housing Material: PC, ABS
• Wavelength: 640 nm
• Material Sensing Surface: PMMA
• Switching Frequency: 600 Hz
• Ambient Temperature Range: -20 to +60 °C
• Dimensions: 23 x 51 x 52.4 mm

The **Balluff BOS23K-PA-RD10-S4 Diffuse Photoelectric Sensor** provides precise and reliable object detection for a variety of industrial applications, ensuring optimal performance even in challenging environments.
