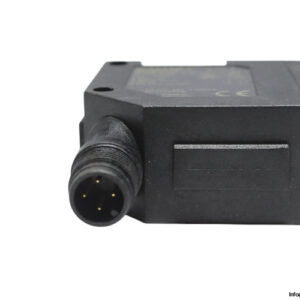

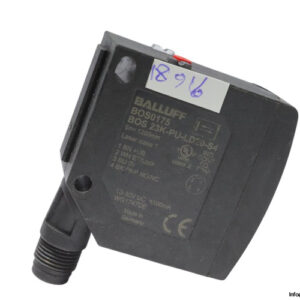

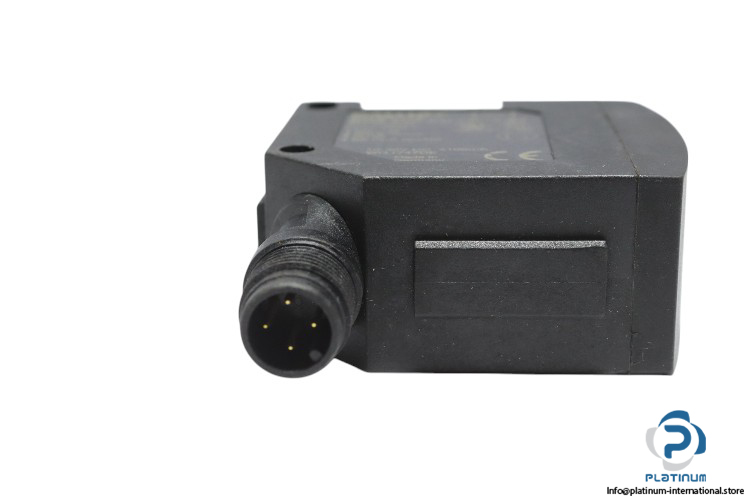

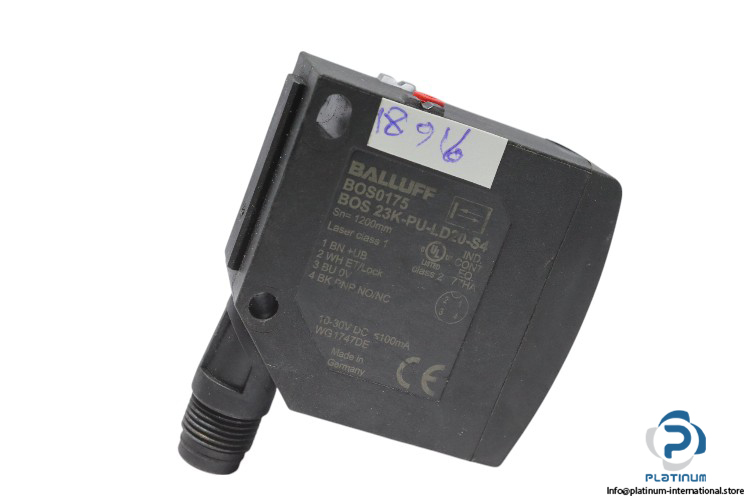

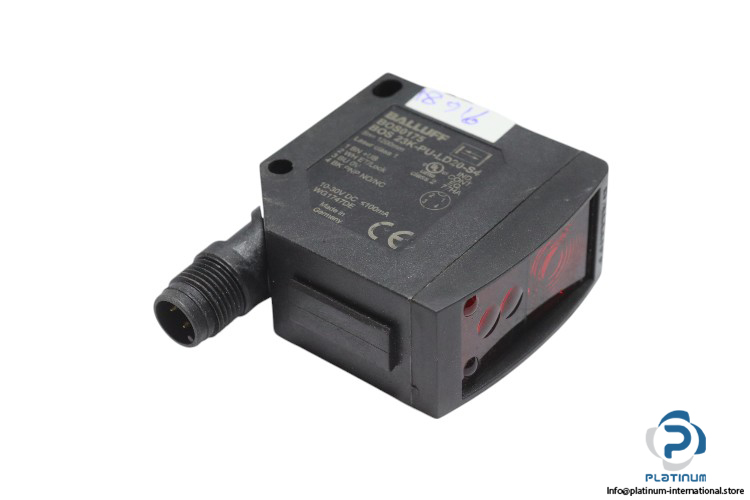

Balluff BOS23K-PU-LD20-S4 Diffuse Photoelectric Sensor

The **Balluff BOS23K-PU-LD20-S4 Diffuse Photoelectric Sensor** is a reliable solution for precise object detection in industrial automation. With a **sensing range of 1200 mm**, this sensor offers **adjustable rated operating distance** up to **1.2 m** for flexibility in various applications. It uses the **diffuse sensor principle**, emitting **laser red light** with a wavelength of **650 nm**, ensuring clear detection. The sensor offers both **PNP switching output** with **normally open and normally closed** options for versatile connectivity. It is designed with a **M12x1-Male, 4-pin connector** for easy installation. The sensor housing is made of durable **PC and ABS**, providing long-lasting protection. With a **switching frequency of 600 Hz**, it can handle fast switching applications. It operates within an **ambient temperature range of -20 to +60°C**, making it suitable for different environmental conditions. The sensor’s **PMMA sensing surface** ensures high-quality and consistent performance.

• Manufacturer: Balluff
• Type: Diffuse Photoelectric Sensor
• Model: BOS23K-PU-LD20-S4

Technical Information

• Supply Voltage: 10 to 30 V DC
• Rated Operating Current: 100 mA
• Sensing Range: 1200 mm
• Rated Operating Distance (Sn): 1.2 m (adjustable)
• Principle of Optical Operation: Diffuse sensor, energetic
• Switching Output: PNP, Normally closed, Normally open
• Light Type: Laser red light
• Connection: M12x1-Male, 4-pin connector
• Housing Material: PC, ABS
• Wavelength: 650 nm
• Material Sensing Surface: PMMA
• Switching Frequency: 600 Hz
• Ambient Temperature Range: -20 to +60 °C
• Dimensions: 23 x 51 x 52.4 mm

The **Balluff BOS23K-PU-LD20-S4 Diffuse Photoelectric Sensor** provides accurate and reliable object detection in a compact form, ensuring optimal performance in demanding industrial environments.
