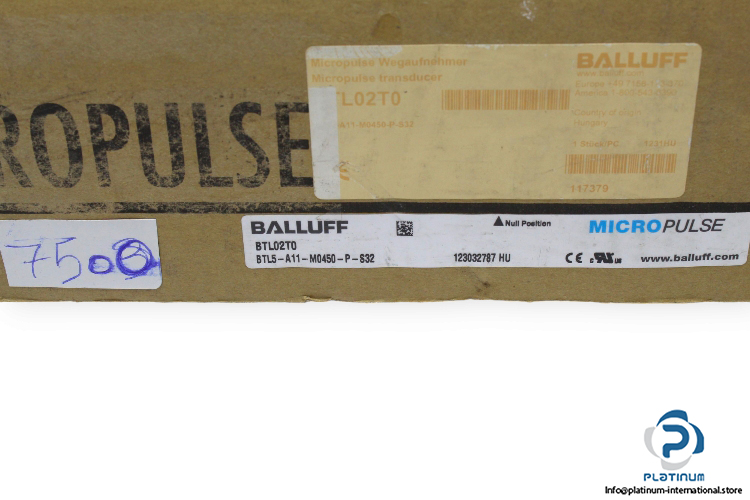

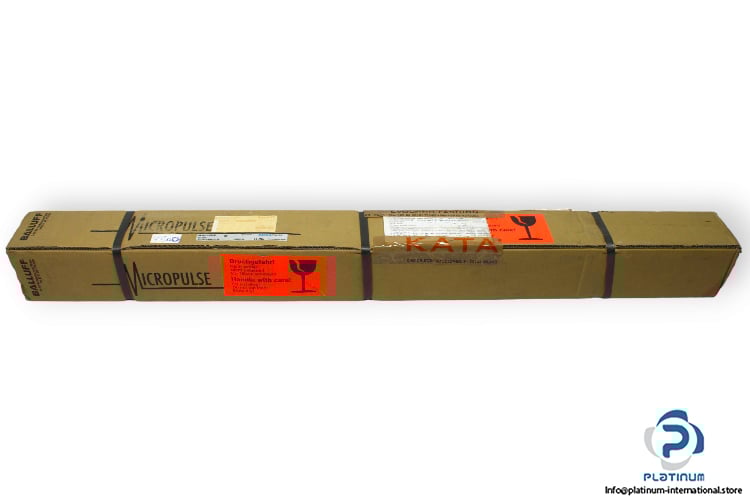

BALLUFF BTL02T0 LINEAR POSITION SENSOR

The BTL02T0 from Balluff is a high-precision magnetostrictive linear position sensor designed for demanding industrial environments. With robust construction and IP67 protection, it ensures reliable, contactless position feedback across a wide temperature range.

Manufacturer: BALLUFF
Type: Magnetostrictive Linear Position Sensor
Model: BTL02T0
Part No: BTL5A11M0450PS32
Ref No: 123032787 HU

Technical Information

• Series: MICROPULSE
• Resolution: 0.2 µA
• Rated Supply Voltage: 20 / 28 V DC
• Rated Current Consumption Max.: 150 mA
• Output Current Max.: 5 mA
• Null Point: 73.0 mm
• Magnets No. Max.: 1
• Measuring Range: 450 mm
• Connection: Axial Connector, M16 x 0.75, 8-Pin
• Housing Material: Aluminum
• Protection Class: IP67
• Ambient Temperature: -40 / 85 °C
