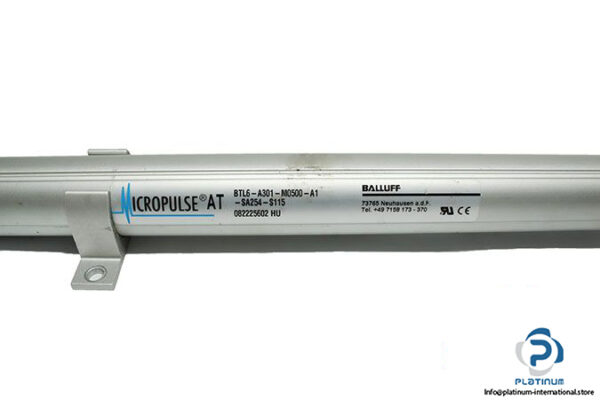

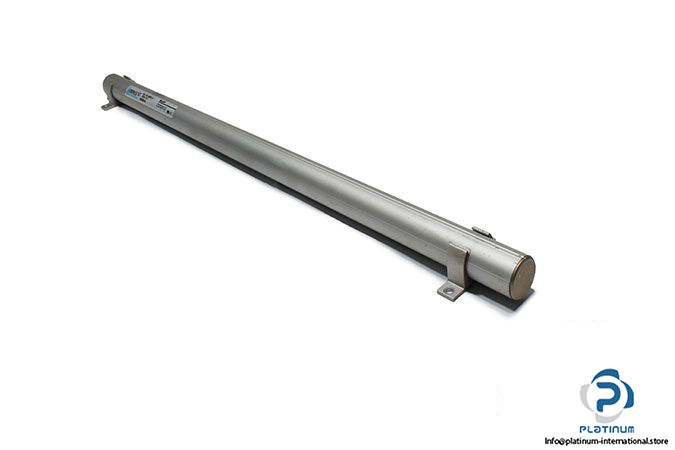

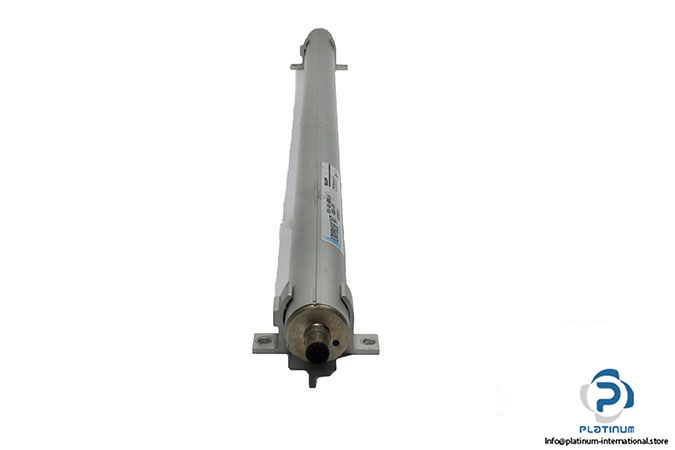

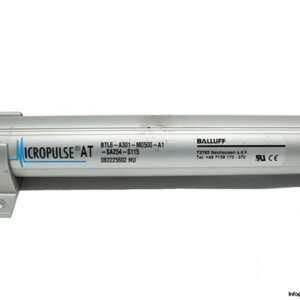

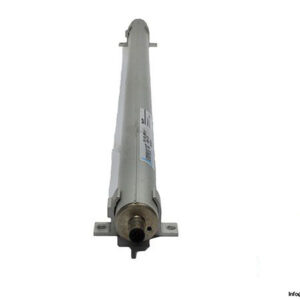

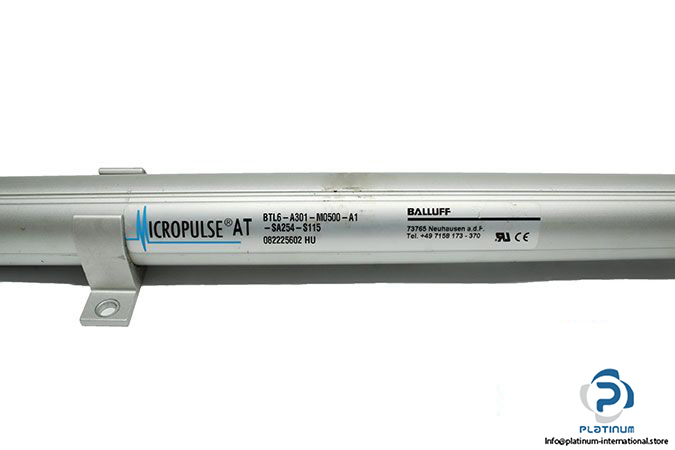

Manufacturer: Balluff

Type: Micropulse At Transducer in Round Profile Housing

Model: BTL6-A301-M0500-A1-SA254-S115

Supply Voltage: 18 … 30 VDC

Current Draw: 100 mA

Nominal Length: < 1500 mm
Output Voltage: 0 … 10 V

Load Current: < 5 mA short circuit protected
Housing: anodized aluminum

Resolution: < ±1 mV
Max. Sampling Rate: 1kHz

No. of Pins: 8

Operating Temperature:  0 … +70 °C

Diameter: 30 mm

Protection Class: IP67

Weight: 0.47 Kg
