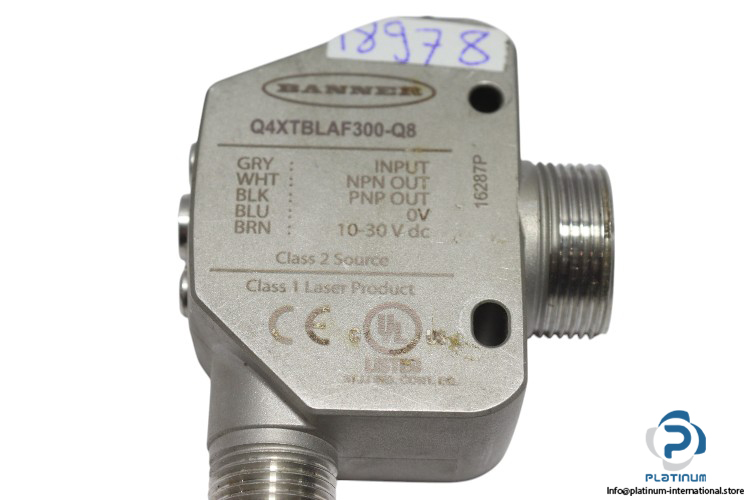

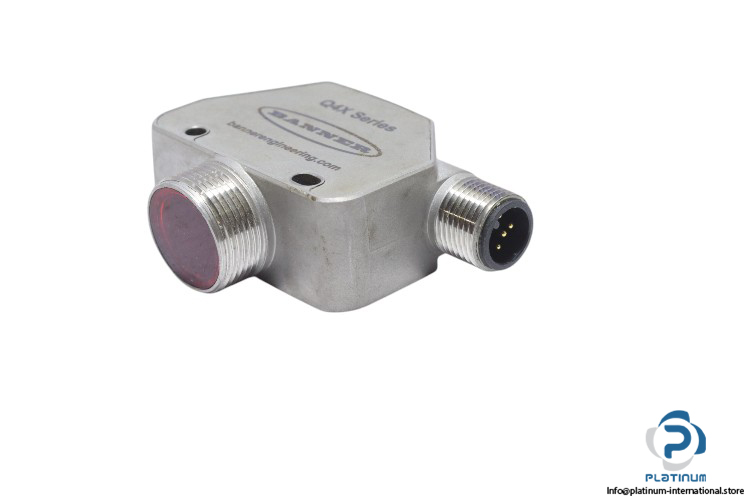

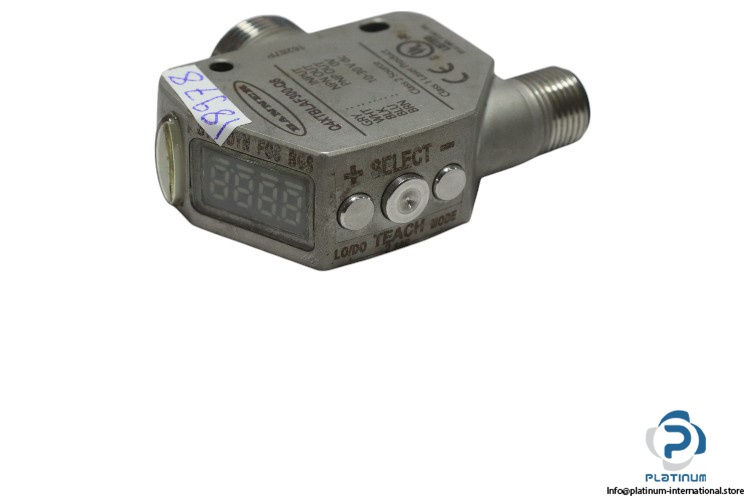

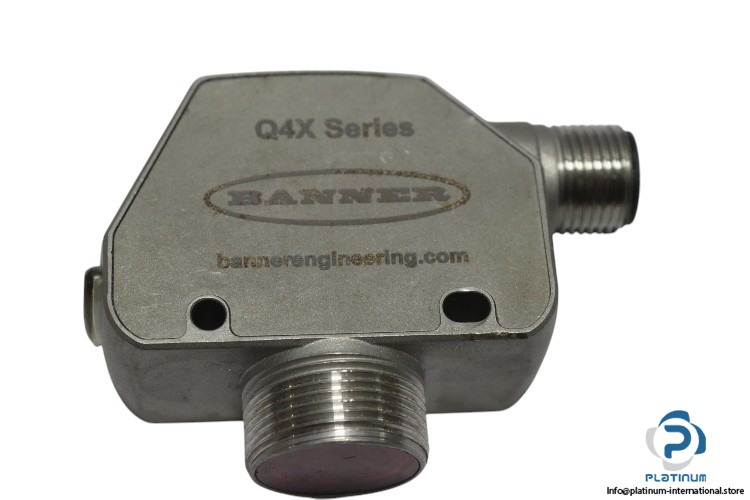

Banner Q4XTBLAF300-Q8 Photoelectric Sensor
The Banner Q4XTBLAF300-Q8 Photoelectric Sensor is a high-performance sensor designed for precise object detection in industrial automation systems. This sensor operates with a red light source (655 nm wavelength), providing high optical resolution of 1 mm and repeatability of 0.5 mm for accurate measurements. With a sensing range from 25 to 300 mm, it is suitable for a variety of applications that require non-contact object detection.
The sensor operates within a wide voltage range of 10 to 30 VDC and has a rated operational current of 28 mA. The output function supports both normally open (NO) and normally closed (NC) configurations with PNP and NPN outputs, making it compatible with different industrial control systems. The electrical connection is made via a secure M12 × 1 connector with a PVC cable, ensuring reliable communication and integration with industrial equipment.
The sensor’s housing is made of stainless steel, providing durability and resistance to environmental factors such as dust and moisture. Its compact rectangular design with thread ensures easy installation in tight spaces, while its IP67 protection rating guarantees reliable operation even in harsh industrial conditions. With dimensions of 43.5 x 18 x 57.5 mm, this sensor is perfect for space-constrained applications.
Manufacturer: Banner
Type: Photoelectric Sensor
Model: Q4XTBLAF300-Q8
Technical Information:
- Light Type: Red
- Wavelength: 655 nm
- Optical Resolution: 1 mm
- Repeatability: 0.5 mm
- Range: 25…300 mm
- Operating Voltage: 10…30 VDC
- Rated Operational Current: 28 mA
- Output Function: NO/NC, PNP/NPN
- Electrical Connection: M12 × 1 connector, PVC cable
- Design: Rectangular with thread, Q4X
- Housing Material: Metal, Stainless steel
- Dimensions: 43.5 x 18 x 57.5 mm
The Banner Q4XTBLAF300-Q8 Photoelectric Sensor is an ideal solution for high-precision object detection in industrial automation systems, offering versatility, durability, and reliable performance in a wide range of applications.
