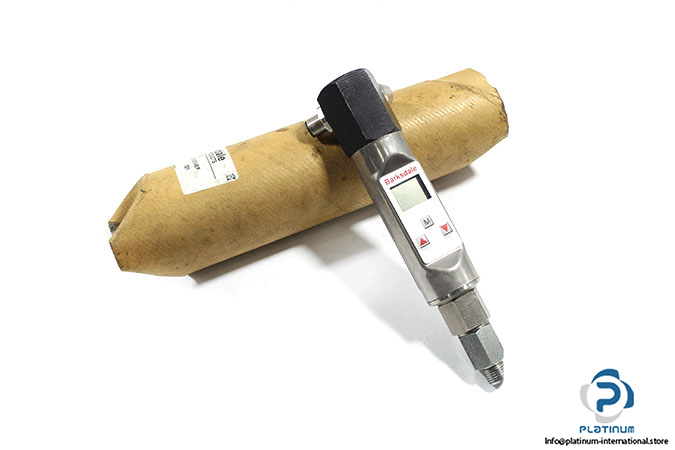

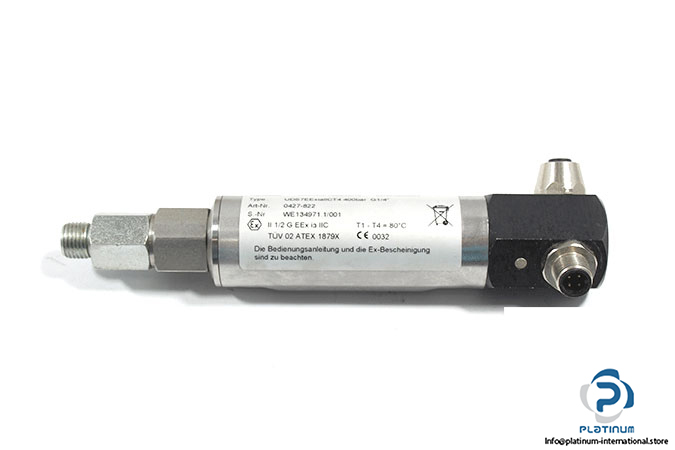

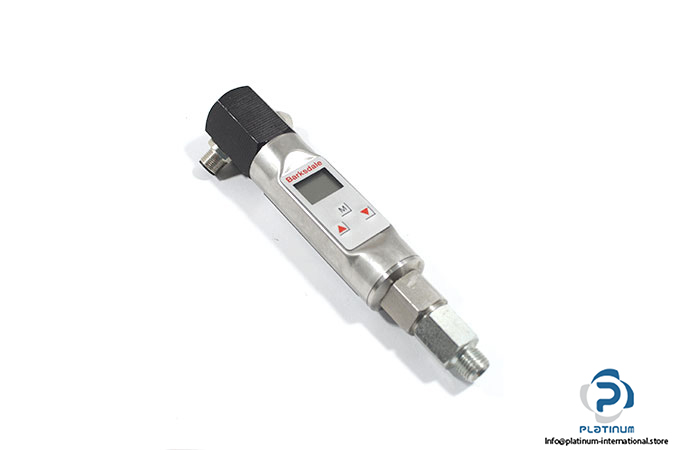

Manufacturer: BARKSDALE

Type: Electronic Pressure Switch

Model: UDS7

Part No.: 0427-822

Sensor Element: Piezo resistive silicon measuring cell

Materials: stainless steel

Measuring Pressure Range: 10 …. 400 bar

Proof Pressure: 15 ….. 600 bar

Protection system: IP65 plug

Dimensions: 32 x 163 mm

Electrical connection: plug M12 x 1; 4-pin, female/male threaded

Power Supply: 18 .… 28 VDC

Current Output: 4 ….. 20 mA

Temperature: -20 …… 80°C

Pneumatic connection: ¼ G
