Manufacturer: Bauer

Type: Geared Motor

Model: BG06-31/D05LA4/SP

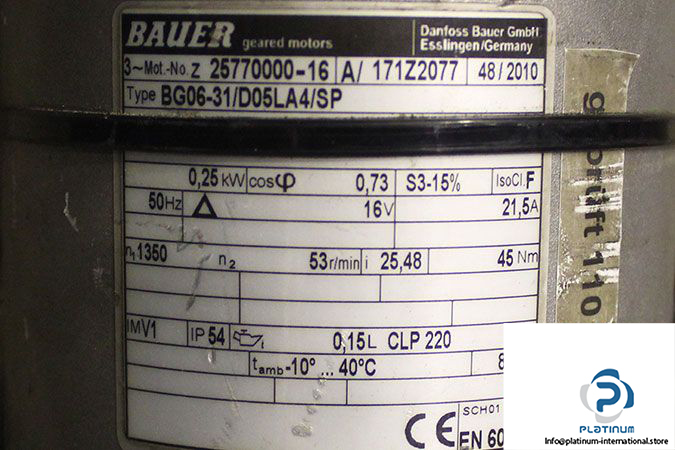

Bauer D05LA4/SP AC Motor

Motor Size: 05L

Number of Poles: 4

Rated Voltage: 16 VDC

Rated Current: 21.5 A

Rated Torque: 45 Nm

Rated Power: 0.25 Kw

Motor Speed: 1350 r/min

Power factor: 0.73

Frequency: 50 Hz

Ambien Temperature: -10…40 °C

Degree of Protection: 54

Mounting Position: V1

Insulation Class: F

Duty: S3

Lubrication: CLP220

Quantity Oil: 0.15 L

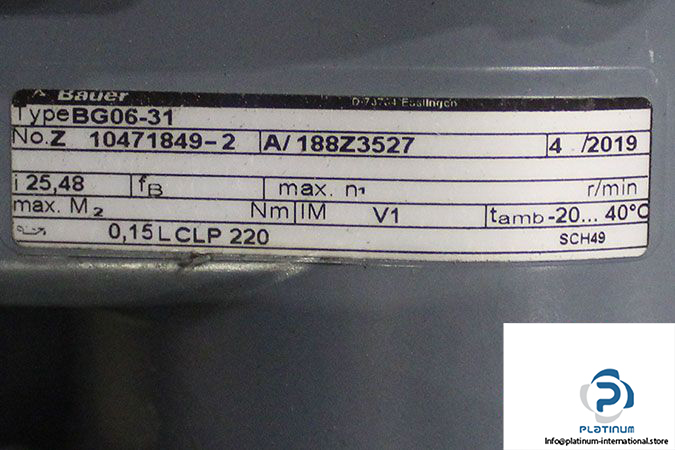

Bauer BG06-31 Helical Gear

Ratio: 25.48

Gear size: 06

Gear Output Speed: 53 r/min

Ambien Temperature: -20…40 °C
