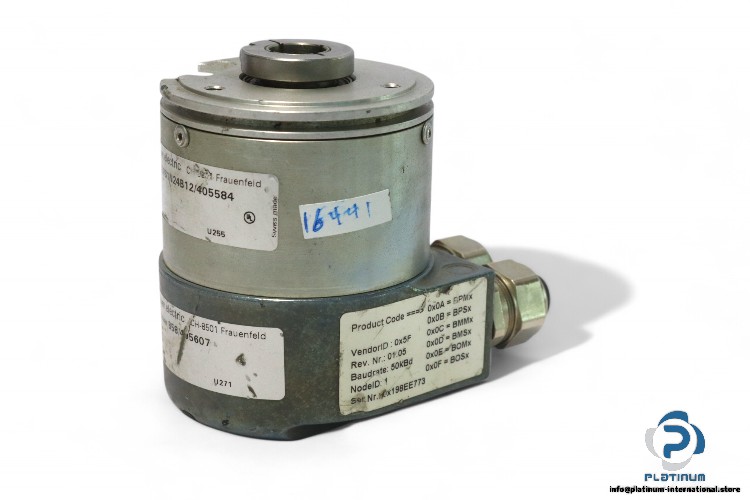

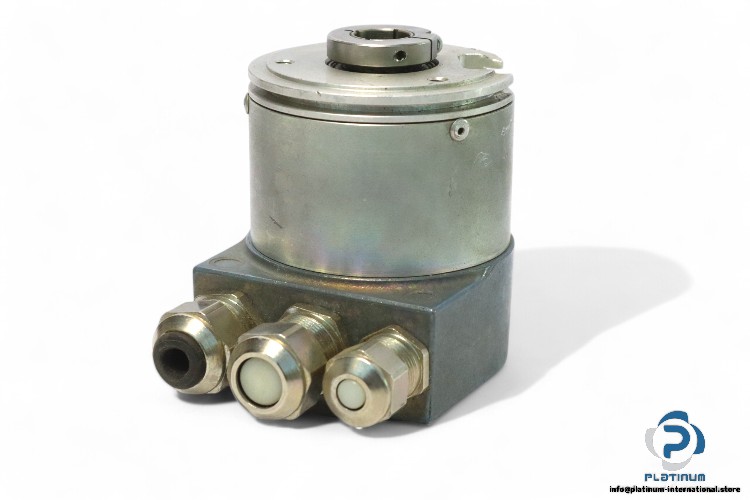

BAUMER BMSH 58S1N24B12/405584 ABSOLUTE ENCODER

The Baumer BMSH 58S1N24B12/405584 is a high-resolution magnetic absolute encoder designed for demanding industrial applications. With a 12-bit singleturn resolution and CANopen® interface, it ensures precise and reliable position feedback, even in harsh environments. Built with a durable zinc-coated steel housing and capable of operating at speeds up to 6000 rpm, it is ideal for automation systems requiring consistent and stable performance.

Manufacturer: BAUMER
Type: Absolute Encoder

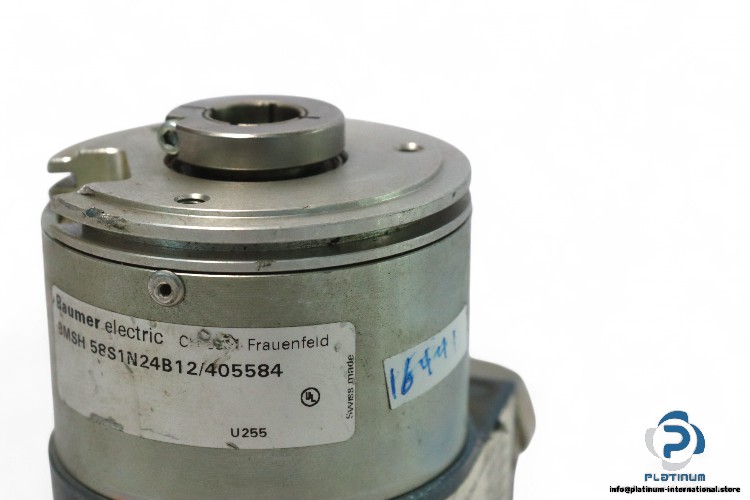

Model: BMSH 58S1N24B12/405584

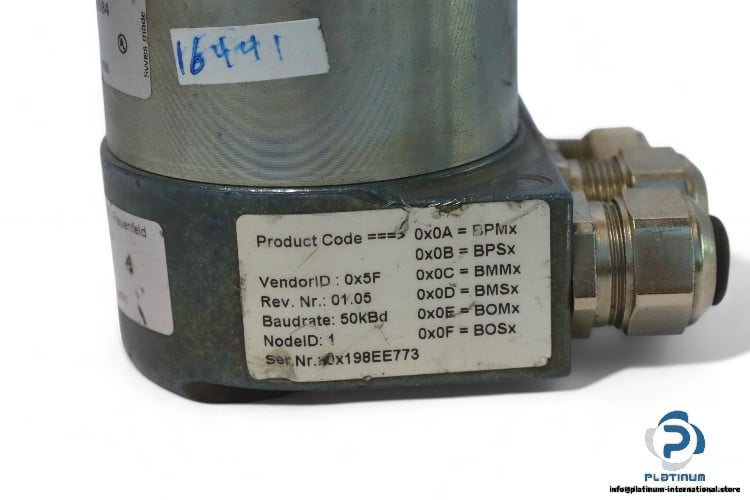

Serial No.: 0x198EE773
Revision No.: 01.05

Technical Information

• Shaft Diameter: Hollow Shaft 12 mm
• Resolution: 12-bit Singleturn
• Operating Speed: 6000 rpm
• Function: Singleturn
• Signal Interface: CANopen®
• Voltage Supply: 10 / 30 VDC
• Sensing Method: Magnetic
• Flange Diameter: 58 mm
• Connection: Bus Cover
• Housing Material: Steel Zinc-Coated
• Operating Temperature: -40 / 85 °C

Attachment

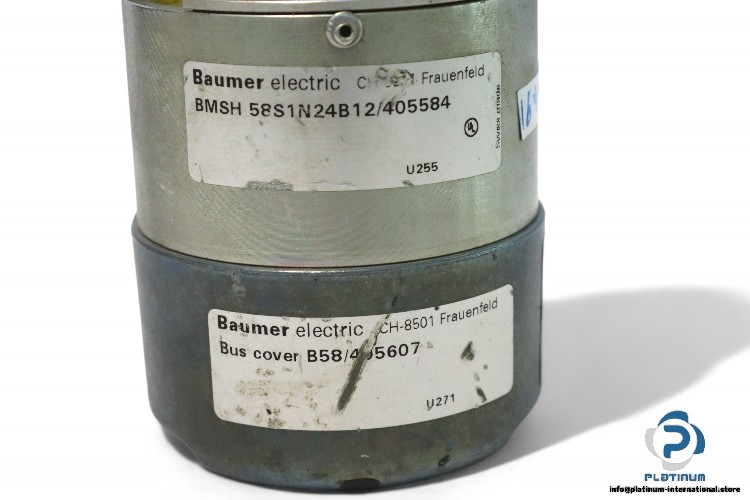

BAUMER B58/405607 BUS COVER
Type: Bus Cover
Model: B58/405607
