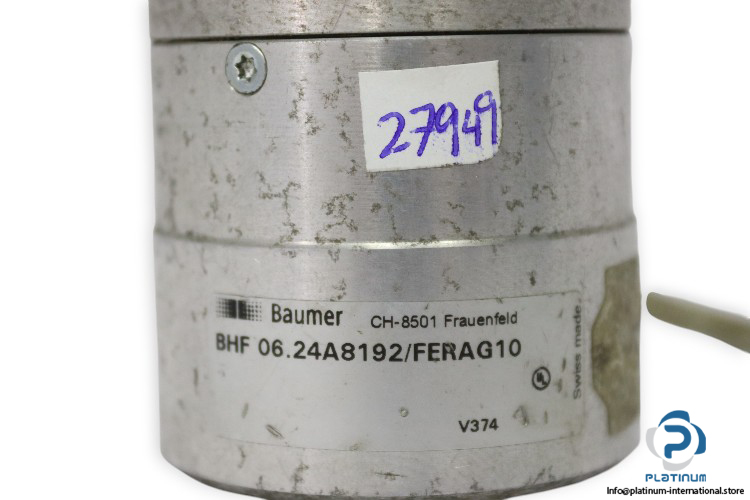

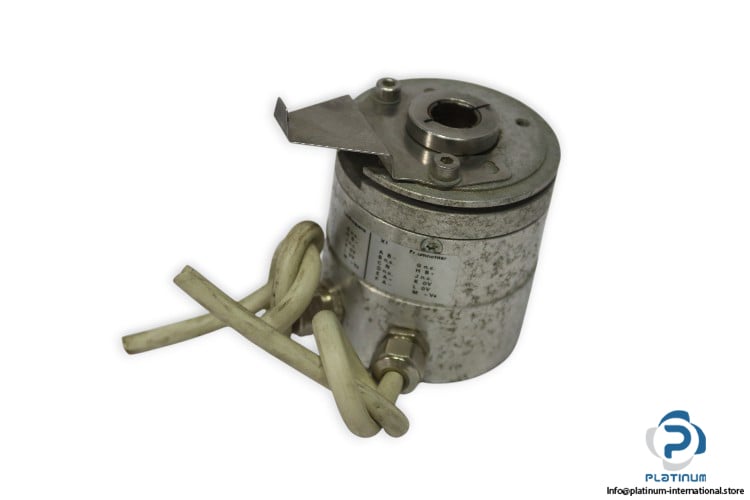

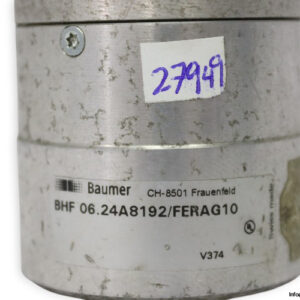

Baumer Electric BHF 06.24A8192/FERAG10 Encoder
The Baumer Electric BHF 06.24A8192/FERAG10 is a high-precision encoder designed for accurate position and speed feedback in industrial automation systems. Built with durable materials and high protection levels, it delivers consistent performance under demanding conditions.
Manufacturer: Baumer Electric
Type: Encoder
Model: BHF 06.24A8192/FERAG10
Code: V374
Technical information
- Size (Flange): 58 mm
- Shaft Diameter: 12 mm (blind hollow shaft)
- Voltage Supply: 5 VDC ±10%, 10–30 VDC, 4.5–30 VDC
- Power Consumption: 80 mA (5 VDC), 180 mA (4.5 VDC), 60 mA (24 VDC)
- Degree of Protection: IP42, IP65
- Operating Speed: 12000 rpm (IP42), 6000 rpm (IP65)

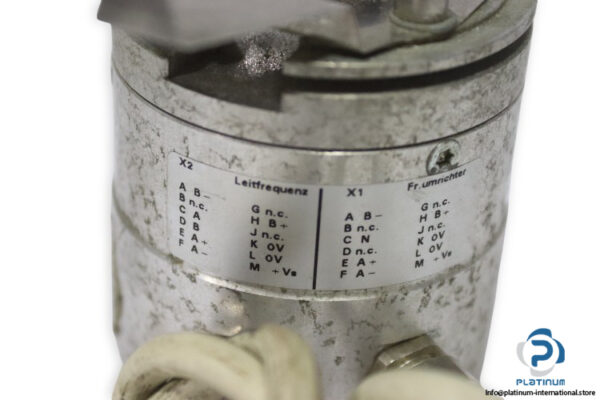

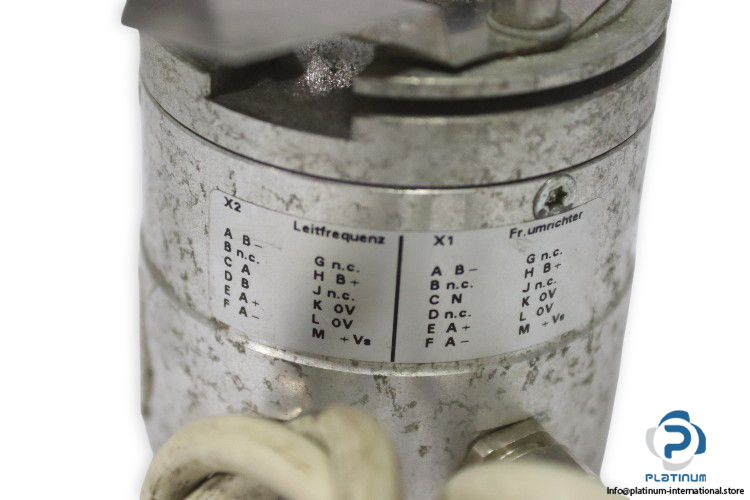

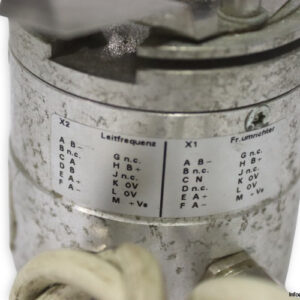

- Connection: Connector M23 (12-pin), Cable 2 m
- Operating Torque: 0.009 Nm (IP42), 0.037 Nm (IP65)
- Material: Housing: Aluminium, Connection: Steel, Flange: Aluminium
- Operating Temperature: -20 to 85 °C
