BAUMER GT7.08L420 TACHOGENERATOR

The Baumer GT7.08L420 Tachogenerator is a precision instrument designed for accurate speed measurement in industrial environments. Built with a stainless steel and plastic housing, it offers reliable performance even in harsh conditions, with wide temperature resistance and IP55 protection.

Manufacturer: Baumer
Type: Tachogenerator
Model: GT7.08L420

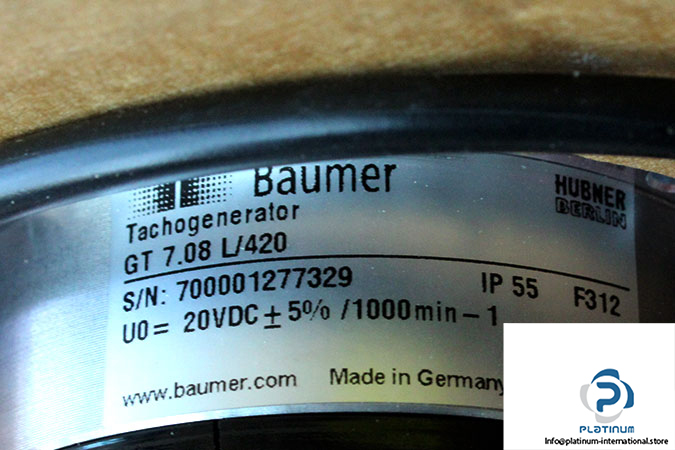

S. NO: 700001277329

Technical Information

• Open-circuit voltage: 20 mV per rpm
• Maximum operating speed (Nmax): 1000 rpm
• Connection: Screw terminal connector
• Torque: 1.5 Ncm
• Size (flange): ø85 mm
• Shaft type: Blind hollow shaft
• Shaft diameter: ø12 / 16 mm
• Materials: Housing “ stainless steel/plastic, Shaft “ stainless steel
• Protection Degree: IP 55
• Operating temperature: -30 / +130 °C
