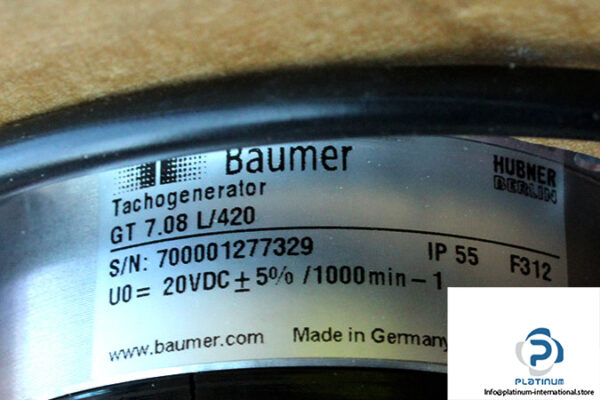

BAUMER GT7.08L420 TACHOGENERATOR
The Baumer GT7.08L420 Tachogenerator is a precision instrument designed for accurate speed measurement in industrial environments. Built with a stainless steel and plastic housing, it offers reliable performance even in harsh conditions, with wide temperature resistance and IP55 protection.
Manufacturer: Baumer
Type: Tachogenerator
Model: GT7.08L420
S. NO: 700001277329
Technical Information
- Open-circuit voltage: 20 mV per rpm
- Maximum operating speed (Nmax): 1000 rpm
- Connection: Screw terminal connector
- Torque: 1.5 Ncm
- Size (flange): ø85 mm
- Shaft type: Blind hollow shaft
- Shaft diameter: ø12 / 16 mm
- Materials: Housing “ stainless steel/plastic, Shaft “ stainless steel
- Protection Degree: IP 55
- Operating temperature: -30 / +130 °C
