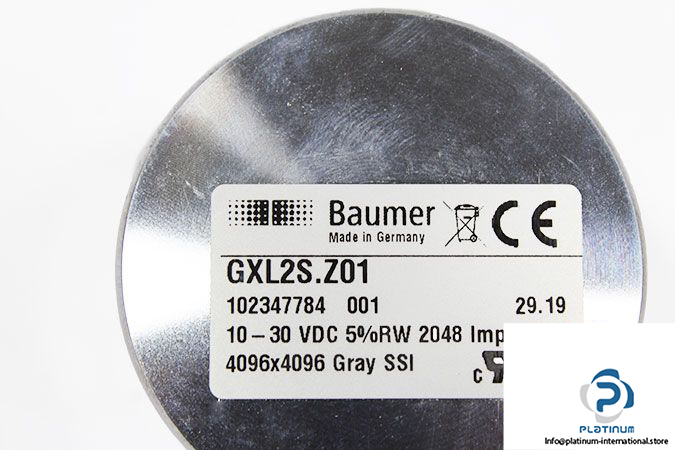

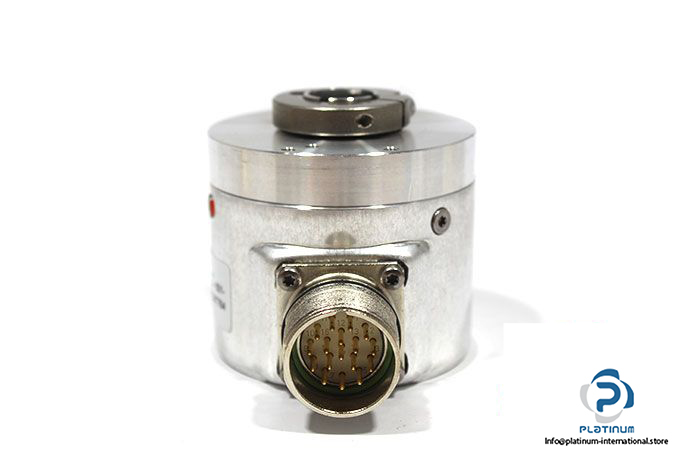

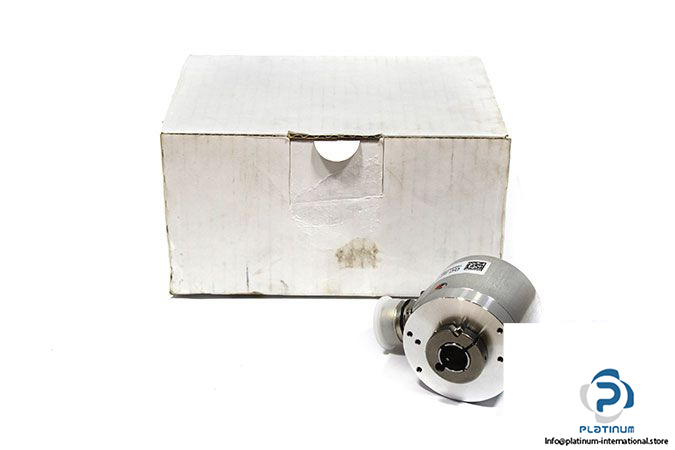

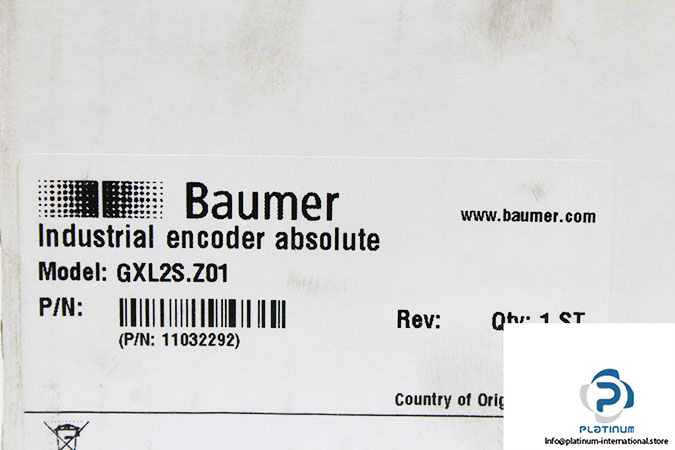

BAUMER GXL2S.Z01 ABSOLUTE ROTARY ENCODER

The Baumer GXL2S.Z01 is a high-precision absolute rotary encoder engineered for industrial automation and motion control applications. With multiturn functionality and optical sensing, it delivers reliable performance in harsh environments, offering high resolution and fast operating speeds.

Manufacturer: Baumer
Type: Absolute Rotary Encoder
Model: GXL2S.Z01
Part No.: 102347784 001 29.19
MNR: 4096X4096 GRAY SSI

Technical Information

• Power Supply: 24V DC, 10 / 30 V DC
• Operating Speed: ‰¤6000 rpm (mechanical), ‰¤6000 rpm (electric)
• Resolution: Multiturn 12 bit
• Pulses: 2048
• Function: SSI; Multiturn
• Sensing Method: Optical
• Shaft: 14 mm
• Flange: 58 mm
• Protection: IP 54
