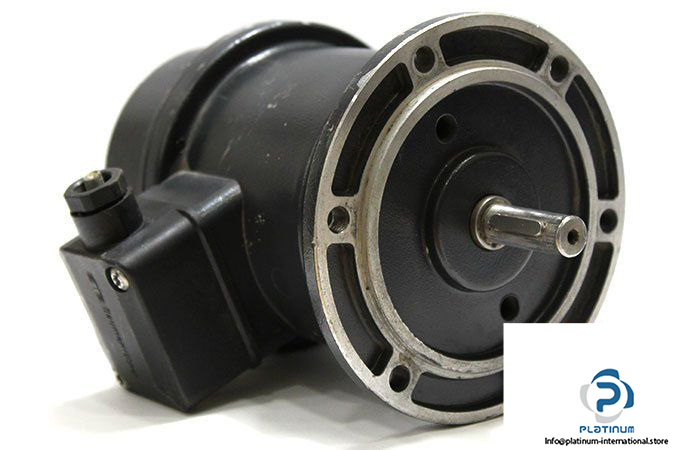

Baumer Hubner TDP 0,2 LT-5 Tachogenerator

The Baumer Hubner TDP 0,2 LT-5 is a high-quality tachogenerator engineered for precise speed monitoring in industrial applications. With a EURO flange design, solid shaft construction, and robust IP55 protection, it ensures accurate voltage output, durability, and long service life in demanding environments.

Manufacturer: Baumer Hubner
Type: Tachogenerator
Model: TDP 0,2 LT-5

Technical information

• Flange Design: EURO flange
• Shaft Design: Solid shaft
• Shaft Diameter: 11 mm
• Performance: 12 W (speed ‰¥ 3000 rpm)
• Open Circuit Voltage: 40 mV per rpm
• Maximum Operating Speed: 10000 rpm
• Electrical Connection: Terminal box
• Protection Class: IP55
• Temperature Range: -30 / +130 °C
