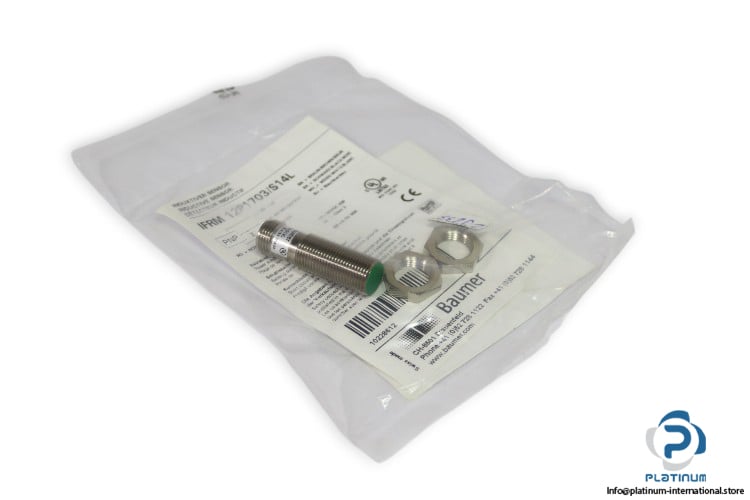

Baumer IFRM12P1703/S14L Inductive Proximity Switch
The Baumer IFRM 12P1703/S14L Inductive Proximity Switch is a reliable cylindrical sensor designed for precise metal detection in industrial automation systems. Built with a rugged nickel-plated brass housing and IP67 protection, it ensures stable operation even in challenging environments.
Manufacturer: Baumer
Type: Inductive Proximity Switch

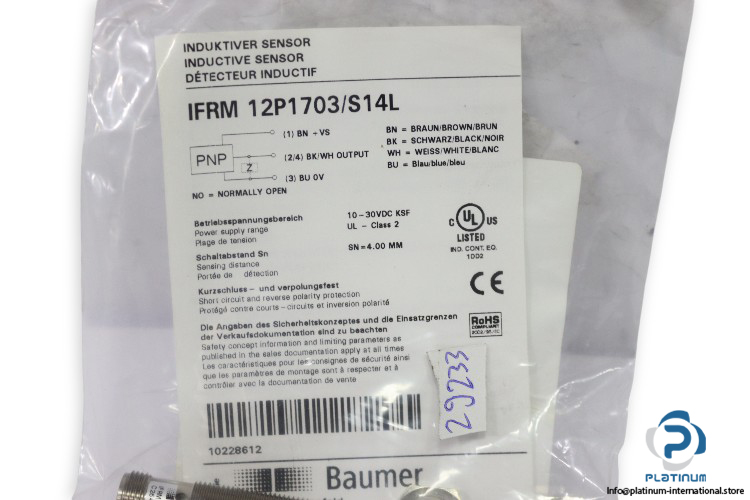

Model: IFRM 12P1703/S14L

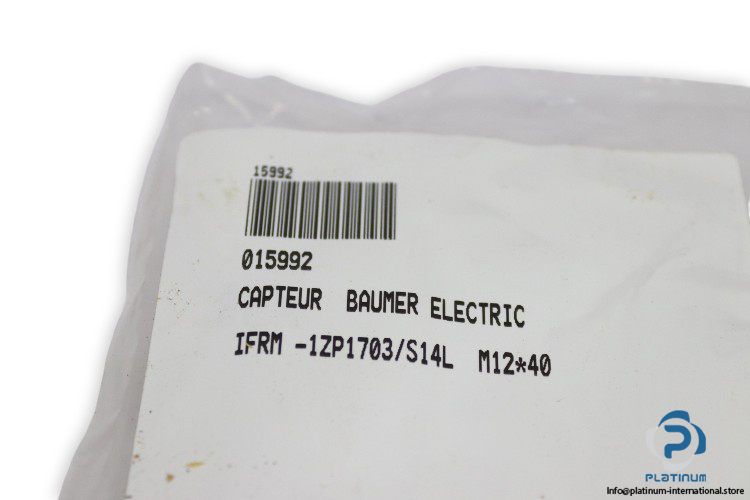

Alternative Model: IFRM 1ZP1703/S14L
Art. No.: 10228612
Technical Information
- Sensing Range: 4 mm
- Design: Cylindrical Threaded
- Rated Operating Voltage: 10 / 30 V DC
- Rated Operating Current: 200 mA
- Contact: PNP Normally Open (NO)
- Connection: Connector, M12x1-Male, 3-Pin
- Material: Brass Nickel Plated
- Diameter, Length: 40.4, 12 mm
- Protection Class: IP67
- Ambient Temperature: -25 … 75 °C
