Manufacturer: Baumer

Type:  Level Switch

Model: LBFS-02511.0

Part No.: 11054090

Point level detection based on frequency sweep technology

Input power: 12 … 30 V, 35 A

Output: -40 … 70 °

Output: max. 20 mA

Compliance and approvals: Standard

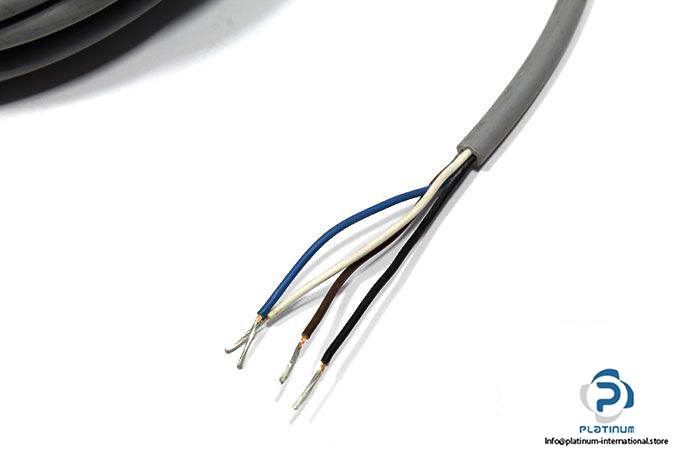

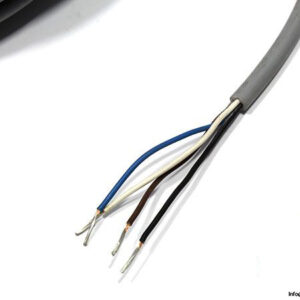

Electrical Connection: Cable outlet 5m, 4-wire, PVC

Process Connection: [5] G 1/2 A ISO 228-1 for reverse assembly (in-shell thread) (T10)

Process connection material: Stainless Steel 1.4301 – AISI 304

Output Configuration:  PNP output

Measuring principle: CleverLevel level switches (Frequency Sweep)

Media characteristics: DC > 1.5

Wetted parts material:

PEEK Natura

AISI 316L (1.4404)

AISI 304 (1.4301), optional

Weight: 0.24 kg
