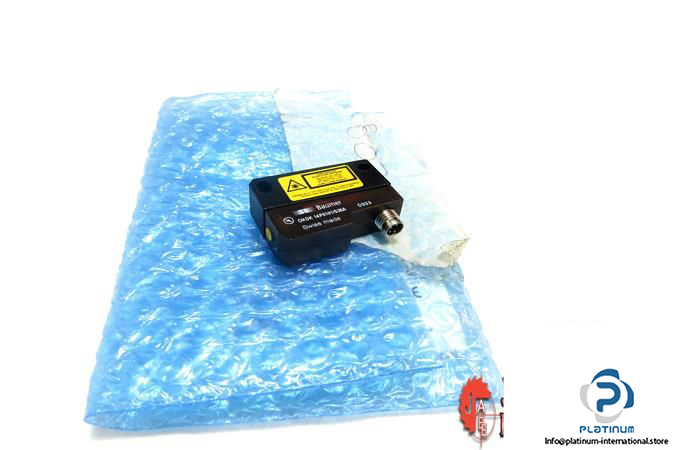

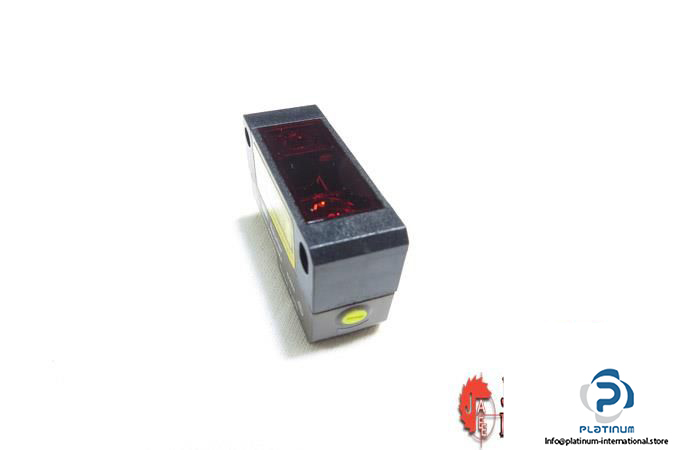

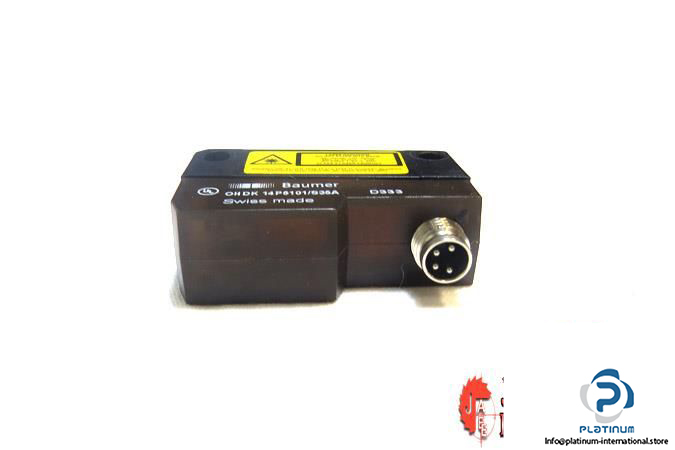

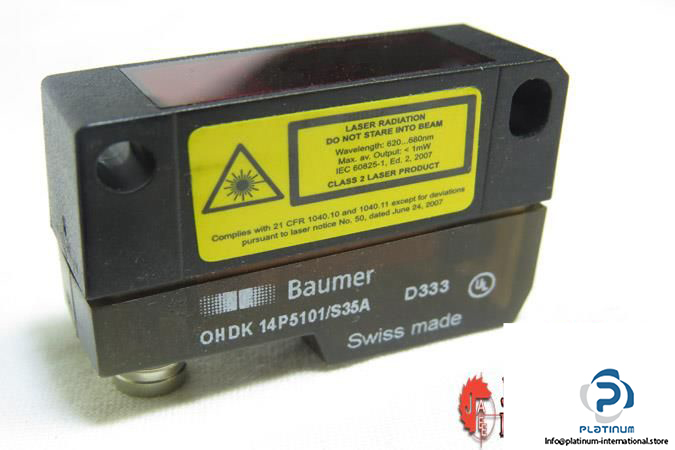

Manufacturer: BAUMER

Type: Diffuse Laser Sensor

Model: OHDK 14P5101/S35A

Detection principle: background suppression

Voltage supply range Vs: 10…30V DC

Current consumption: max. 35 mA

Output current: < 100 mA
Output: PNP

Distance: 20 … 350 mm

Beam focal point: 115 mm

Operating temperature: -10 … +50 °C

Sensing range Tb (at Tw max.): 20 … 350 mm

Sensing range Tb (at Tw min.): 5 … 20 mm

Laser class: 2

Wave length: 650 nm

Connection: M8 connector 4 pin

Housing type: rectangular

Protection: IP67

Condition: New
