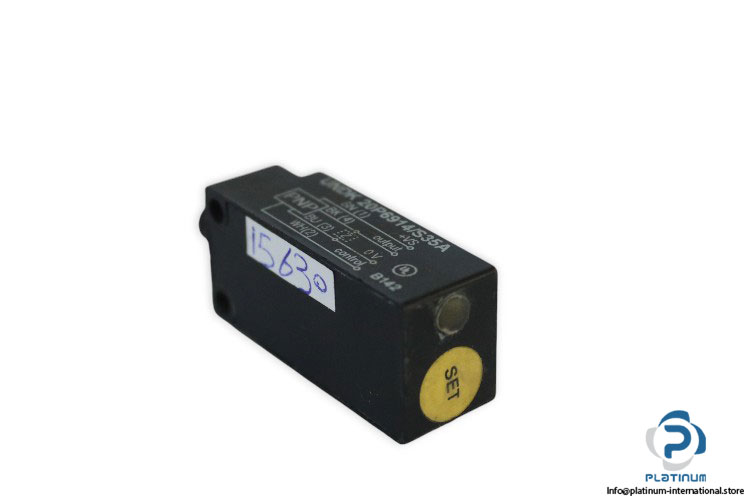

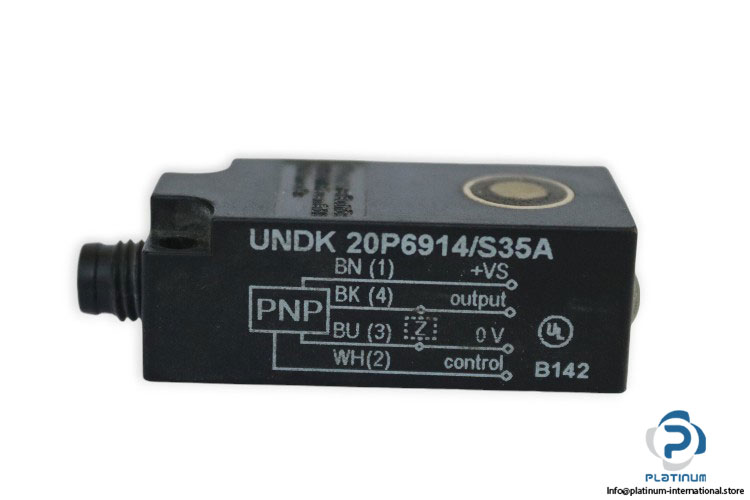

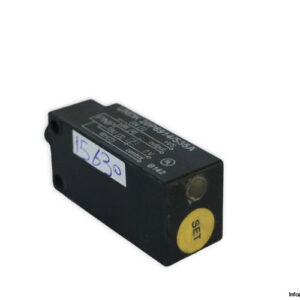

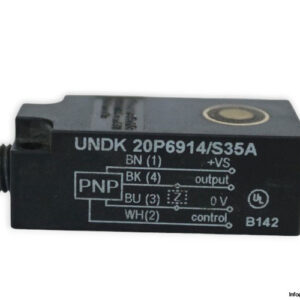

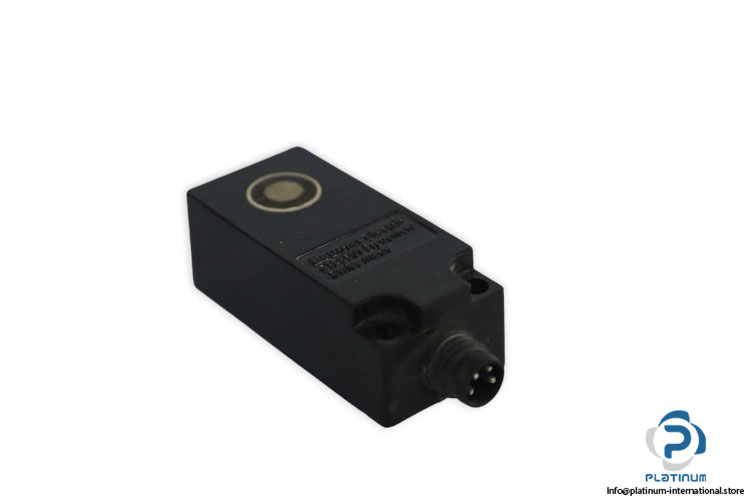

Manufacturer: BAUMER

Type:  Ultrasonic proximity sensor

Model: UNDK 20P6914/S35A

Scanning Range Sd: 10 … 200 mm

Voltage Supply Range: +Vs 12 … 30 VDC

Current Consumption Max. (No Load): 35 mA

Output Type: PNP

Switching Output: Normally Open (NO)

Sonic Frequency: 380 kHz

Adjustment: Teach-In

Output Indicator: LED green

Connection Types: Connector M8 4-PIN

Dimensions: 20 x 42 x 15 mm

Housing Material: Polyester

Operating Temperature: 10 … +60 °C

Protection Class: IP67

Housing: Rectangular
