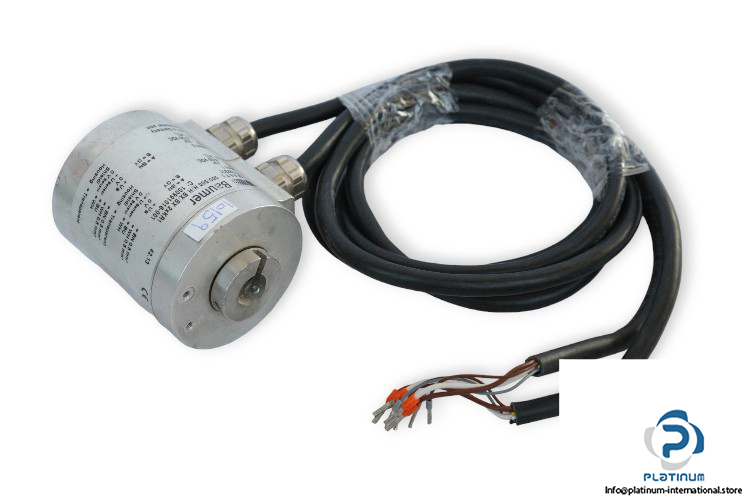

BAUMER ITD 28 A4 Y1 500/500 H/H BX/BX 2XKR1 INCREMENTAL ENCODER
The Baumer ITD 28 A4 Y1 incremental encoder is a robust and high-precision solution for motion control and positioning tasks. With a compact 58 mm design, dual-system configuration, and HTL push-pull output, it is ideal for demanding industrial automation applications.
Manufacturer: Baumer
Type: Incremental Encoder

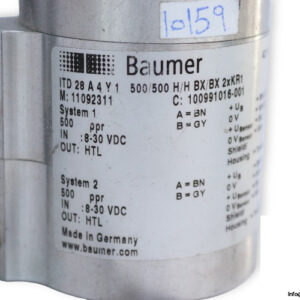

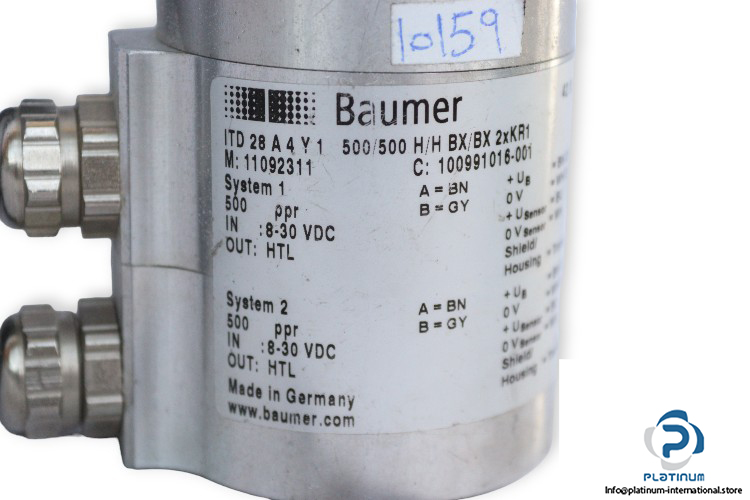

Model: ITD 28 A4 Y1 500/500 H/H BX/BX 2XKR1
M: 11092311
C: 100991016-001
Technical Information
- System 1: 500 PPR, 8.30 V DC, HTL Push Pull
- System 2: 500 PPR, 8.30 V DC, HTL Push Pull
- Connection: Cable 1 m, Radial
- Shaft Type: Blind Hollow Shaft
- Shaft Size: 12 mm

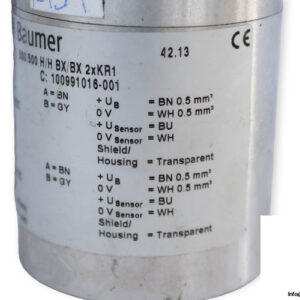

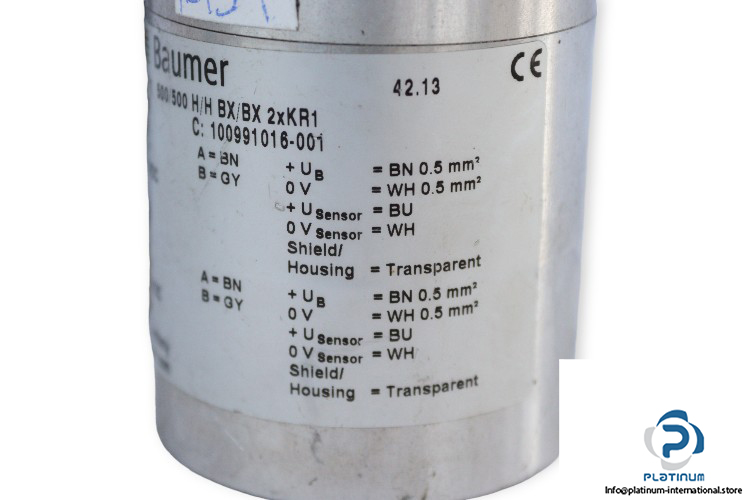

- Cable Connection: 2 Cables (4 Wires)
- Material – Housing: Aluminium
- Material – Shaft: Stainless Steel
- Size (Flange): Diameter 58 mm
- Operating Temperature: -20 / 70 °C
- Degree of Protection: IP65
- Dimensions: DIA 58 x 77 mm
