Manufacturer: Baumuller Nurnberg
Type: Servo Drive

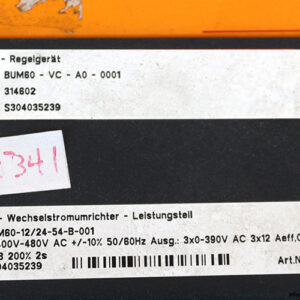

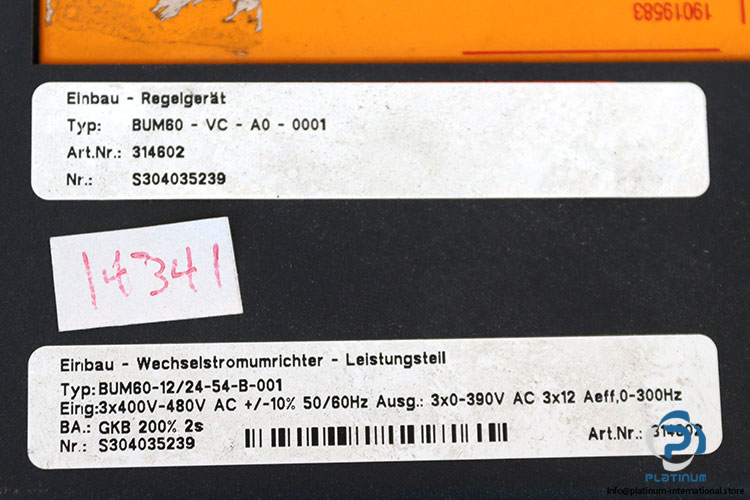

Model: BUM6012/2454B001
MNR: BUM60-VC-A0-0001
Part No.: 314602
Series: BUM60

Input:
Rated Voltage: 3-Phase/400 … 480 V AC
Rated Current: 16 A
Frequency: 50/60 Hz
DC Link Capacitor: 220 µF
Output:
Rated Voltage: 3-Phase/ 0 … 390 V AC
Rated Current: 12 Aeff
Frequency: 0 … 300 Hz
Typical motor power: 4.5 kW
Output Power: 8 Kva
Power Loss: 170 W
Max. switch-on time / ratio: 1.5 s / 1 : 33
Protection Class: IP20
Operation Temperature: 0 … 45 °C
Dimensions: 108 x 315 x 270 mm
