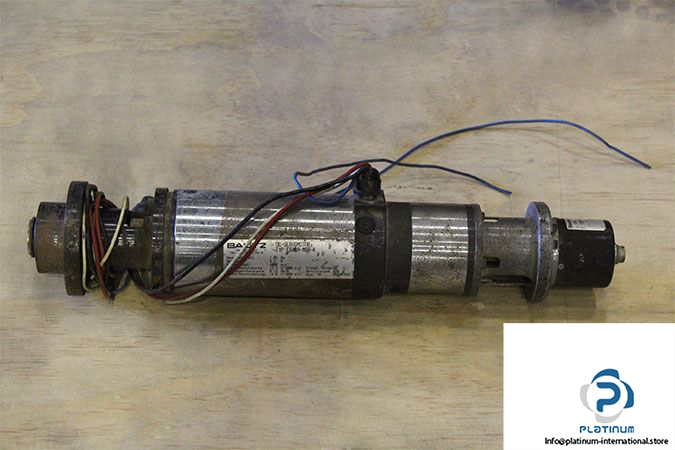

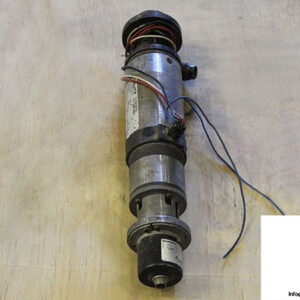

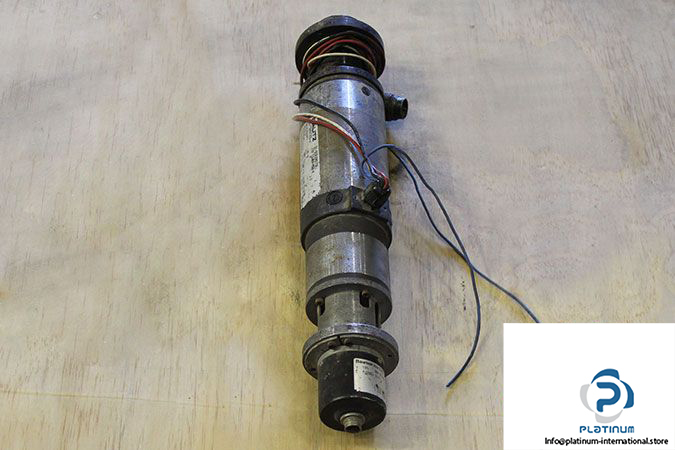

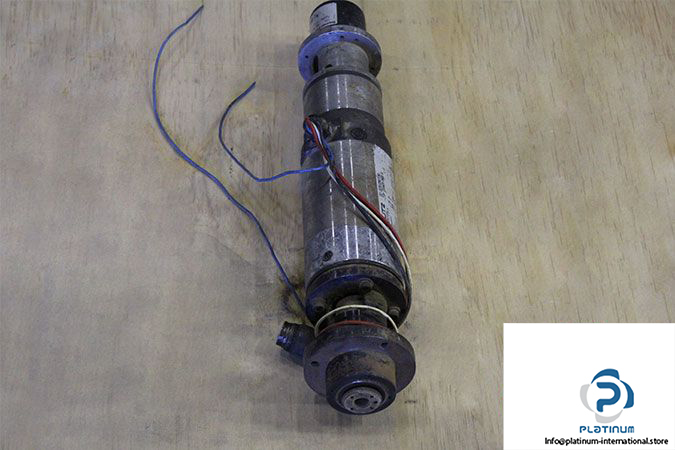

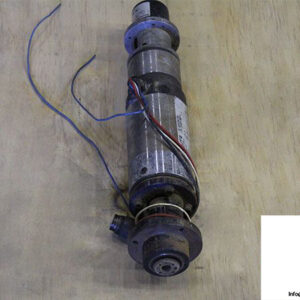

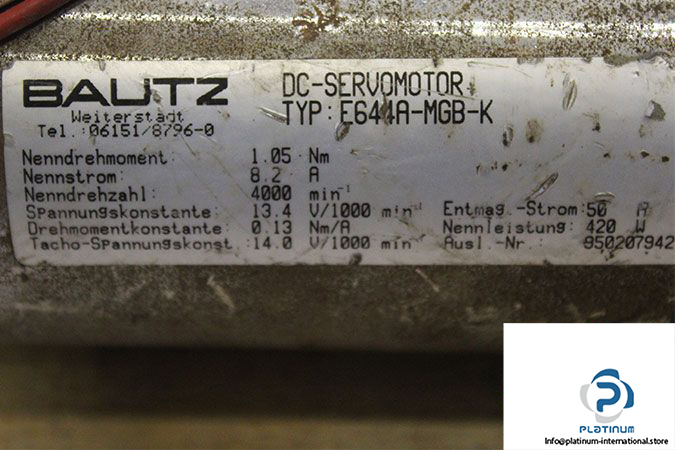

BAUTZ E644A-MGB-K SERVO MOTOR WITH BAUMER BDA 05.246 ENCODER

This robust and high-precision servo motor by Bautz is engineered for advanced motion control applications. Featuring integrated Baumer encoder for accurate feedback, it ensures superior performance in automated systems requiring high torque and speed stability.

Manufacturer: Bautz
Type: Servo Motor
Model: E644A-MGB-K
Ref No.: 050207942

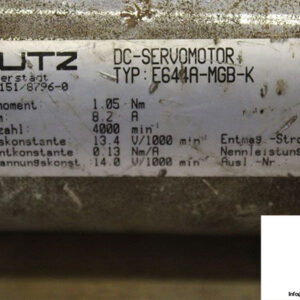

Technical Specifications

• Voltage Constant: 13.4 V/1000 min^-1
• Tacho Voltage Constant: 14 V/1000 min^-1
• Rated Current: 8.2 A
• Stall Current: 9.8 A
• Rated Speed: 4000 min^-1
• Max. Speed: 4500 min^-1
• Rated Power: 420 W
• Resistance Connection: 0.40 Ohm
• Resistance Winding: 0.25 Ohm
• Rated Torque: 1.05 Nm
• Stall Torque: 1.25 Nm
• Torque Constant: 0.13 Nm/A
• Moment of Inertia: 0.25 × 10^-3 kg·m²

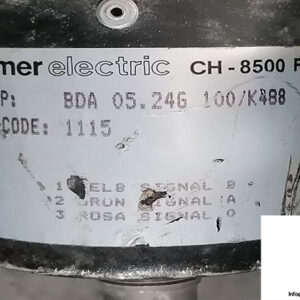

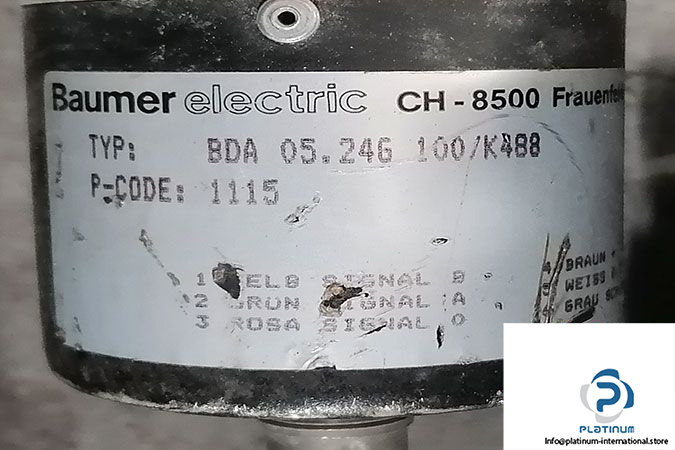

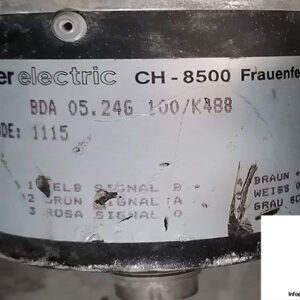

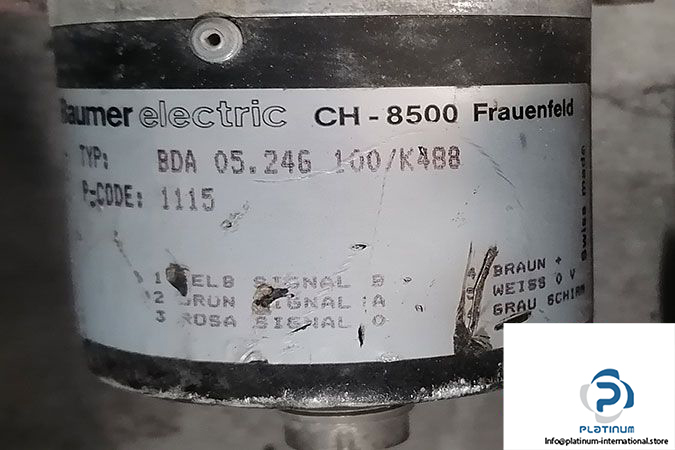

Encoder Attachment

Manufacturer: Baumer Electric
Type: Encoder
Model: BDA 05.246 100/K488
P-Code: 1115
