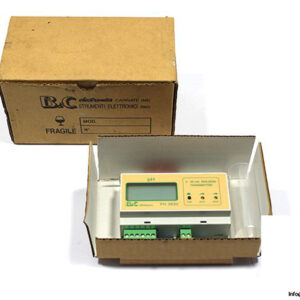

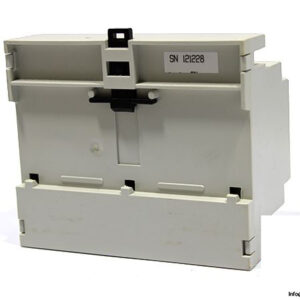

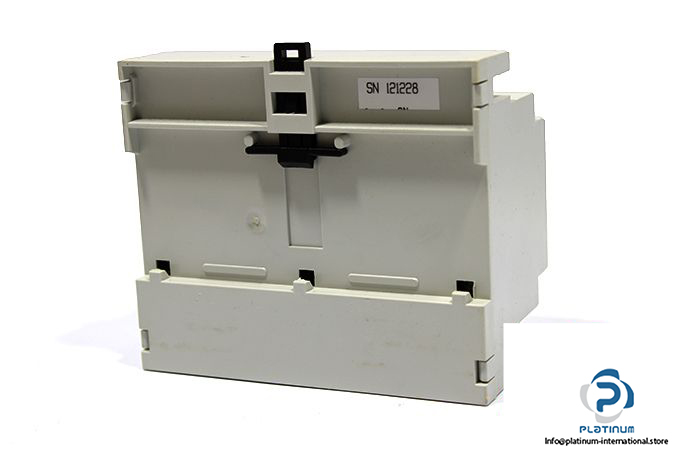

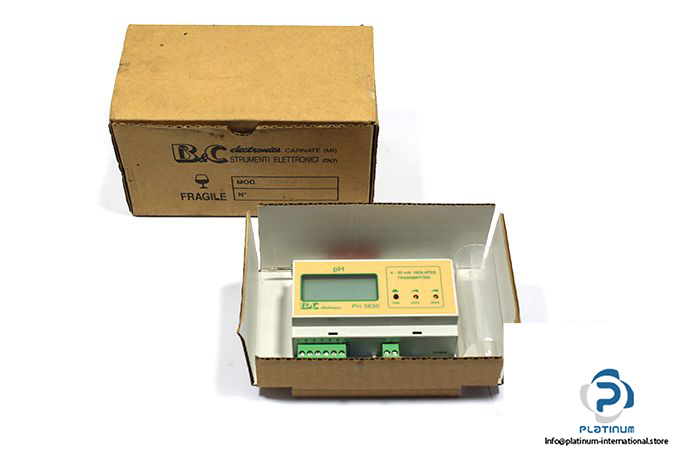

Manufacturer: B&C Electronics Srl

Type: Digital 2-wire transmitter

Model: PH 3630

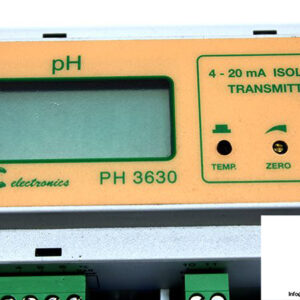

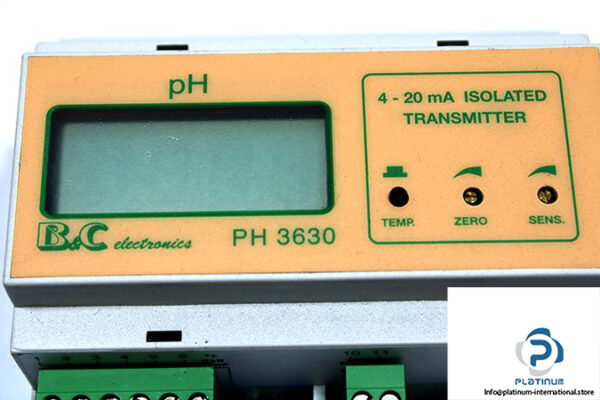

This transmitter, when connected to the pH electrode, provides a digital readout of the pH of aqueous solutions. The transmitter will perform manual or automatic Temperature compensation to correct pH readings for Temperature related variations. Temperature information is displayed by pushing button “2” marked “Temp”.

Inputs: pH electrode RTD Pt100 3 wires

Outputs: 4 … 20 mA DC isolated

Scales: 0.00/14.00 pH / -10.0/120.0 °C

Sensitivity (Span): adjustable from 86 % to 112 %

Input Current: < 2 pA
Operating Temp.: 0 … 50°

Weight: 0.3 kG
