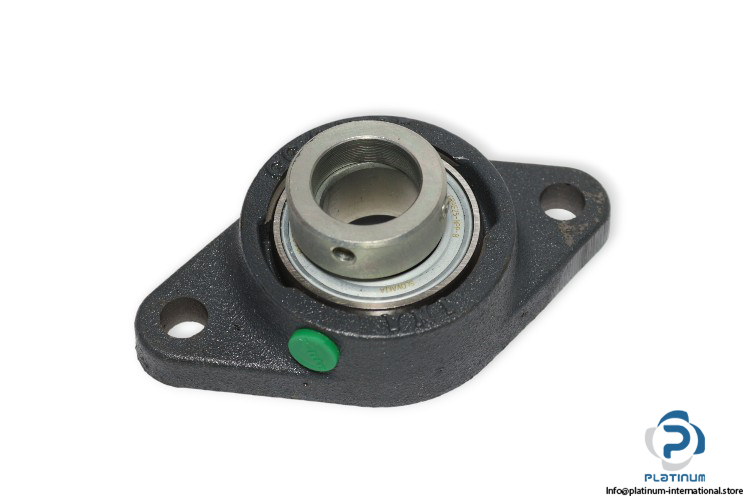

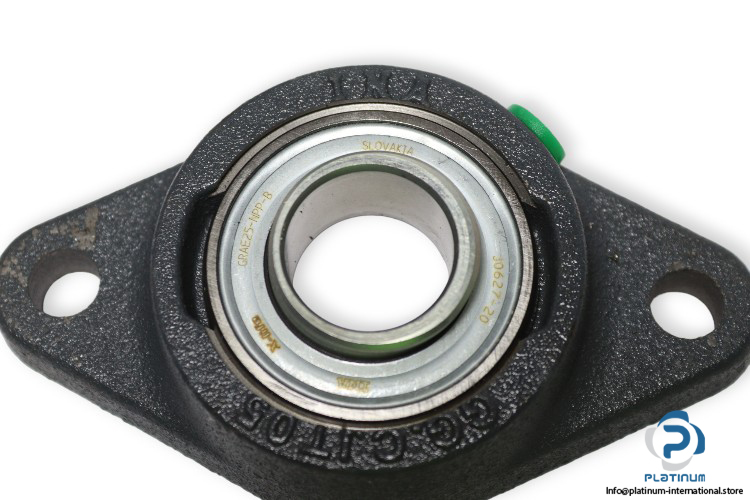

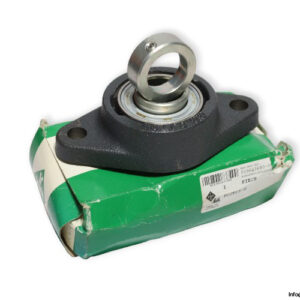

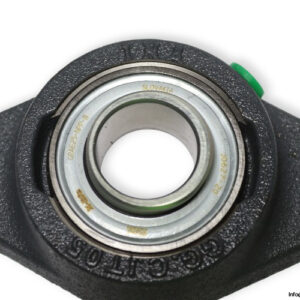

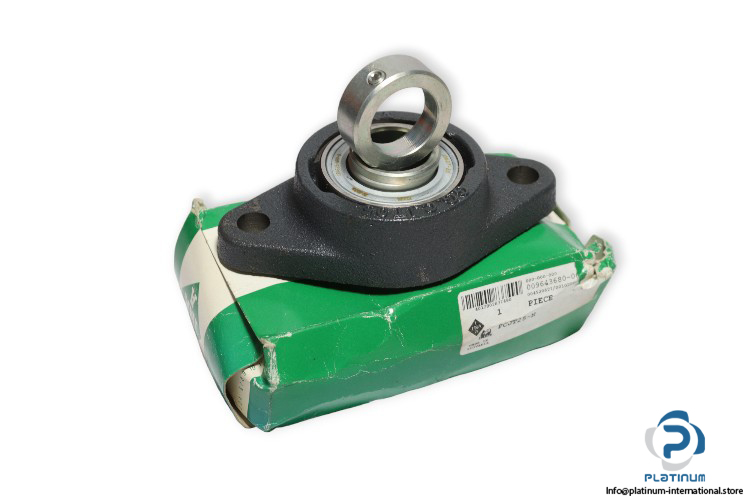

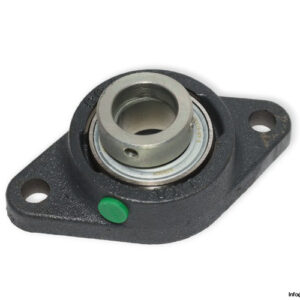

Manufacturer: INA
Type: Flanged Housing Unit

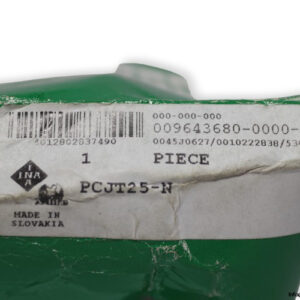

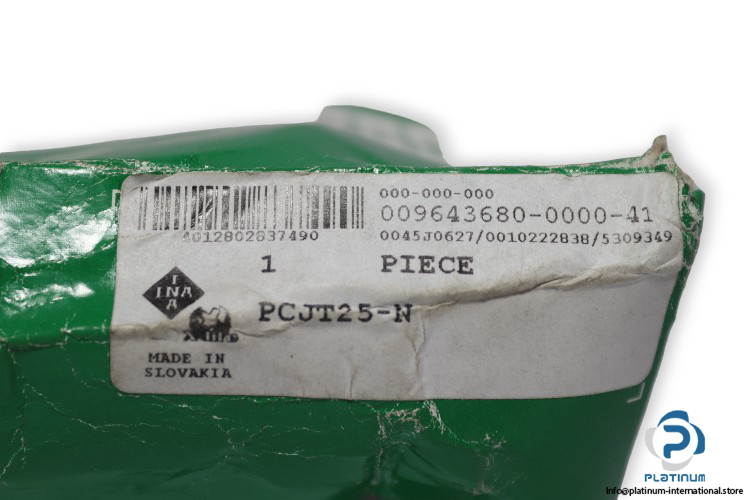

Model: PCJT25-N
Housing: GEHCJT05-GG-N
Bearing designation: GRAE25-XL-NPP-B

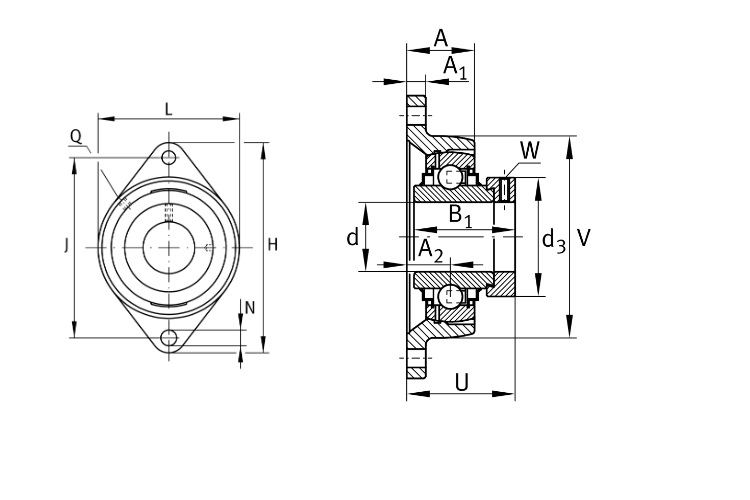

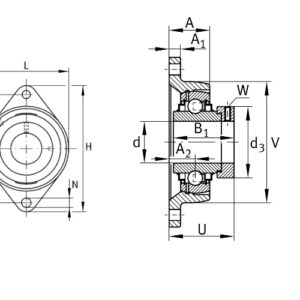

Bore Diameter d: 25 mm
Flange width L: 70 mm
Height flange H: 124 mm
Total height unit U: 42.5 mm
Distance fixing bore J: 99 mm
Fixing bore N: 11.5 mm
Basic dynamic load rating: 14900 N
Basic static load rating: 7800 N
Fatigue load limit: 370 N
Temperature range: -20 °C…100°C
Groove: N, Cast iron housing with undercut slot for end caps
Material: GG, Grey cast iron
Locking device: eccentric locking collar
